Exhaust Fire Damper Assembly
1. Remove grease lters.
2. Uncoil Stainless Steel cable attached at clip (A)
3. Thread end of cable from eyebolt at clip (A) going through eyebolt at clip (B), then thread through eyebolt
at clip (C).
4. Hold re damper in maximum open position to attach “S” hooks at point (D), close “S” hooks to secure.
5. For nal adjustment of re damper, tighten eye bolts at clips (A), (B) and (C) so that cable has no slack,
and assure maximum open position is obtained.
** (Access to re protection exhaust duct nozzle to be provided by others)

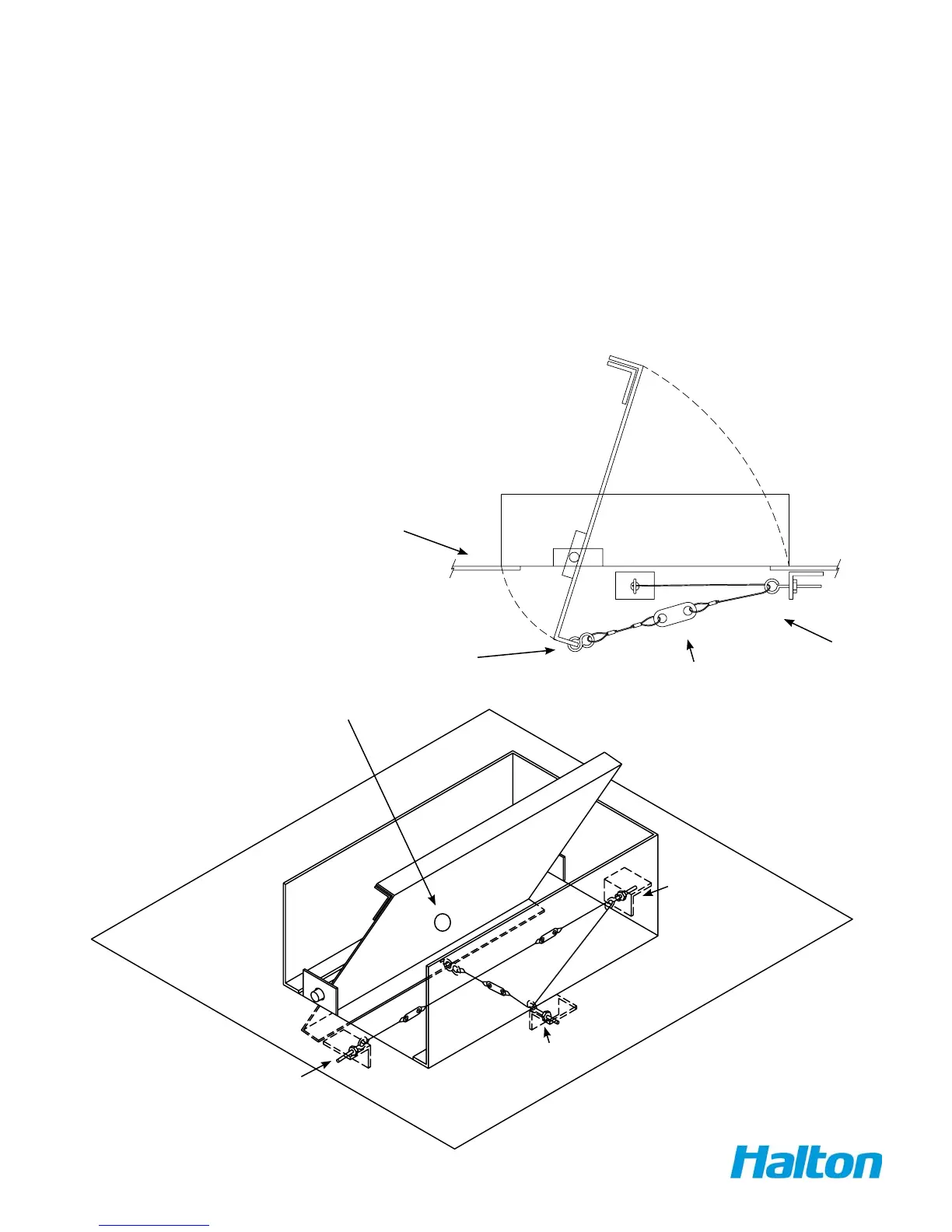

Fusable Link
Eye bolt
Clip (A)
Clip (C)
Clip (B)
D
Optional in Models : KVE / KVC
**Located in below detail
as (D).
Secure “S” hook to damper
as shown.
The collar is supported
by a 1/2” ange located
on the inside perimeter
of the damper.
