Halton KVE-WW - Closure Panel Assembly

9
Capture Jet
®
Water Wash
Operation & Maintenance & Service Manual
CJOWWM/012009/rev1/EN

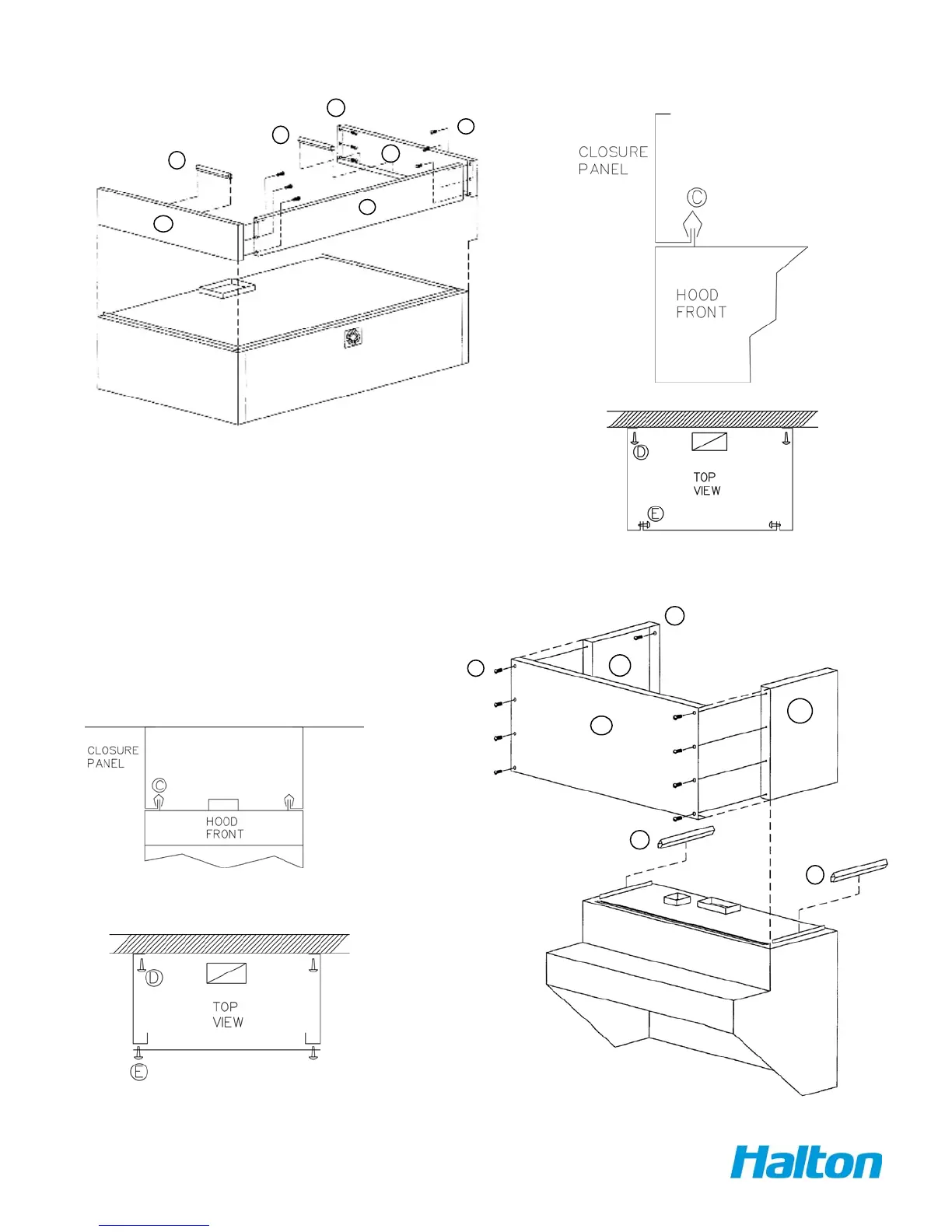

Installation Notes:
1) Panels “A” and “B” are to set on top of the hood perimeter.
*Vertical ange at the bottom of closure panel and vertical
ange on top of hood should line up.
2) Hammer clips “C” over the two vertical anges.
3) Attach panels “B” to wall using appropriate hardware “D”.
4) Slide front panel “A” into place.
5) Attach panels “A” and “B” together using hardware “E”
*(Hardware not provided by Halton)
B
B
A
C
C
C
C
B
A
B
D
D
Closure Panel Assembly
E
E
