Halton KVE-WW - Splice Strip; U-Channel Assemblies

8
Capture Jet
®
Water Wash
Operation & Maintenance & Service Manual
CJOWWM/012009/rev1/EN

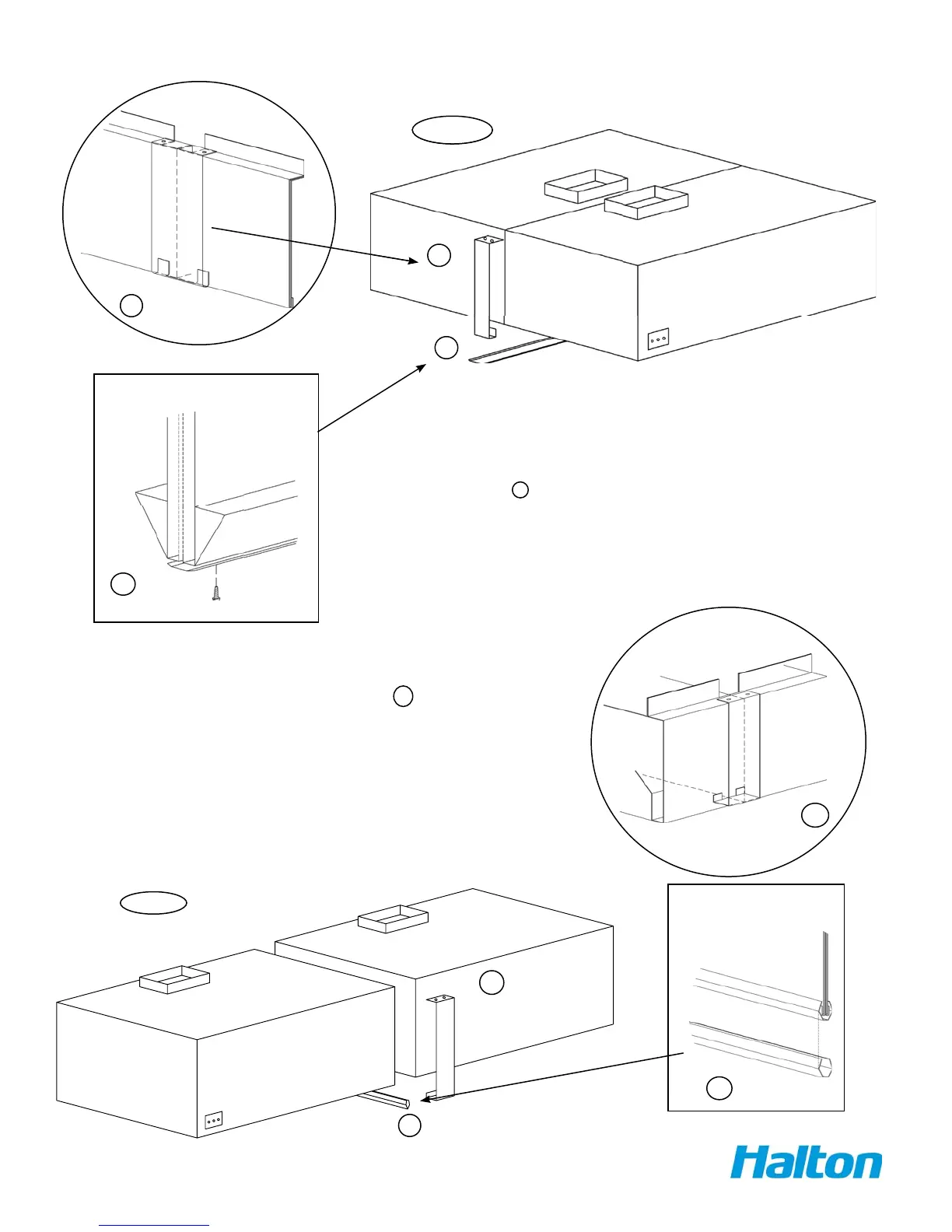

Splice Strip / U-Channel Assemblies
U-Channel
A
B
Splice Strip:
For hoods placed back to back: Slide Splice Strip B over bottom of hoods
 rst, then over top, secure by welding together.
For hoods placed end to end: Slide over bottom front edge  rst then over
top, secure by welding together, or as an option using screws for models with
supply plenum.
U-Channel:
For hood models that are placed back to back (as shown in Fig. 1):
Slide the U-Channel A up over the back of the hood systems, and secure
with sheet metal screws.
For hood models that are placed end to end (as shown in Fig. 2):
Pry apart the U-Channel at one end and slide over the end panels, fastening
in place,  tting around the perimeter of the hood systems.
Installation Notes:
B
Splice Strip
Splice Strip
Hoods shown end to end
Hoods shown back to back
B
A
U-Channel
Fig. 2
A
B
Fig. 1
A
