Halton KVE-WW - Backsplash Installation Details; Insulated Backsplash Assembly Installation; Flat Sheet Backsplash Assembly Installation

5
Capture Jet
®
Water Wash
Operation & Maintenance & Service Manual
CJOWWM/012009/rev1/EN
Screw through top
of ange to wall.
*( screw head will not
interfere with hood)
Screw backsplash
to wall or attach with
adhesive.
Halton canopy
hoods should be
installed from 78”
min.- 84” max.
above the
nished oor.

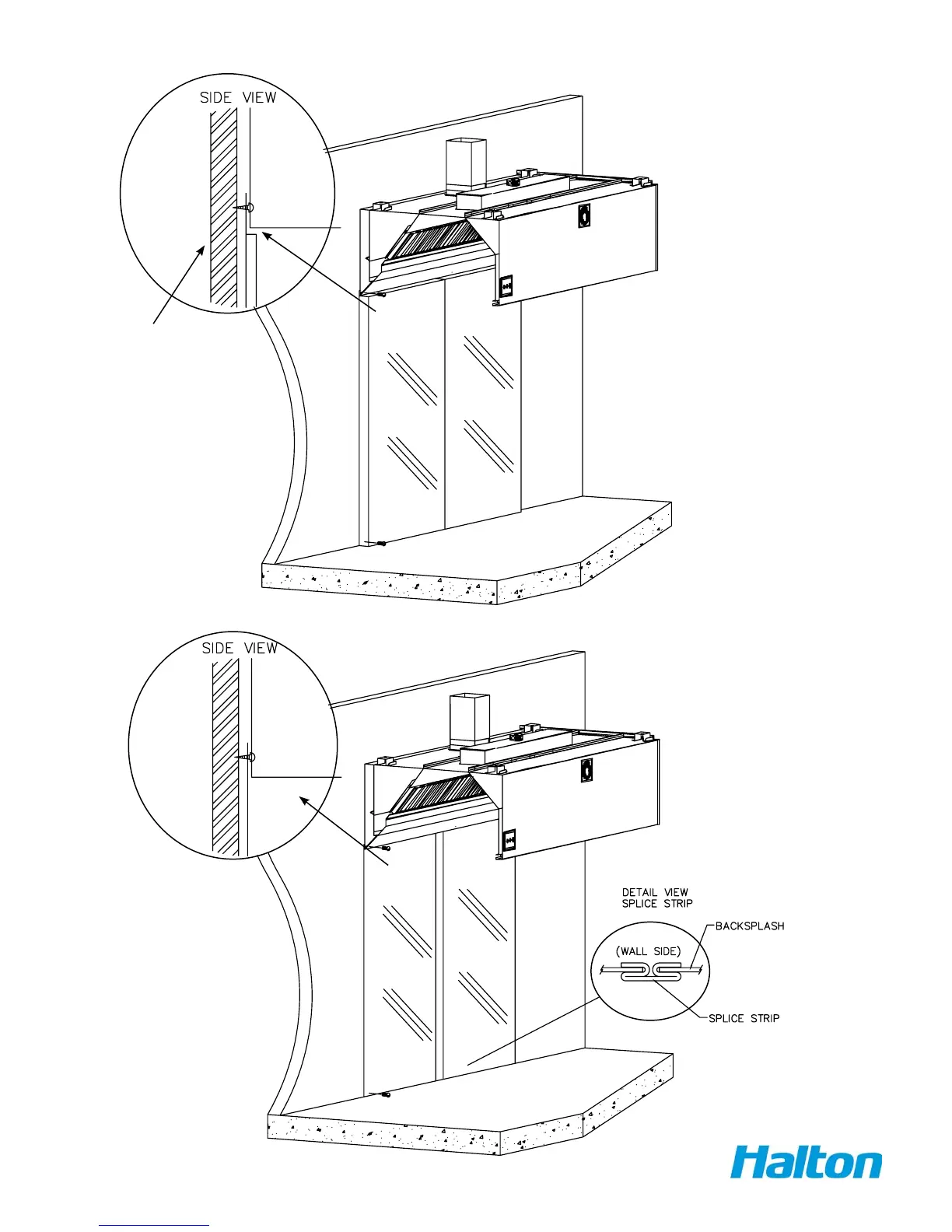

1” Insulated Backsplash Assembly
Flat Sheet Backsplash Assembly
