Capture Jet
®
Water Wash
Operation & Maintenance & Service Manual
CJOWWM/012009/rev1/EN

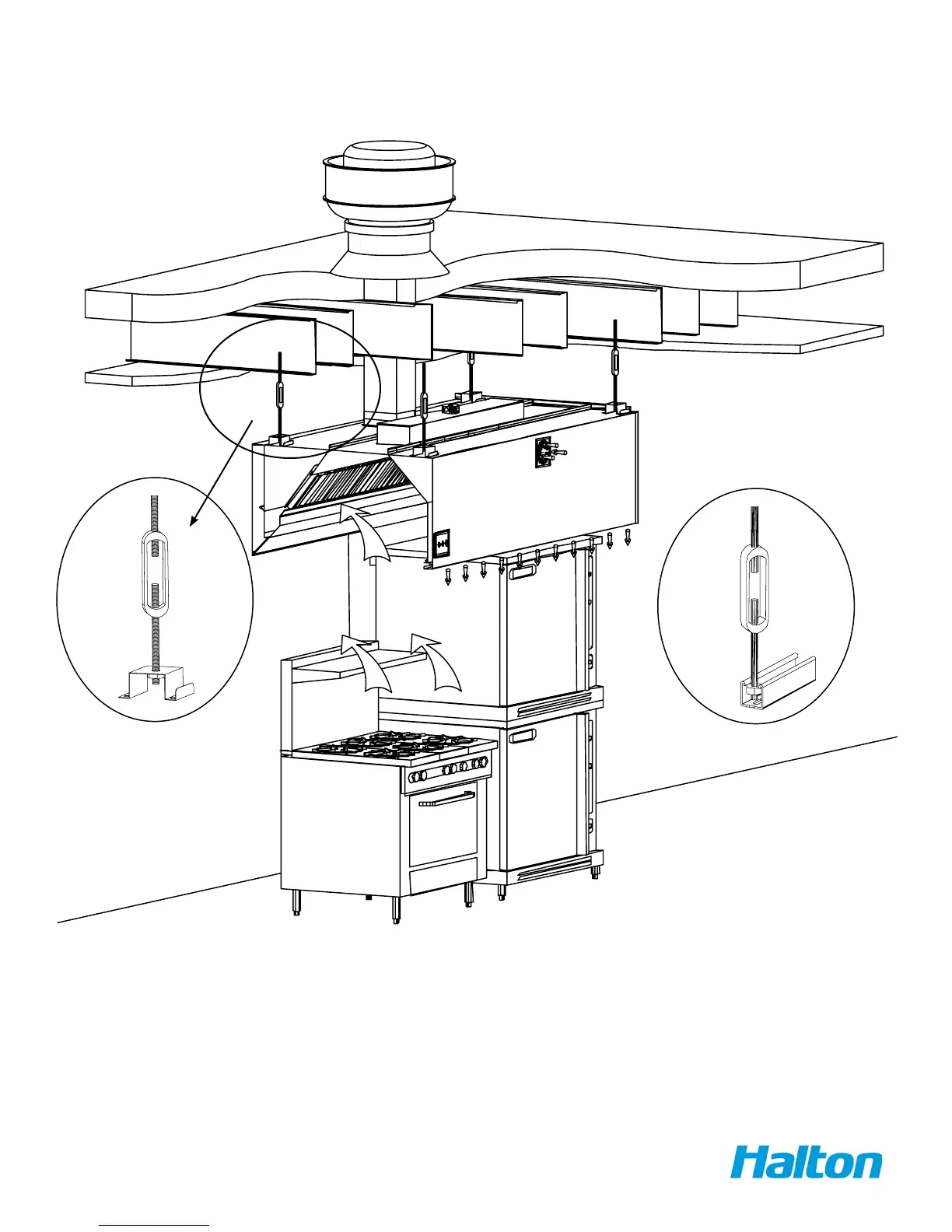

Typical Hood Installation Details
Hang the hood using 1/2” threaded rods by attaching the rods to the hood through the hanger brackets (as shown)
which are welded to the top of the hood, using the turnbuckles will make nal adjustments easier. Hanging height of
Canopy hoods should be per local building codes, verify with “Authority Having Jurisdiction” for hanging height
in your project location.
Standard hanging height is 78” minimum to 84” maximum above the nished oor.
Hanger Bracket / Turn
Buckle Detail -
Welded to top of hood.
18 ga. material All
Thread (By Others)
*Optional Unistrut / Turn
Buckle Detail
