OPERATION
28 © HAMM AG 2009
2.1.3 Description of elements
The positions identified with numbers corre-
spond to the numbering of the plates for oper-
ating elements, control devices and switches.
They are identical to the numbers of the indi-
vidual operating and control elements. In the
describing text, these position numbers are in
brackets. Among other things, this ensures that
important and additional information can be
found immediately and without difficulties in the
descriptions of the elements.

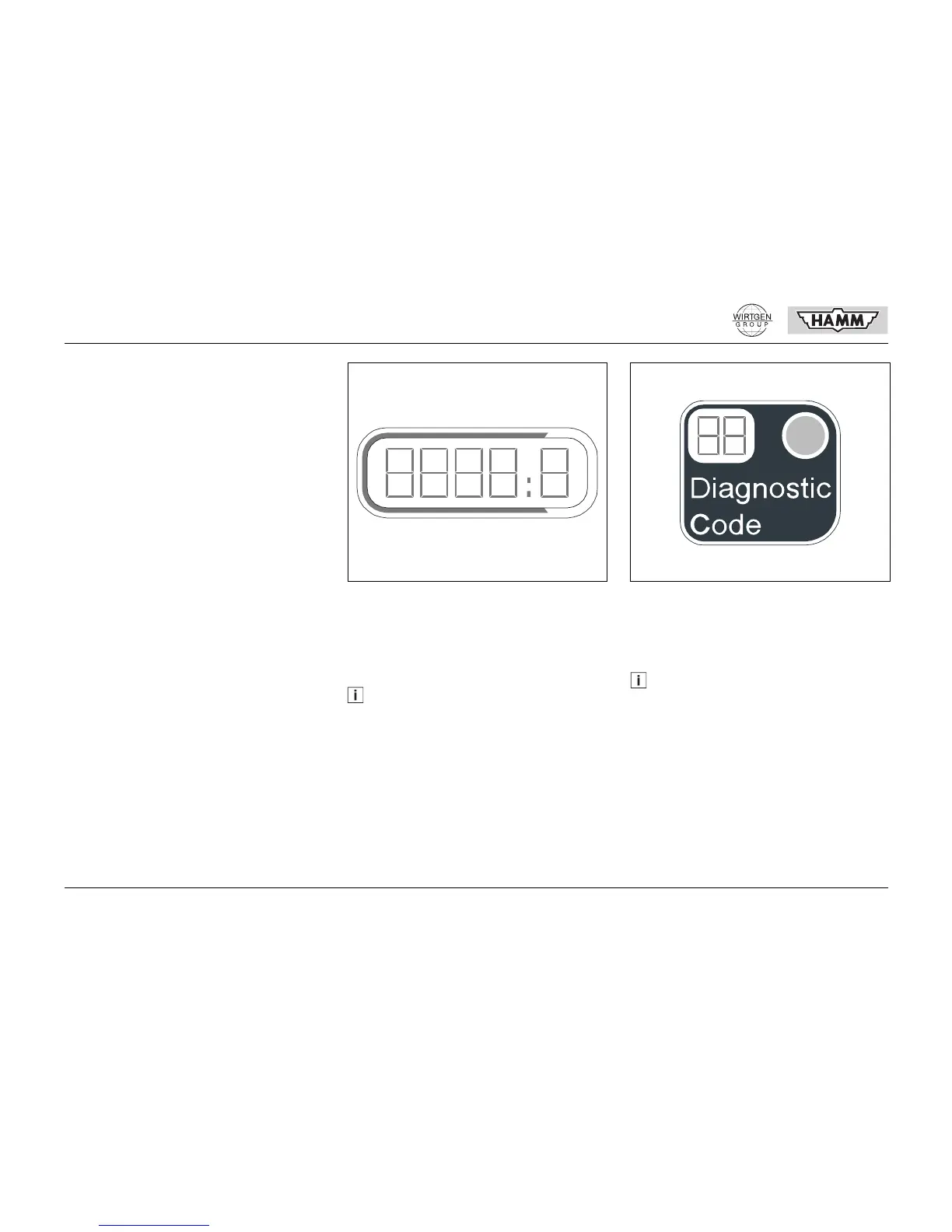

101 Operation hours counter display
Registers the operating hours of the running
diesel engine. Maintenance work has to be
carried out according to the accumulated oper-
ating hours.
118 Display of diagnostic code
During operation, machine malfunctions are
displayed by flashing indicators. A number
code identifies the corresponding malfunction.
After switching on the electric system, an
internal test code is displayed for 2 sec-
onds.
0101-102
1/10h
After switching on the electric system, an
internal test code is displayed for 2 sec-
onds.
See also section 4.1 Diagnostic Code in
the operating instructions.
0118-100
