© HAMM AG 2009 33
OPERATION

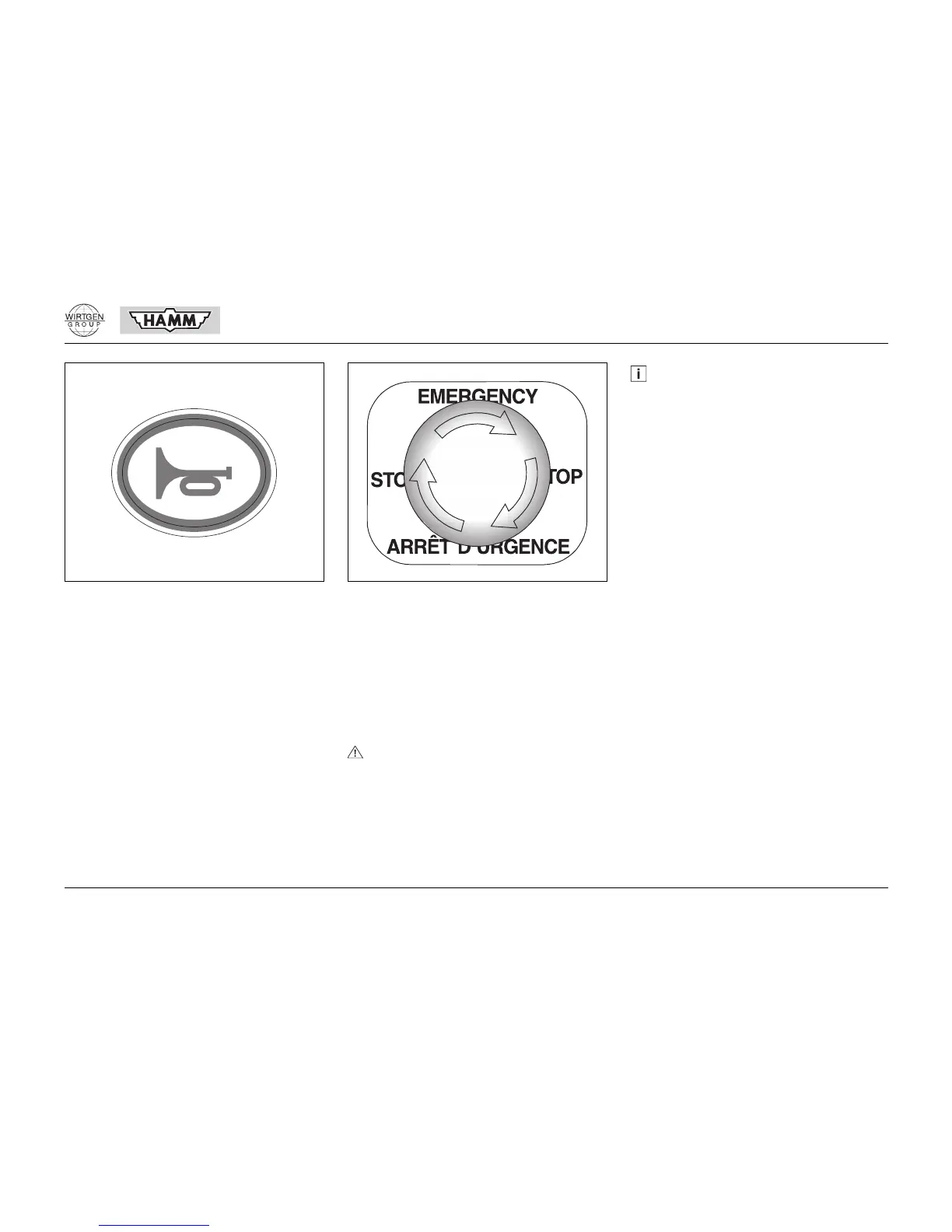

301 Signal horn pushbutton
The signal horn sound as long as this pushbut-
ton is pressed.
On........................................................PRESS
302 EMERGENCY STOP switch
(NOT-STOP)
When the EMERGENCY STOP switch (NOT-
STOP) is pressed, the hydraulic drive is
stopped, the vibration system is shut down, the
diesel engine is shut off, and the hydraulic
brakes are activated (illuminated indicators
(201, 202) active).
On.........................................................DOWN
To disengage the switch knob, turn it clock-
wise. The illuminated indicators remain active.
Off............................................................... UP
Initial position:
• Latch driving lever (501) in position 0.
• Switch off vibration with pushbutton (312)
(illuminated indicator (222) inactive).
• Release EMERGENCY STOP switch
(NOT-STOP).
• Start the diesel engine.
0301-102
Danger of injuries!
The roller stops immediately without any
delay!
Do not use the service brake!
0302-100
After actuating the EMERGENCY STOP
switch (NOT-STOP), the machine must be
brought to its initial position. If the engine
is started with the EMERGENCY STOP
switch (NOT-STOP) pressed, the engine
will not start for safety reasons.
