© HAMM AG 2009 51
OPERATION
Reestablish the hydrostatic drive power
train
• Screw in the Allen head screw until the
stop.
• Tighten the counternut.

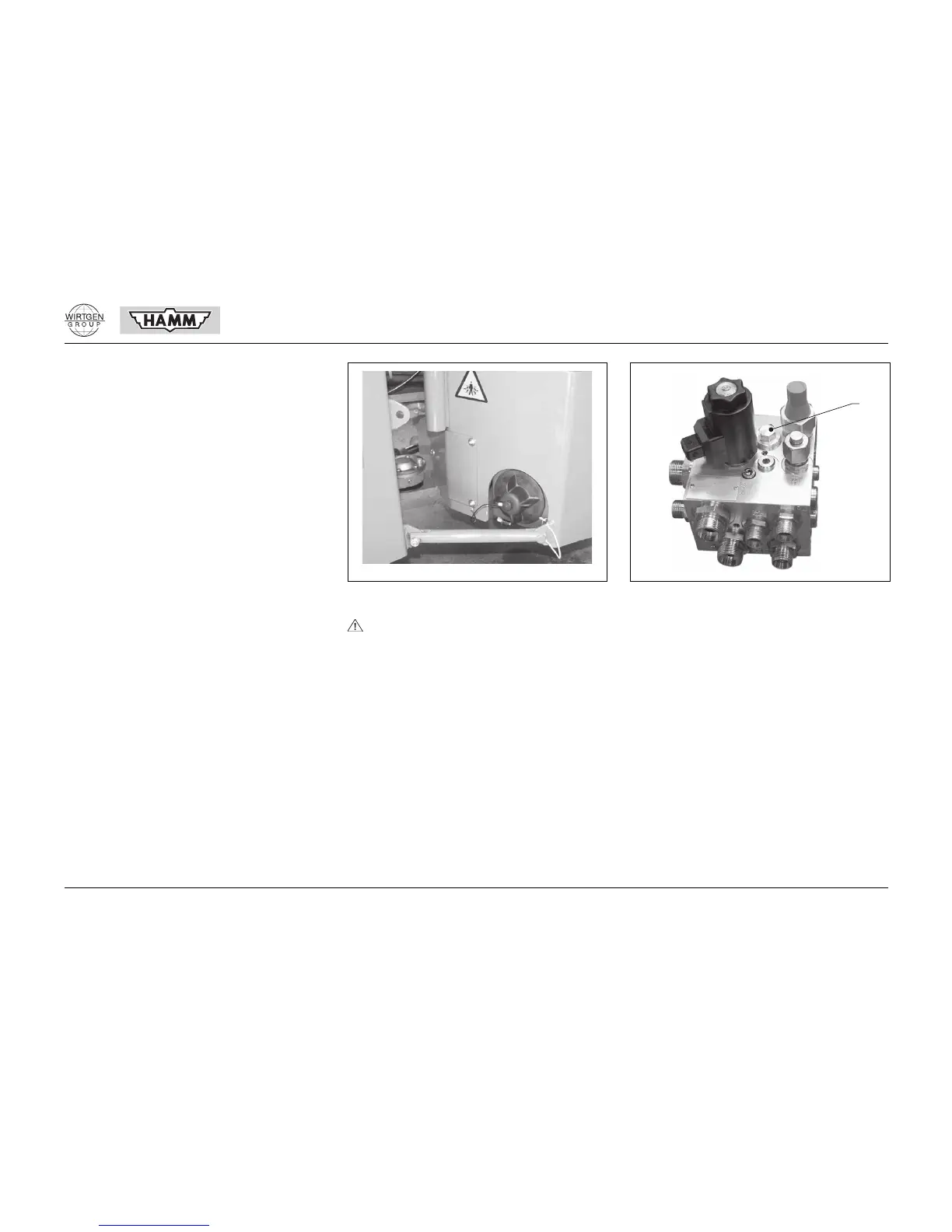

Making the parking brakes inoperational
• Apply the articulated frame steering block-
ing.
• Loosen screw A and screw out by hand
until a resistance can be noted (approxi-
mately 5 turns).
• Release the spring-operated brakes by
turning the steering wheel to the left until
increased turning power is required.
During towing, the spring-operated brakes
must be kept open by repeated releasing with
the steering wheel due to interior leaks.
Make parking brake operational
• Screw in screw A up to the valve seat
(max. 30 Nm).
• Release the articulated frame steering
blocking.
Danger of accidents!
The brake is out of function! The preten-
sioning power of the spring-operated
brakes may only be reduced for towing
purposes.
10085-10 15115-10
A
