HAMWORTHY HEATING LTD
26
FLEET V series
500001213/G

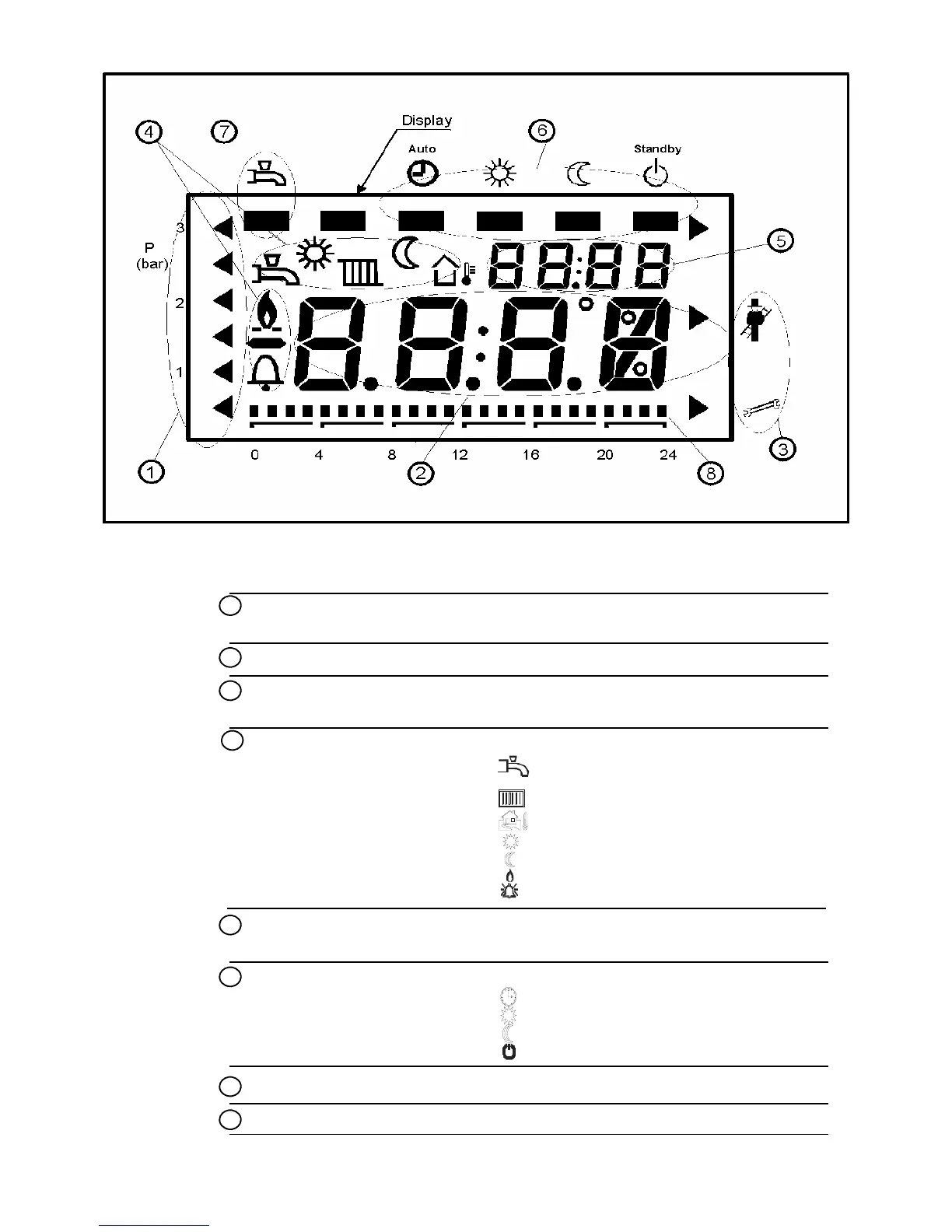

Figure 8.2.2 - Screen Legend
Character Display Function
1 Water pressure sensor signal Display of water pressure (6 pointers)
in increments of 10bar
2 Display (2) 4 x 7 large segments Display of current value
3 Maintenance indicator flashing Upper arrow - Chimney Sweep active
Lower arrow - Controller Stop active
4 Display symbols Meaning of symbols:
Display of dhw temperature or
dhw heating active – not used
Display of boiler or room temp. set-
point, or space heating active.
Display of outside temperature.
Operational level ‘Normal’
Operational level ‘Reduced’
Display of flame
Display of fault
5 Display (1) 4 x 7 small segments Display of time of day, parameter settings
or error code.
6 Operating mode of heating circuit Operating mode is, or changes to:
Automatic
Continuous ‘Normal’ operation
Continuous ‘Reduced’ operation
Standby
7 Operating mode of dhw. On or Off - not used
8 Time bar Display of time program of heating circuit
