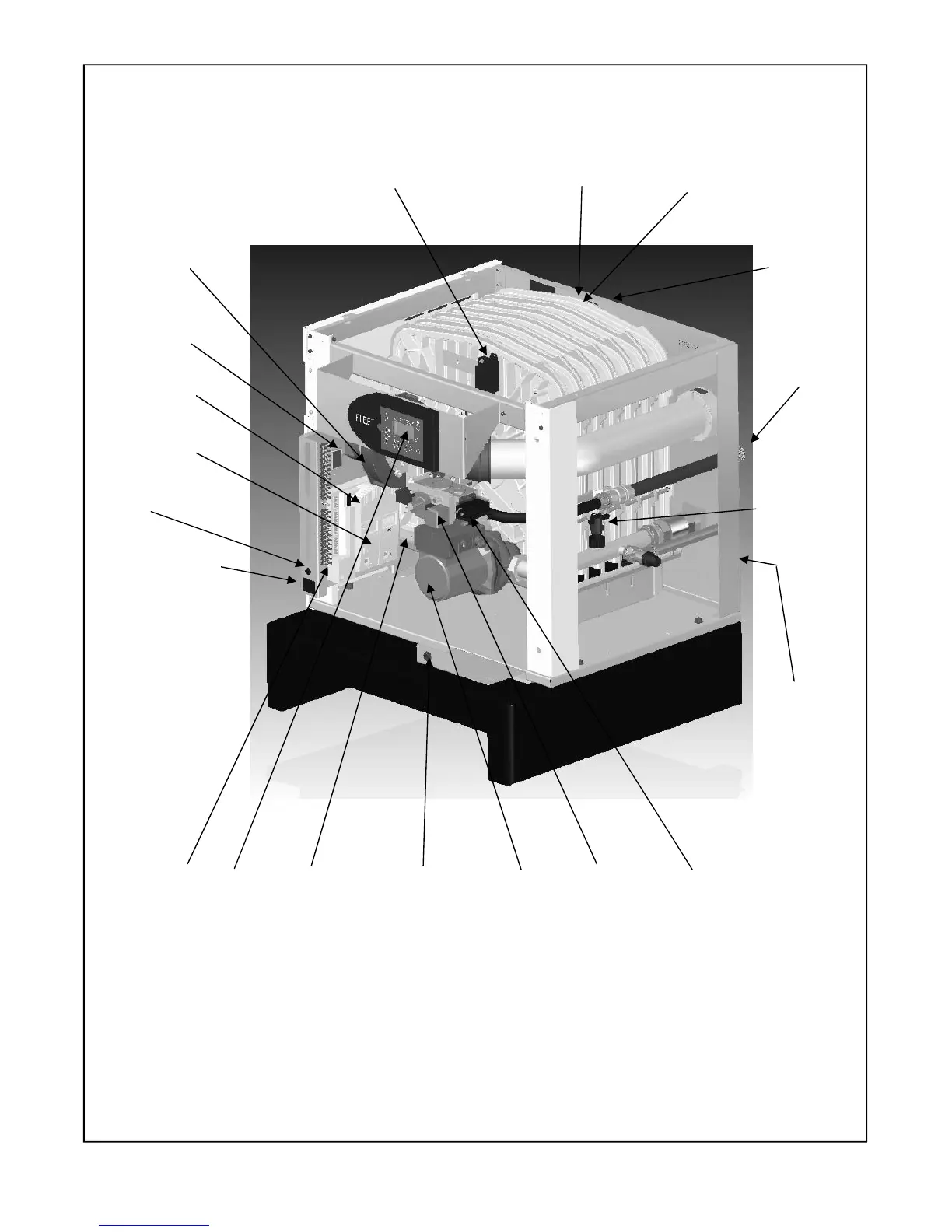

Figure 8.1.6 - General Overview of Boiler Controls
Low Gas
Pressure Switch
Overheat
Thermostat
HT Spark
Generator
Combustion Fan
Air Pressure
Switch
Fuse
Water Flow
Switch
230v Mains
Supply
IEC Mains
Outlet Socket
LMU Control
Clip in Module
Vfc / 0~10v
Display
Screen
On/Off switch
Flue Gas
Temperature
Sensor - in
flue elbow
Safety Relief
Valve
Pump
Gas Valve
Flow Temperature
Sensor
Return
Temperature
Sensor
