Hamworthy F85V - Figure C6.1 Flue Equivalent Lengths

HAMWORTHY HEATING LTD
49
FLEET V series 500001213/G

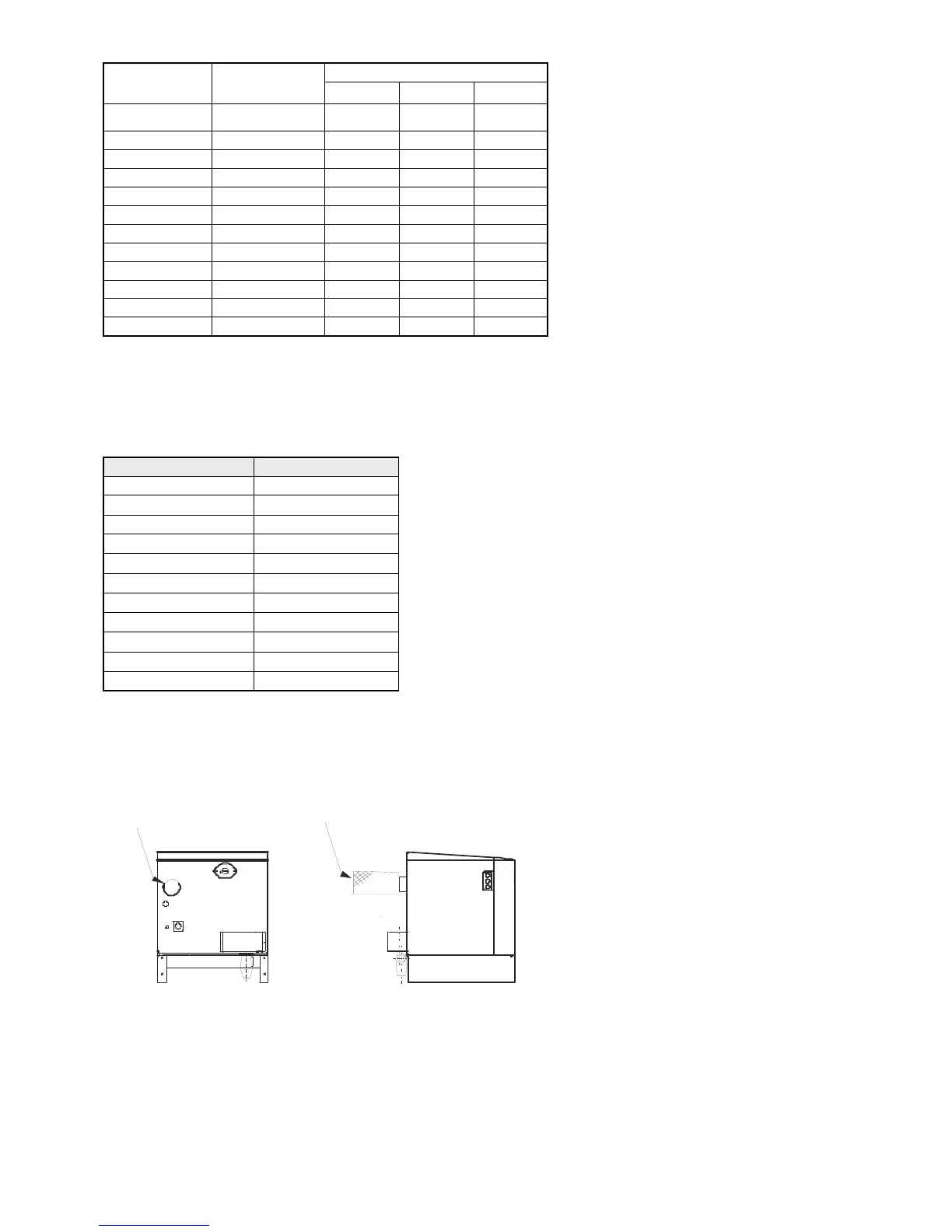

Figure C6.1 - Flue equivalent lengths
Flue Flue
Equivalentlengths(m)
LoadkW Diametermm MaxL 45° 90°
80 150 100 3 4
100 150 100 3 4
150 150 100 3 4
200 150 60 3 4
250 150 35 3 4
300 150 10 3 4
    
300 200 100 3 4
400
200 50 3 4
500 200 25 3 4
600 200 10 3 4
    
AccessoryDescripon
HHLPartno
Flatroofflashing 
150Ø 532511174
200Ø 532511175
Pitchedroofflashing 
150Øuniversal(25‐45°) 532511178
200Ø(23‐27°) 532511179
200Ø(33‐47°) 532511180
200Ø(48‐52°) 532511181
Fixingbrackets 
150Ø 532511033
200Ø 532511186
Figure C6.2 - Flue Accessories
NOTE : For all B23 flue installations, the HHL supplied air inlet filter (Pt. No. 532812008) MUST be fitted
Air inlet
Rear view Side view
B23 Air Filte
r
B23 air inlet filter installed
In the instance that a B53 flue (ducted air inlet) is connected to a cascade (B23 outlet), the air inlet filters need
not be fitted and therefore can be discarded.
