Hamworthy Stratton mk3 - Fitting Header Kit Assembly

11
80-150 kW Frame & Header Kits Manual

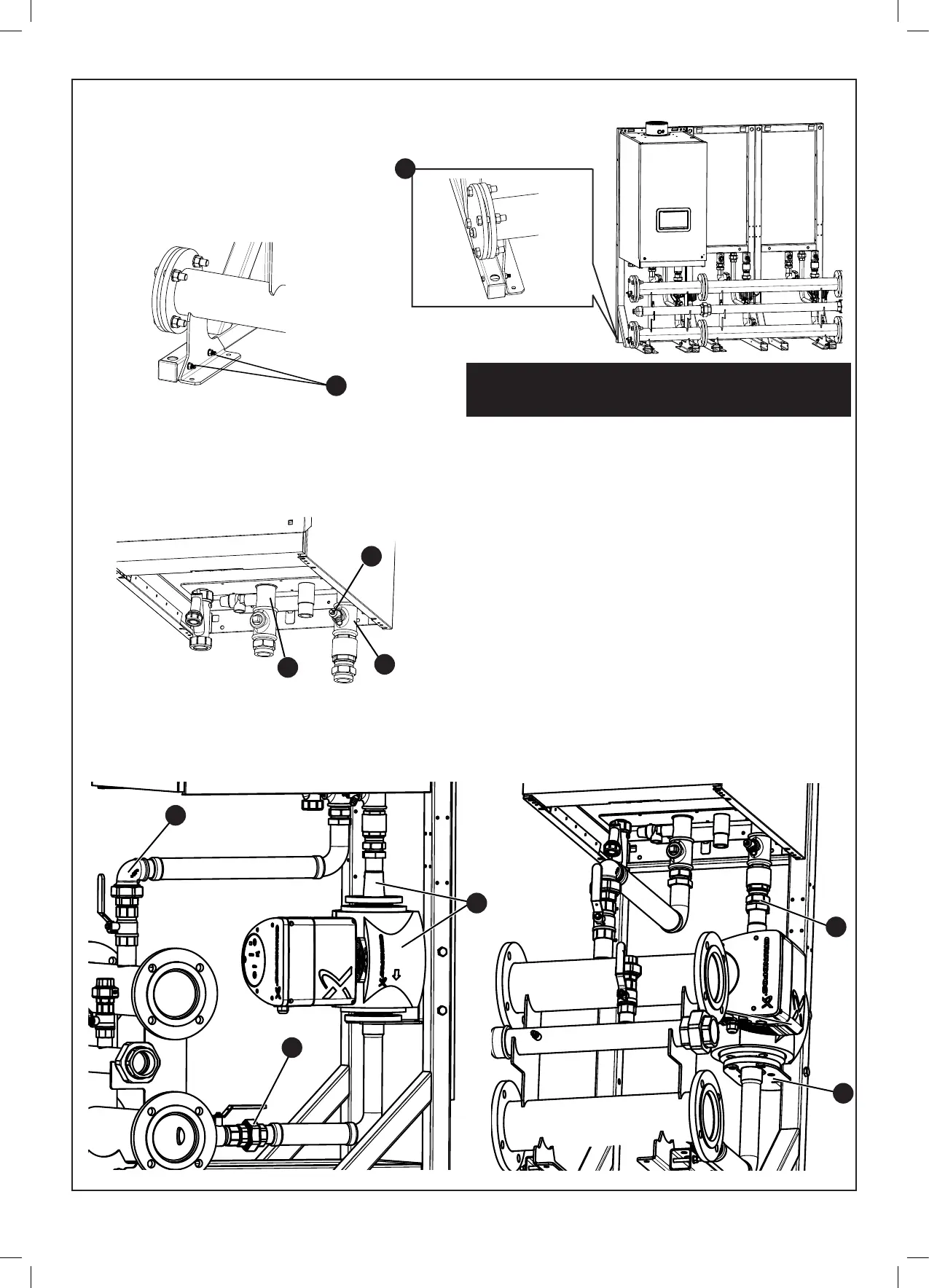

5.2 FITTING HEADER KIT ASSEMBLY (Steps 1 thru 5 are applicable to Magna 1 and UPMXXL)
2. Screw the header feet to the frame feet with
the bolts, nuts and washers provided – Do not
tighten fully.
3. Connect the pump assembly to the boiler return
connection using suitable jointing compound. Ensure
orientation of the tee is appropriate for draining.
4. Connect the ow assembly to boiler ow connection
using suitable jointing compound.
5. Fit drain valve into the ½” outlet of the tee on the
return connection. Note this must be tted after the
tee is tted to the boiler.
1. Slide the header kit assembly between the
frame legs but do not screw the header kit to
the frame at this stage.
2
3
5
4
6. Fit the Pump Adapter to the top side of the pump
connection using the bolts and gaskets provided as a sub
assembly.
7. Fit the pump and adapter to the boiler return connection
using the sealing washers provided.
8. Fit the pump support plate to the frame and return hose,
ensuring the support plate is on the underside of the ange
then bolt to the pump ange.
9. Screw Return Hose into the return Mac Union using a
suitable sealing compound and tighten the Mac Union.
10. Fit the hose into the elbow on the ow connection then Fit
the ow exible header connection to the ow connection
using the sealing washers provided.
11. Tighten header feet to frame feet bolts. Tighten bolts refer
to step 2.
MAGNA 1 Continued...
Magna 1 shown, UPMXXL similar
(see next frame)
Magna 1 shown, UPMXXL similar (see next frame)
1
FOR UPMXXL DO STEPS 6, 7 AND 8 SHOWN
ON NEXT PAGE (UPMXXL INSTRUCTIONS)
6
9
8
10
7
