80-150 kW Frame & Header Kits Manual
4 FRAME KIT INSTALLATION PROCEDURE
4.1 SIDE BY SIDE FRAME KIT MOUNTING PROCEDURE

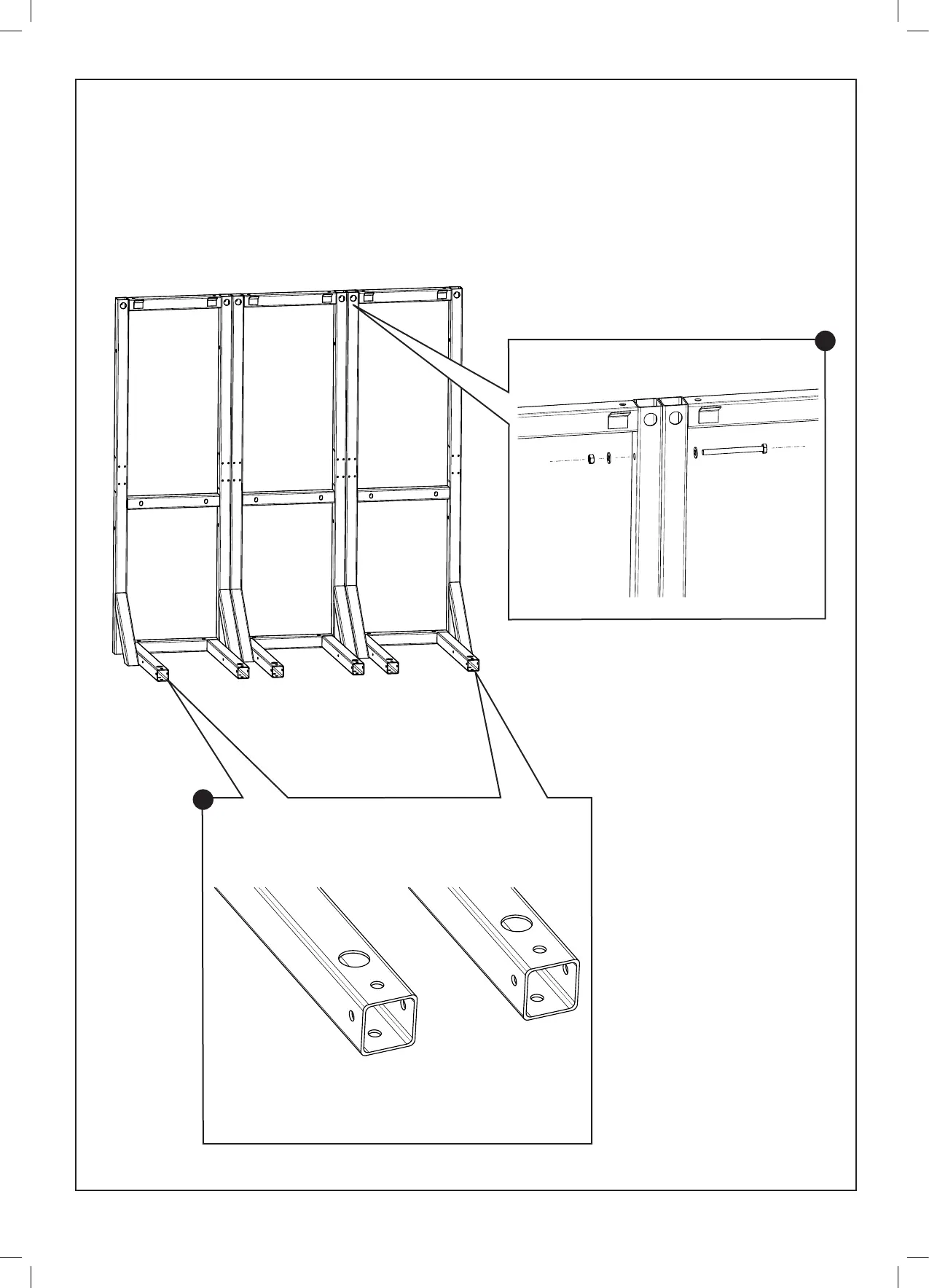

1. Place the frame kit sections in the required position and bolt them together at the top and bottom with the bolts, nuts and
washers provided.
IMPORTANT: MOUNTING FRAME MUST BE SECURED TO THE FLOOR WITH BOLTS
2. Remove the plastic foot covers and
drill the oor in order to oor bolt
the frame assembly to its required
location. (Bolts not supplied in kit)
2
1
