Hamworthy Stratton mk3 - General Description of Systems

3
80-150 kW Frame & Header Kits Manual
1 INTRODUCTION
This technical data contains information for dimensioning & assembly
of a cascade system kit for the Stratton mk3.
Frame and header kits are available 'in line' congurations only.
GENERAL DESCRIPTION OF FRAME & HEADER KITS
A requirement to spread the total required heat output over several
boilers can be accommodated by the use of the Hamworthy multiple
boiler frame & header kit options.
All headers and pipe work should be insulated in accordance
with the Non Domestic Building Services Compliance Guide. To
ensure compliance with the maximum heat loss criteria, insulation
thickness should be calculated according to BS EN ISO 12241 using
standardised assumptions.

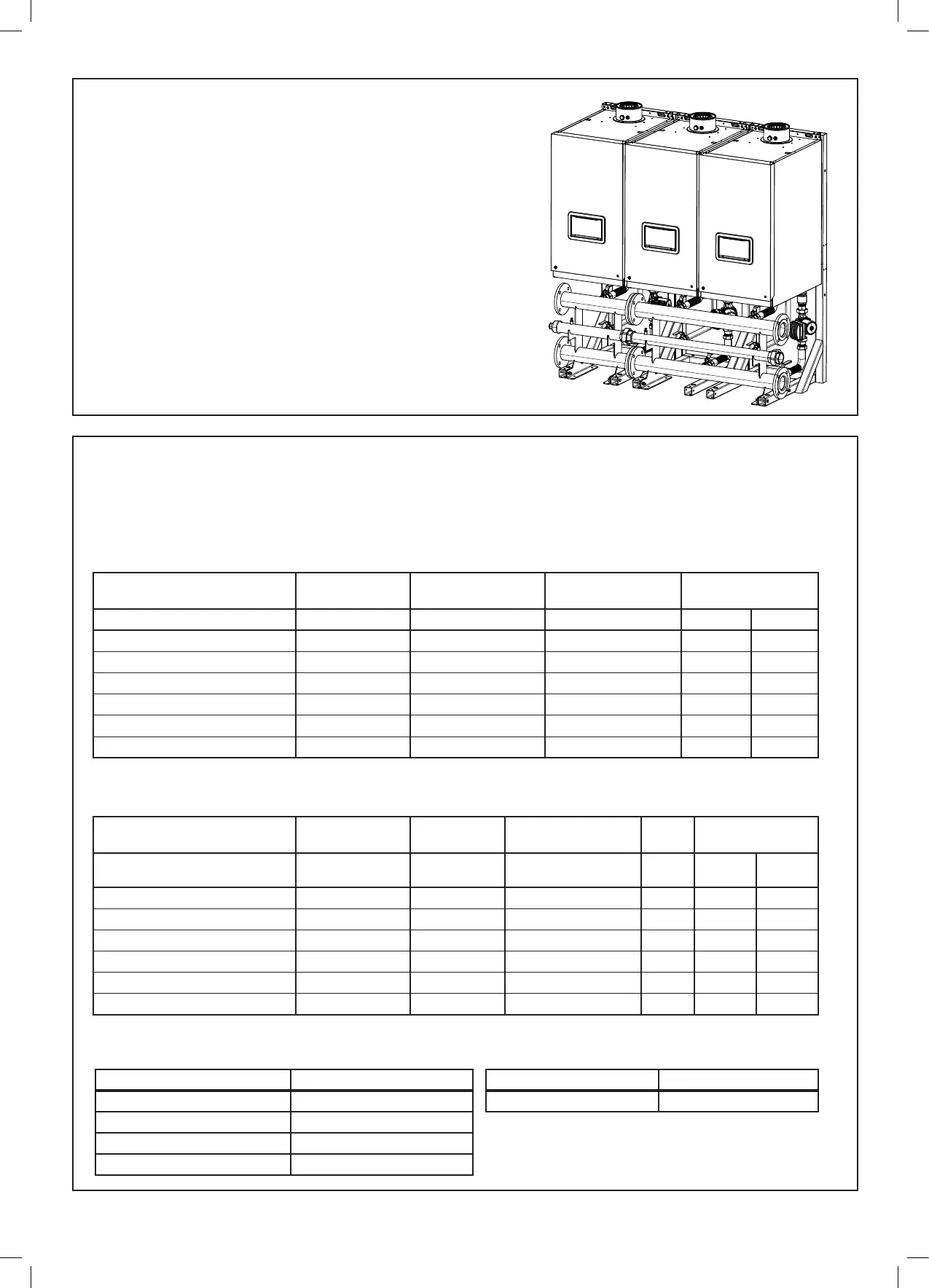

2.1 FRAME AND HEADER KIT DESIGN OPTIONS
The Stratton mk3 boilers are suitable for use in a multiple boiler conguration. The Stratton mk3 multiple boiler system is
available in side by side and giving the opportunity to choose the optimum footprint size or wall space for a given output. 80-150
kW kits include the support frame. Boilers can be wall mounted required.
2 GENERAL DESCRIPTION OF SYSTEMS
continued . . . . .
Available Rig Congurations Total Output
Required kW
Number of boilers
and Frames
Footprint Size
W x D x H (mm)
Frame and Header
Kit
Range Size Prod. No
Single Frame Congurations 80-120 1 500 x 704 x 1535 DN80 232865
Twin Frame Congurations 160-240 2 1000 x 704 x 1535 DN80 232866
Triple Frame Congurations 240-360 3 1500 x 704 x 1535 DN80 232867
Quad Frame Congurations 320-480 4 2000 x 704 x 1535 DN80 232868
Five Frame Congurations 400-600 5 2500 x 704 x 1535 DN80 232869
Six Frame Congurations 480-600 6* 3000 x 704 x 1535 DN80 232870
Available Rig Congurations Total Output
Required kW
No of boilers
and Frames
Footprint Size
W x D x H (mm)
Size Frame and
Header Kit
Range
No sep/
LLH
PHEX
sep
Single Frame Congurations 150 1 500 x 794 x 1830 DN100 235371 232871
Twin Frame Congurations 300 2 1000 x 794 x 1830 DN100 235372 232872
Triple Frame Congurations 450 3 1500 x 794 x 1830 DN100 235373 232873
Quad Frame Congurations 600 4 2000 x 794 x 1830 DN100 235374 232874
Five Frame Congurations 750 5 2500 x 794 x 1830 DN100 235375 232898
Six Frame Congurations 900 6 3000 x 794 x 1830 DN100 235376 232899
Note. All boilers need to be sized in accordance to the total required heat load and the modulation capabilities of the appliances.
* Max 6 x 100 kW only.
H=Height from oor to top of frame, D=Depth from installed wall to front of kit, W=Width of installed kit
DN80 DN100
232876 232877
kW Product No.
Stratton mk3 80 AA082638
Stratton mk3 100 AA082639
Stratton mk3 120 AA082640
Stratton mk3 150 AA082641
Table 1 80-120 kW
Table 2 150 kW only
Table 3 Available Stratton mk3 Boilers Table 4 Low Loss Header Accessories
