Hamworthy Stratton mk3 - Fitting Gas Connection; Pressure Relief Valve Connection; Condensate Siphon Fitting

12
80-150 kW Frame & Header Kits Manual

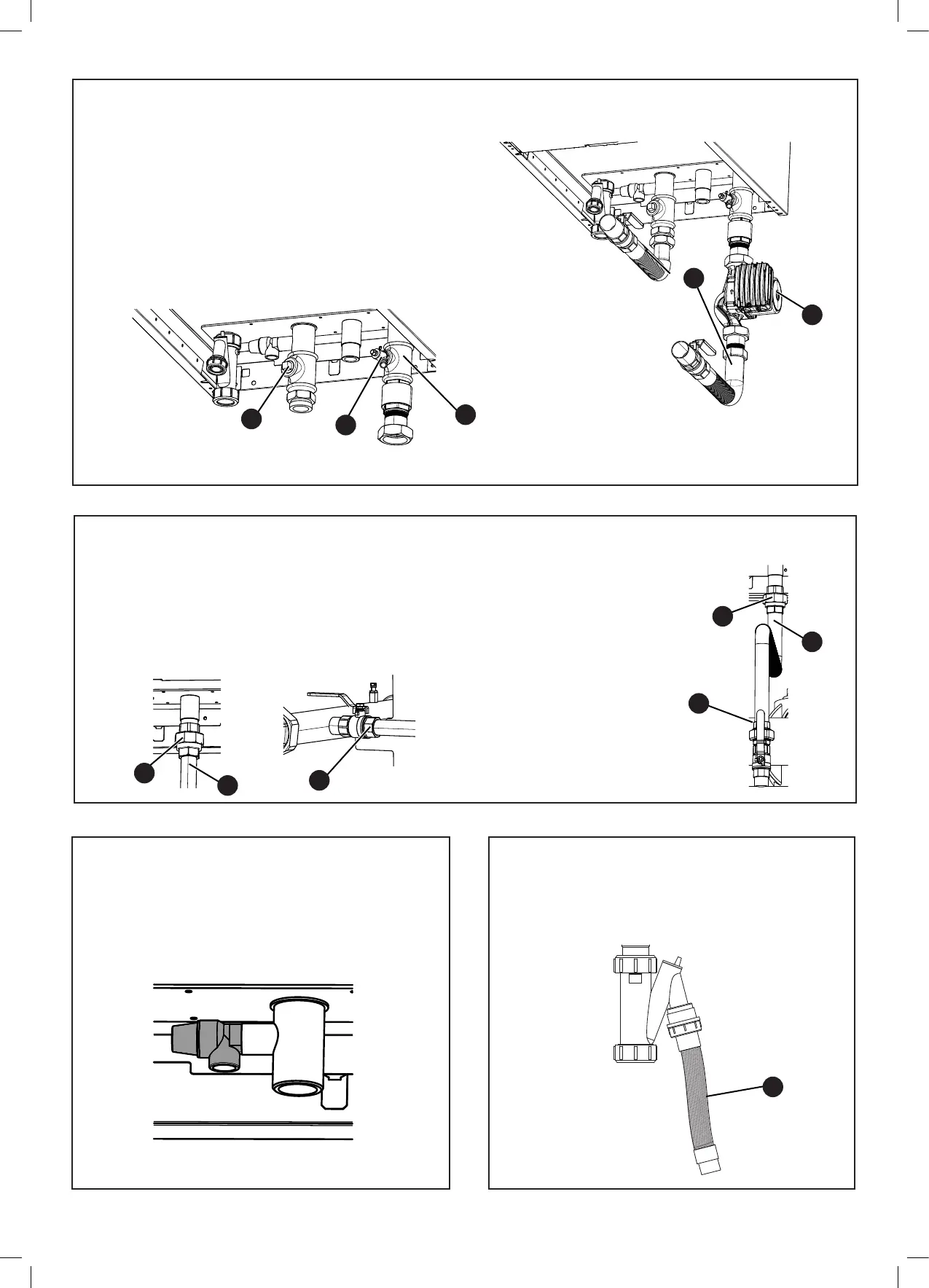

6. Fit the pump to the boiler return connection
using the gaskets provided.
7. Fit the two exible header connections to the
boiler pump connection and the ow connection
using the sealing washers provided.
8. Tighten header feet to frame feet bolts.
UPMXXL INSTRUCTIONS
5.4 PRESSURE RELIEF VALVE
CONNECTION
1. Ensure each boiler pressure relief connection is piped to
safety.
5.5 CONDENSATE SIPHON FITTING
1. Fit the condensate siphon to the boiler and pipe to
drain following the recommendations contained in the
boiler Installation instructions.
1
6
4
5
3
UPMXXL shown
MAGNA 1 shown
GAS CONNECTION TO GAS HEADER
5.3 FITTING GAS CONNECTION
1. Fit the gas hose into the gas header using Gas Safe
approved jointing compound.
2. Fit the 1" iron union to the gas connection on the
underside of the boiler using Gas Safe approved
jointing compound.
3. Fit the gas hose to the 1" union.
4. Ensure this is connection is gas tight.
Note. Gas Isolation Valve is
supplied with the boiler.
1
1
2
2
3
3
UPMXXL Pipe kit shown
GAS CONNECTION TO GAS HEADER
Note. Flow connection removed for clarity.
7
