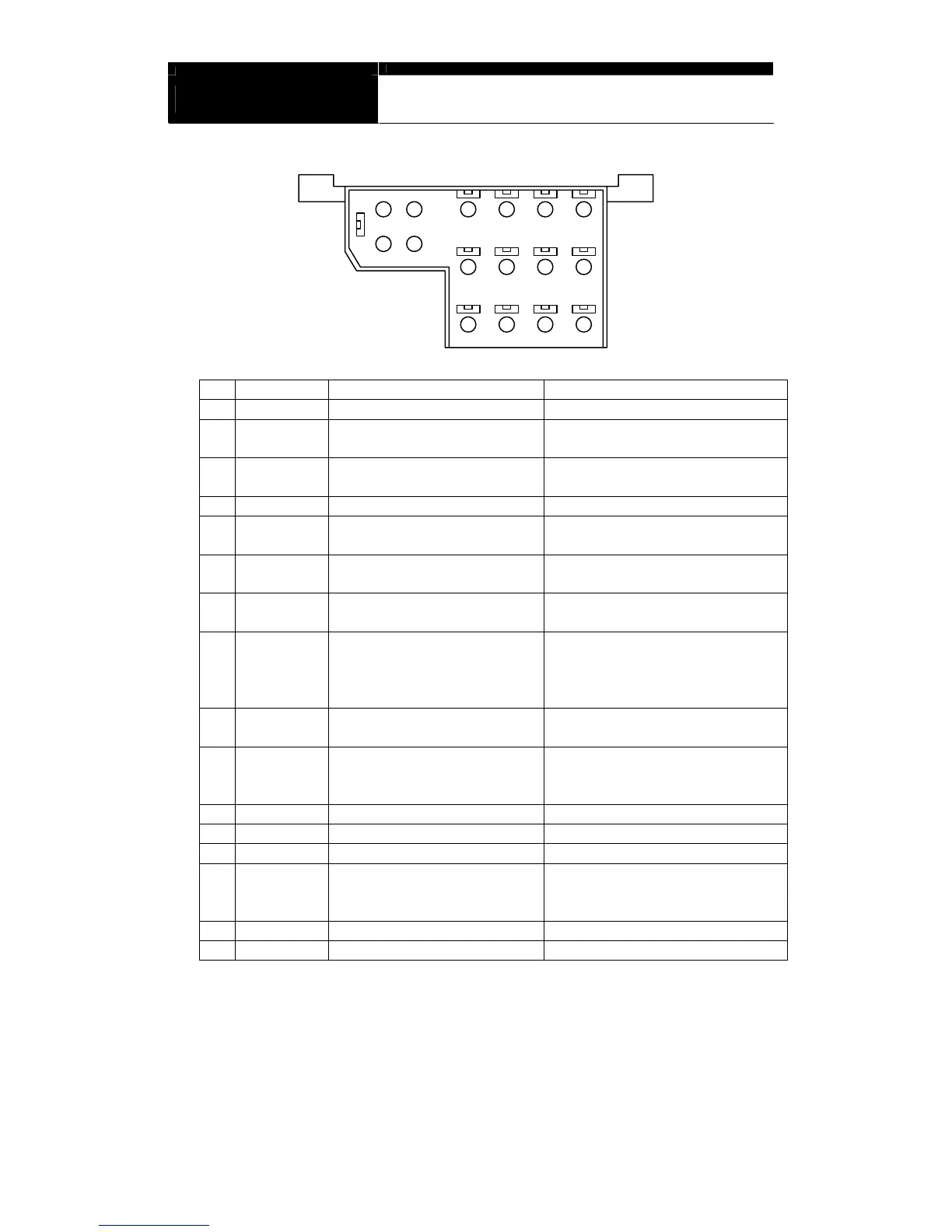

z 16-pole Pin assignment of Diagnostics Connector
56
11910 12
161514
78
42
13
13
CALIFONIA MODELS FEDERAL/CANADIAN MODELS
1
Ground Ground
2
OBD Pushbutton for on-board
diagnostics
Not used
3 CIS-E
DM
KE/CFI Continuous fuel injection
Diagnostics module
KE/CFI Continuous fuel injection
4 EDS
LED Electronic diesel system
5 ASD
4MATIC
Automatic locking differential Automatic locking differential
Automatic-engaged four wheel drive
6 SRS
Supplemental Restraint
System/Air Bag
Supplemental Restraint System/Air
Bag
7 A/C
RB
Air conditioning,
Roll bar,
Air conditioning,
Roll bar,
8 DI
HFM-SFI
PMS (PEC)
Distributor ignition
HFM sequential multi-port fuel
injection/ignition
Distributor ignition
HFM sequential multi-port fuel
injection/ignition
Pressurized engine control
9 ADS
RB
Adaptive damPing system
Roll bar,
Adaptive damPing system
Roll bar,
10 RST/CST
Roadster soft-top,Cabriolet soft-
top
TN-signal (gasoline)
Roadster soft-top ,Cabriolet soft-top
TN-signal (gasoline)
11 ATA
Anti-theft alarm Anti-theft alarm
12 IRCL
Remote central locking Remote central locking
13 EAG
Electronic transmission control Electronic transmission control
14 EA
CC/ISC
MAS/ESCM
Electronic accelerator,
Cruise control/idle speed control,
Engine systems control module,
Electronic accelerator,
Cruise control/idle speed control,
Engine systems control module,
15
Not used Not used
16
12 Volt Positive, (Circuit 15) 12 Volt Positive, (Circuit 15)
