Hanatech Co., Ltd.
Chapter 5
Chapter 8 - 1
European Cars
I. Mercedes Benz
A. Mercedes Benz Diagnostic Connectors
1) 38-Pin Connector: Use MB 38-Pin DLC Multiplexer Module
2) 8-Pole Connector: Use MB 4-Pin Connector
3) 16-Pole Connector: Use MB 4-Pin Connector
4) OBD2 Connector: Use OBD2 Connector
B. MB 38-Pin DLC Multiplexer Module
1) Apply the 38-Pin Multiplexer when the vehicle has a 38-pin circular
diagnostic socket in the engine compartment.
2) Applicable vehicles: 124,129,140,170,202,208,210
3) Connect ULTRASCAN plus/MULTISCAN plus head unit and Mercedes
Benz 38-Pin DLC Multiplexer Module using the main data link cable.
Make sure all the connections are secured by fastening the screws -
cables can be disconnected rather easily when not fastened because of
the weight of the multiplexer.

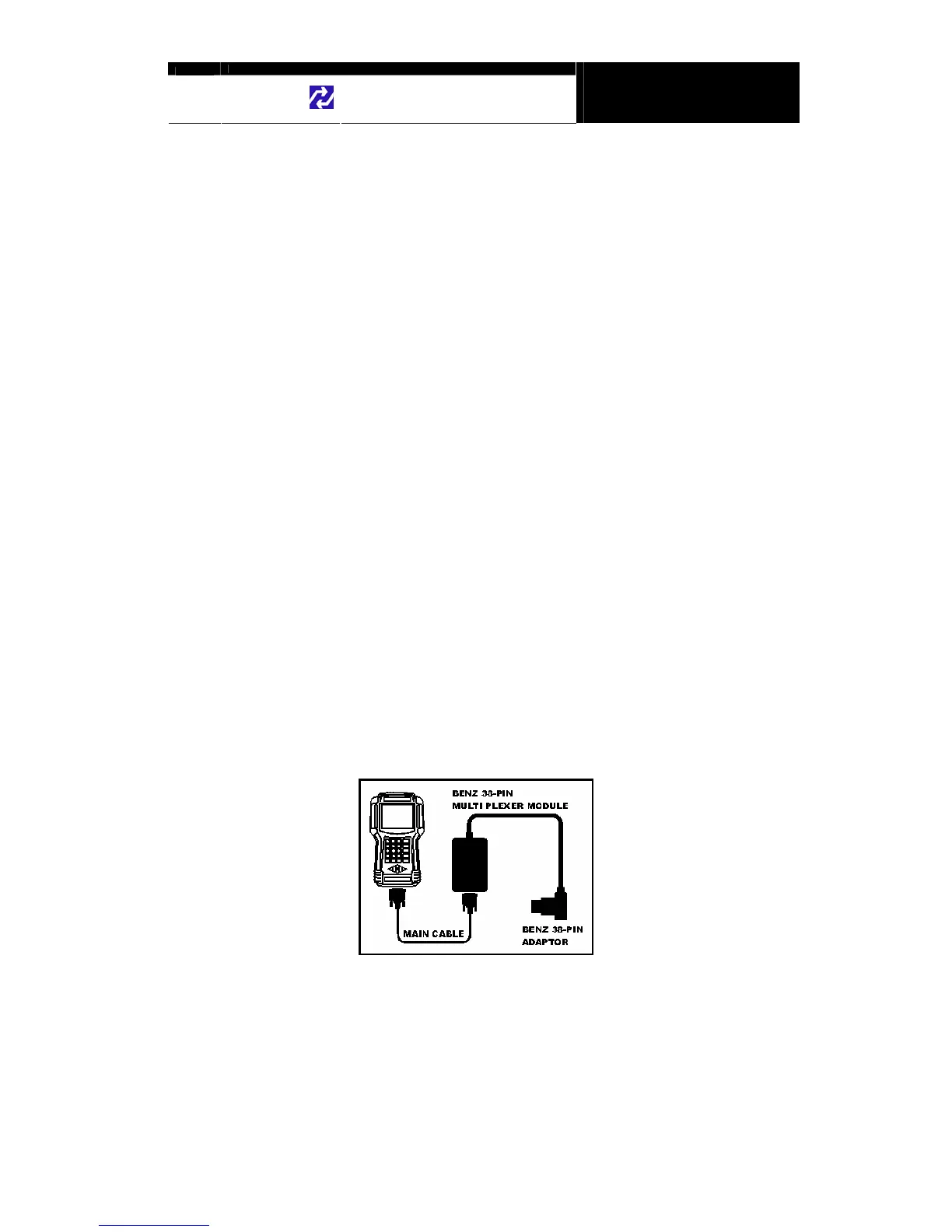

[Connecting MB 38-pin multiplexer to the head unit]
