Technical Manual VERSION 2.0 -10-18-2018
58
Specification : Pt100 sensor
Recommended max. meas. Current for heat coefficient <0.1K DC 1 ~ 3
mA
Heating coefficient 10m/K
Sensor resistance at 0 ℃ 100±0.12
Change of resistance 0 ~ 100 ℃ 0.385/K
Insulation test voltage U is – AC 1.5kV

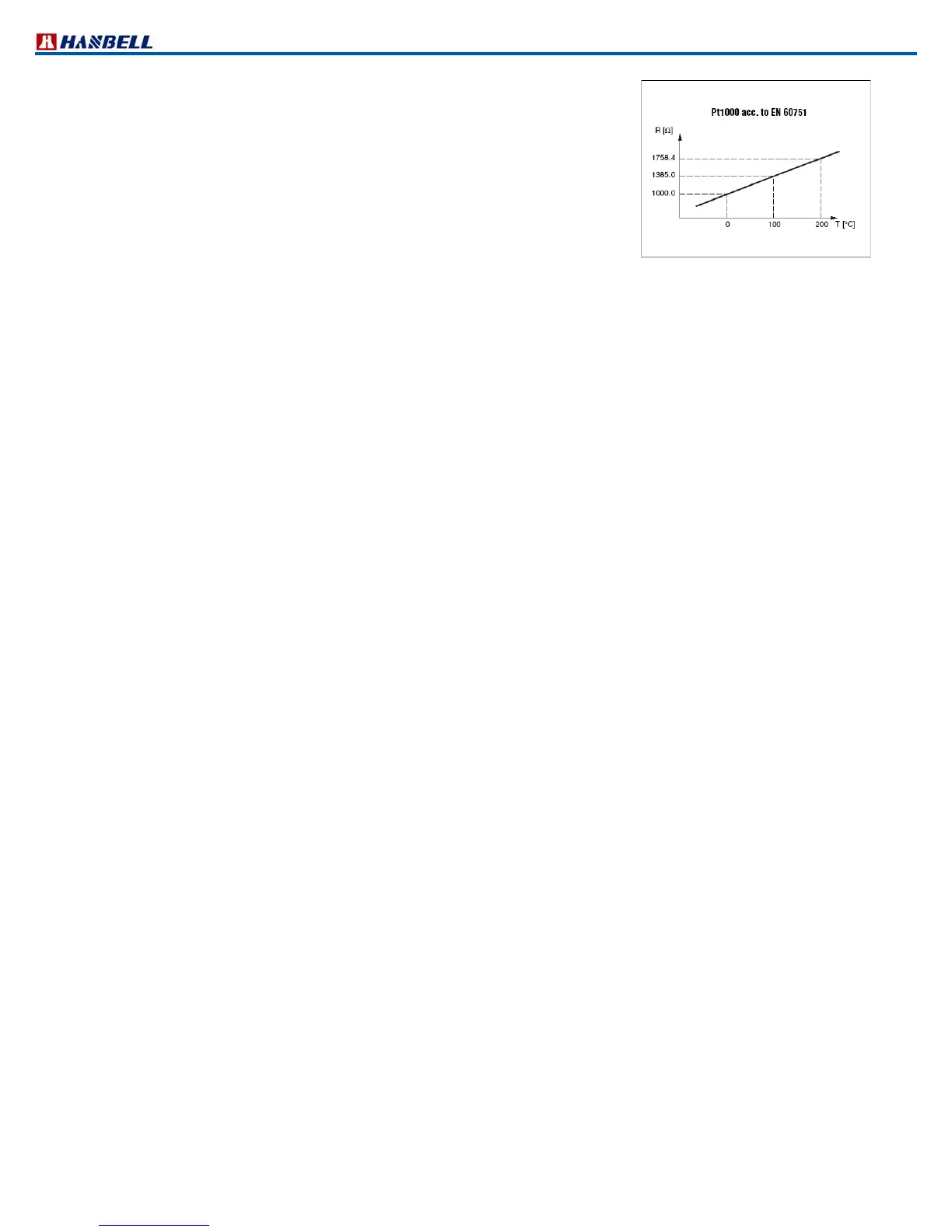

Specification : Pt1000 sensor
Recommended max. meas. Current for heat coefficient < 0.1K – DC0.2 ~
2mA
Sensor resistance at 0 ℃ 1000±1.20
Change of resistance 0 ~ 100 ℃ 3.85/K
Insulation test voltage U is – AC 1.5kV
Note: Please specify Pt100 or Pt1000 sensor when placing orders to Hanbell.
