5 Adjustments (to
be carried out by a
professional)
Note!
There are calibration marks on various parts
of the seating system. The ex-factory settings
are indicated.

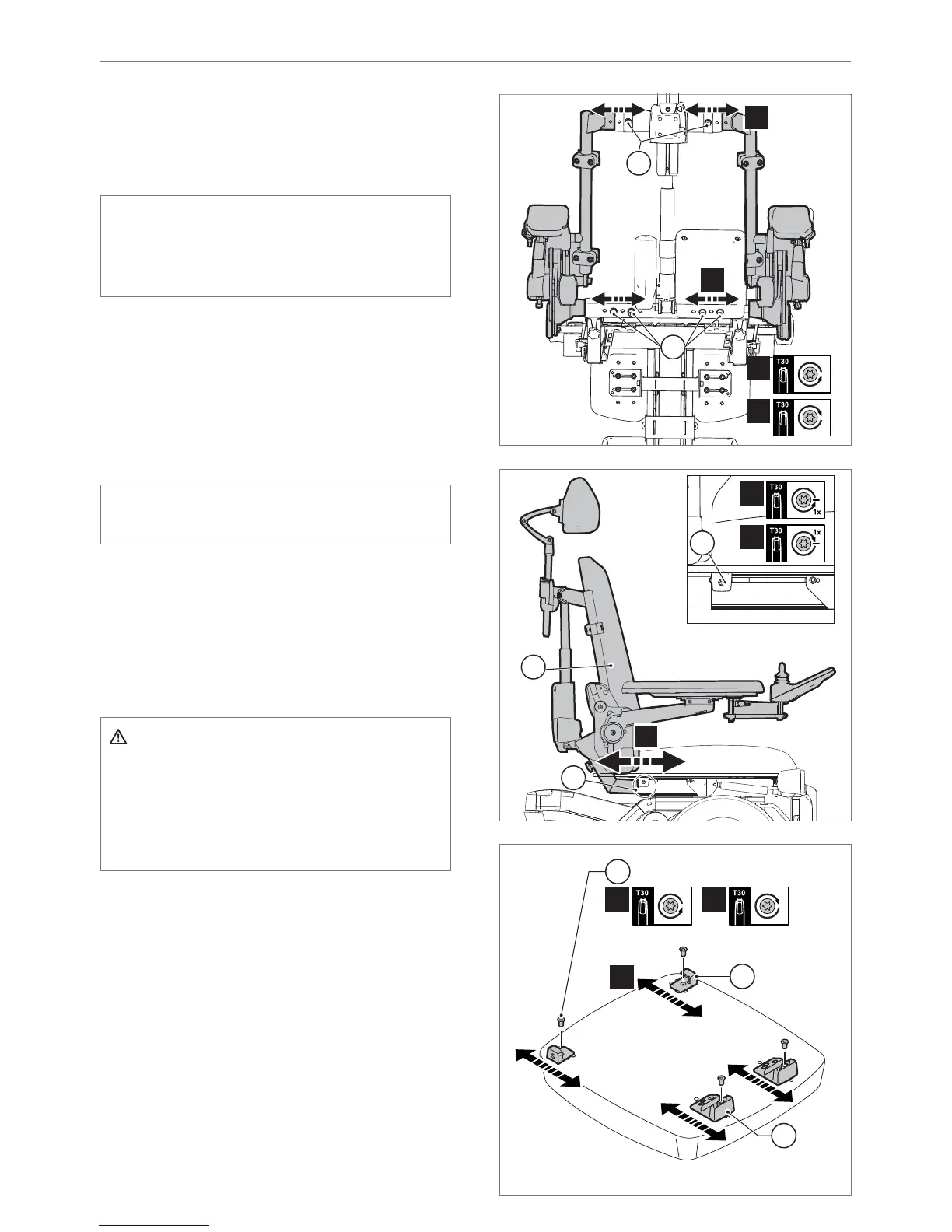

5.1 Seat width
1. Unscrew (A) (with use of a ring spanner)
and (B).
2. Adjust to desired seat width.
3. Place (A) (with use of a ring spanner) and
(B) in new holes and tighten.
Note!
First adjust one side, then the other side.
5.2 Seat depth
Backrest adjustment
1. Loosen (A) by one turn.
2. Adjust (B) to the desired position.
3. Tighten (A).
Warning!
The stability of the wheelchair is infl uenced
by the adjustment of the seating system’s
centre of gravity.
Such adjustments should be made by
professionals only.
Seating system adjustment
1. Remove the seat (see “Use - Reducing the
seating system in size for transportation
purposes”).
2. Remove the screws (B).
3. Move (C) and (D).
4. Tighten the screws (B).
5. Replace the seat (see “Use - Setting up the
seating system following transportation”).
