§4 Installation & Operation
§4.1 Installation & Operation for MMA/Stick Electrode Welding
§4.1.1 Set-Up Installation
(1) Connection of Output Cables: Two sockets are available on this welding machine,
One Positive(+) and one Negative (-) polarity, to connect MMA/Electrode holder cable and
earth clamp cable. Various electrodes require different polarity for optimum results and
careful attention should be paid to the polarity, refer to the electrode manufacturers
information for the correct polarity.

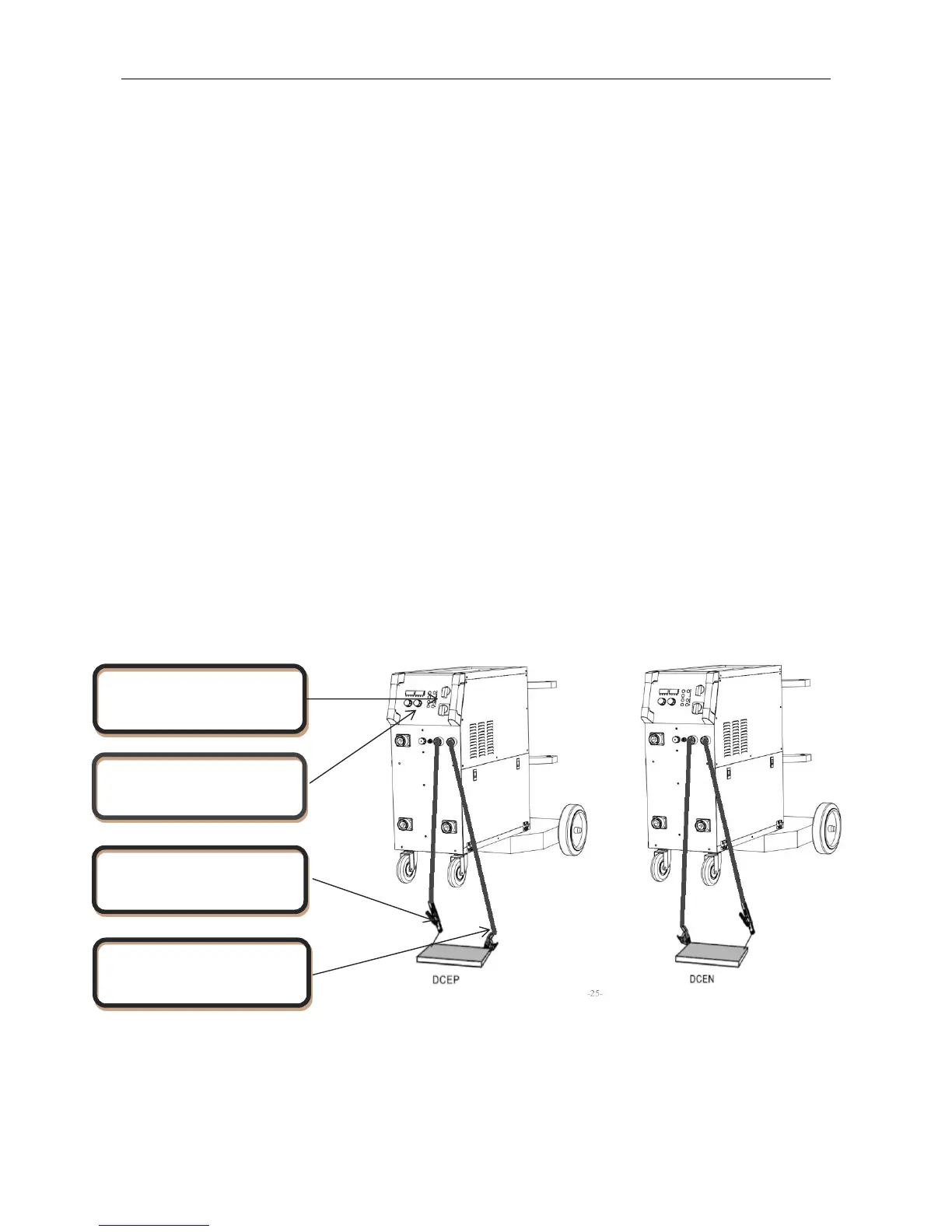

DCEP: Electrode connected to Positive (+) output socket.
DCEN: Electrode connected to Negative (-) output socket.
(2) Turn the power source on and press the Function Select button (#1) to
MMA/Electrode.
(3) Set the welding current relevant to the electrode type and size being used as
recommended by the electrode manufacturer.
