OPERATION
-40-
§4.3 Installation & Operation for MIG Welding

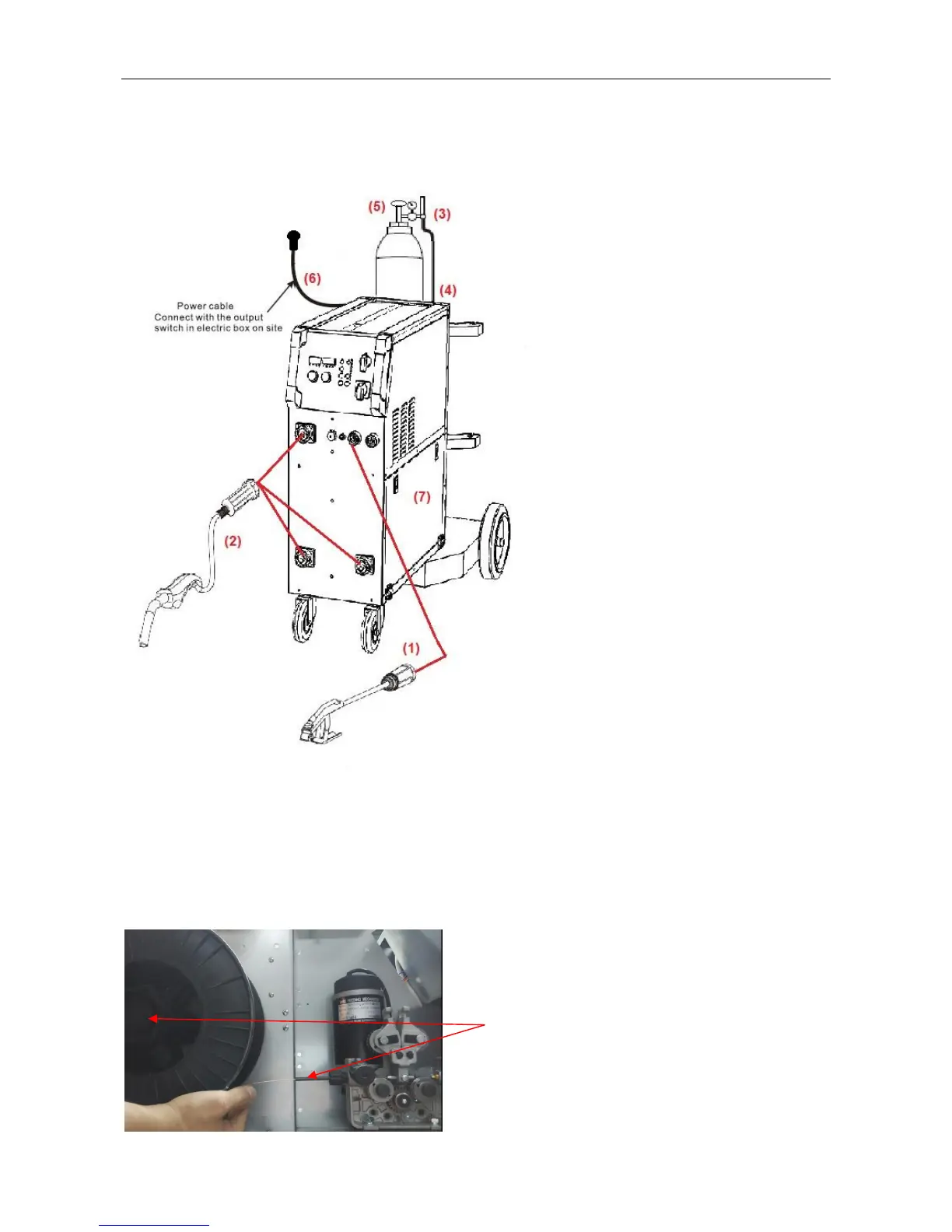

§4.3.1 Set up installation for MIG Welding (Gas shielded wire)
(1) Insert the earth cable plug
into the Negative (-) socket and
twist to tighten.
(2) Plug the MIG welding gun
into one of the THREE
euro-connect sockets on the front
panel and tighten locking nut
securely.
(3) Connect the gas regulator to
the gas cylinder and connect the
gas line to the regulator.
(4) Connect the gas line to gas
connector on the rear panel.
(5) Open the gas cylinder valve,
set regulator. Check for Leaks!
(6) Connect the power cord of
welding machine with the outlet
on electrical box.
(7) Place the wire spool onto the spool holder. Snip the wire from the spool being sure to
hold the wire to prevent rapid uncoiling. Feed the wire into the wire feeder inlet guide tube
through to the drive roller. (SEE Section 4.3.3 for more information)
(7) Place wire onto spool holder - (spool retaining
nut is left hand thread) Feed wire through the
inlet guide tube on to the drive roller.
