OPERATION
-41-

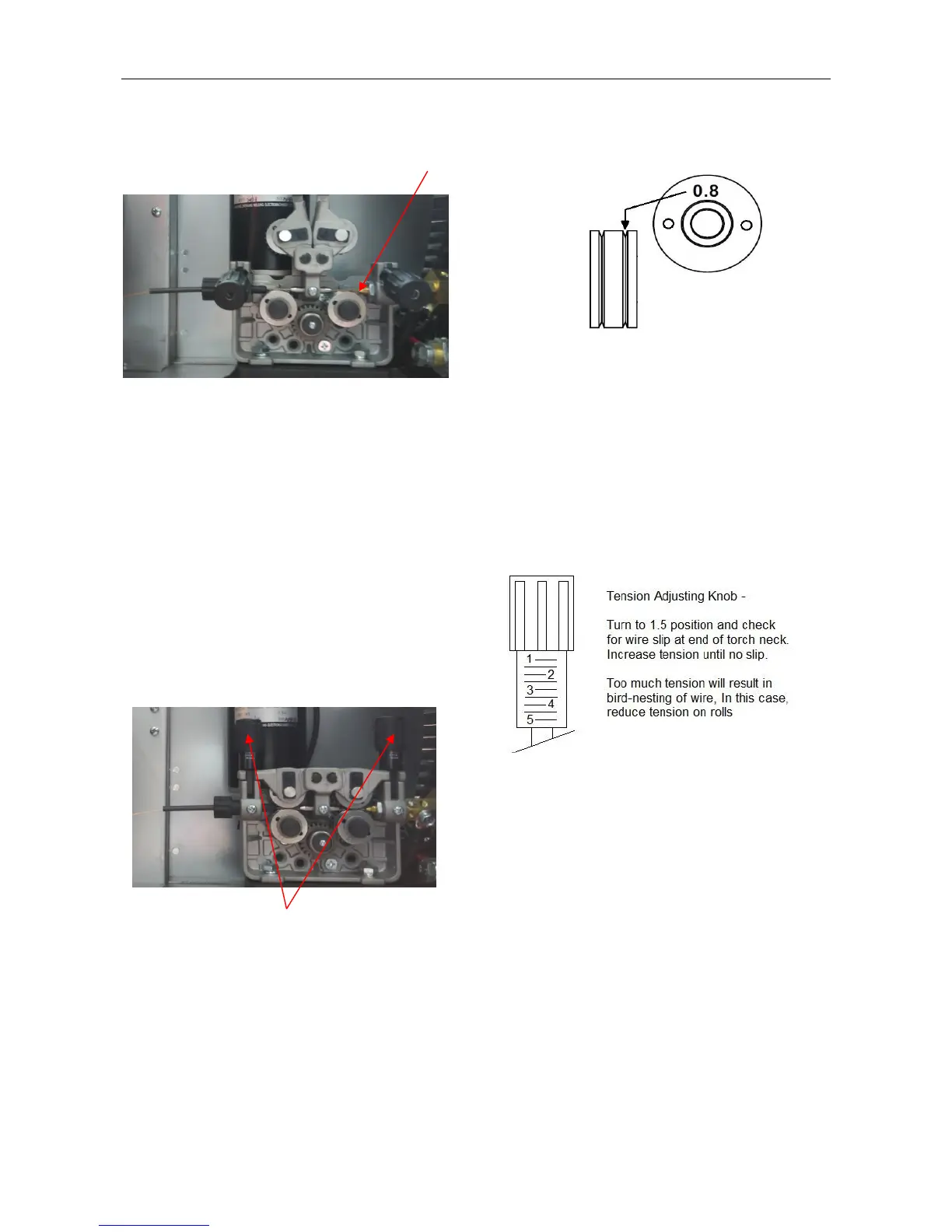

(8) Carefully feed the wire over the drive roller into the outlet guide tube, feed through
about ½” (150mm) into the torch receptacle.
(9) Check that the drive roller size is compatible with the wire diameter, replace the roller if
necessary. (SEE Section 4.3.2 for more information)
(10) Align the wire into the groove of the drive roller and close the top roller tension arms
making sure the wire is in the groove of
the bottom drive roller, lock the tension
arms into place with pressure knobs
and tighten by turning clockwise.
(9) Tension arms
(11) Remove the gas nozzle and contact tip from the torch neck.
(12) Press and hold the manual wire button to feed the wire through to the torch neck,
release the manual wire key when the wire exits the torch neck.
To Next Page
