OPERATION
-45-

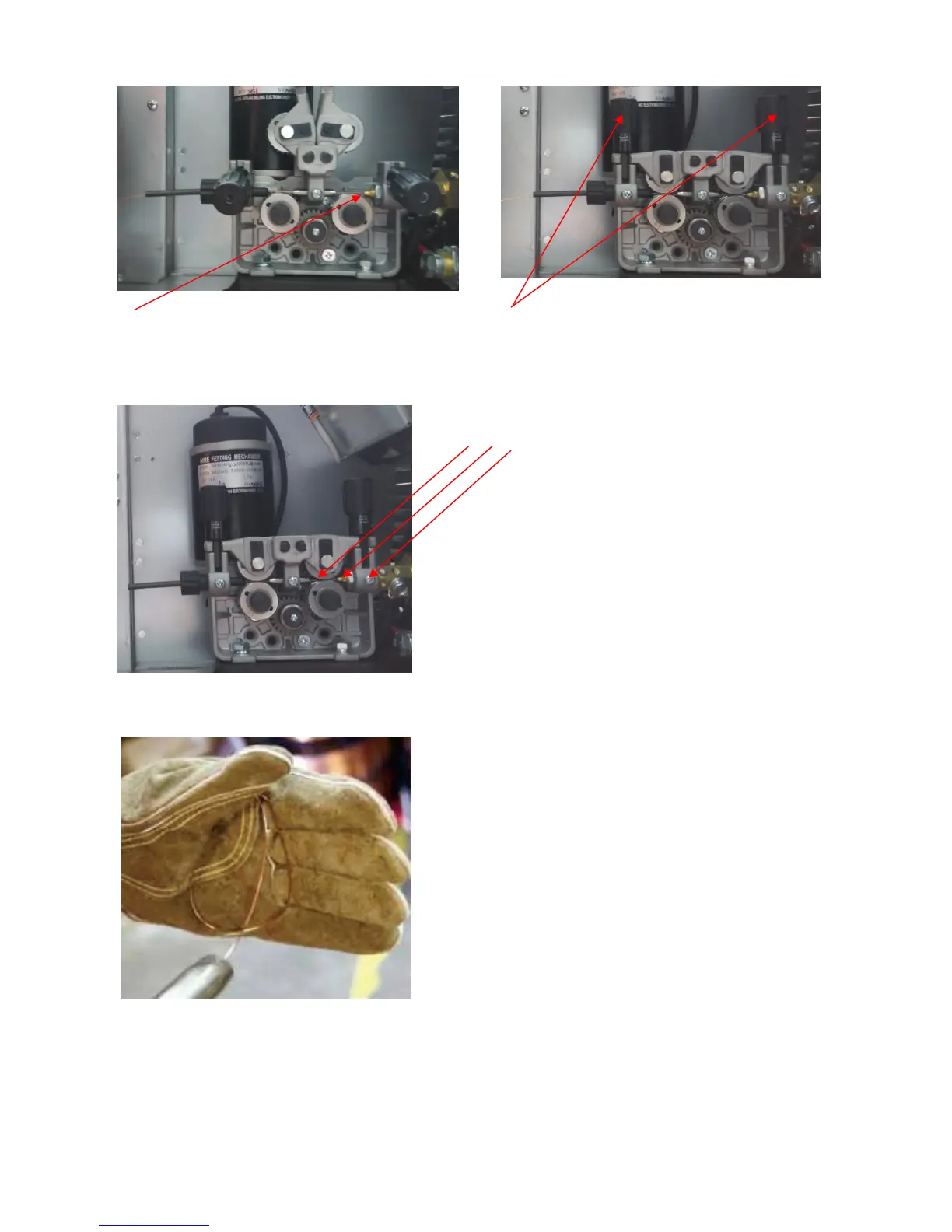

(5) Feed the wire through the drive rollers (6) Lock down the top pressure roller and
and into the outlet guide tube of the wire tighten using the tension adjustment knob.
(7) Check that the wire passes through the center
of the outlet guide tube without touching the sides.
Loosen the locking screw and then loosen the
outlet guide tube retaining nut too make adjustment
if required. Carefully retighten the locking nut and
screw to hold the new position.
(8) A simple check for the correct drive tension is to
bend the end of the wire over hold it about 100mm
from your hand and let it run into your hand, it
should coil round in your hand without stopping and
slipping at the drive rollers, increase the tension if it
slips.
WARNING: Must wear gloves
