1.4 Drive Motor
Motor use notice
– Keep clean and dry around the motor, and do no place other objects on or in the motor.
– Do not use with overload.
– Never coexist with strong magnetic object.
– Input voltage grade should be correct.
– If there is abnormal odour in the motor, park to check.
– Wire between motor and controller should be as short as possible.
– During motor travelling, if there happen electric leakage, speed drops suddenly, severely
vibrate, too hot with smoke, or electric contact sparking smoke, turn off the power
immediately for check.
– Often check if the motor over heats.
– Often check motor wiring contact screw for looseness, sparking smoke or insulation aging.
Use and maintenance
Stator parts and brush neutral position has been adjusted before sold, so users should not
dismantle or adjust at will.
– Check if motor rotates flexibly or abrades.
– Check if motor outlet(or terminal) connection is correct or reliable.
– Brush should slide easily in the brush box.
– Check if commutator segments are clean, if necessary, clean the minor groove of
commutator segments and carbon powder on the commutator surface with soft clean white
Red
CW
M
24VDC
+
-
-
24VDC
+
CCW
Black
M
Red
Black

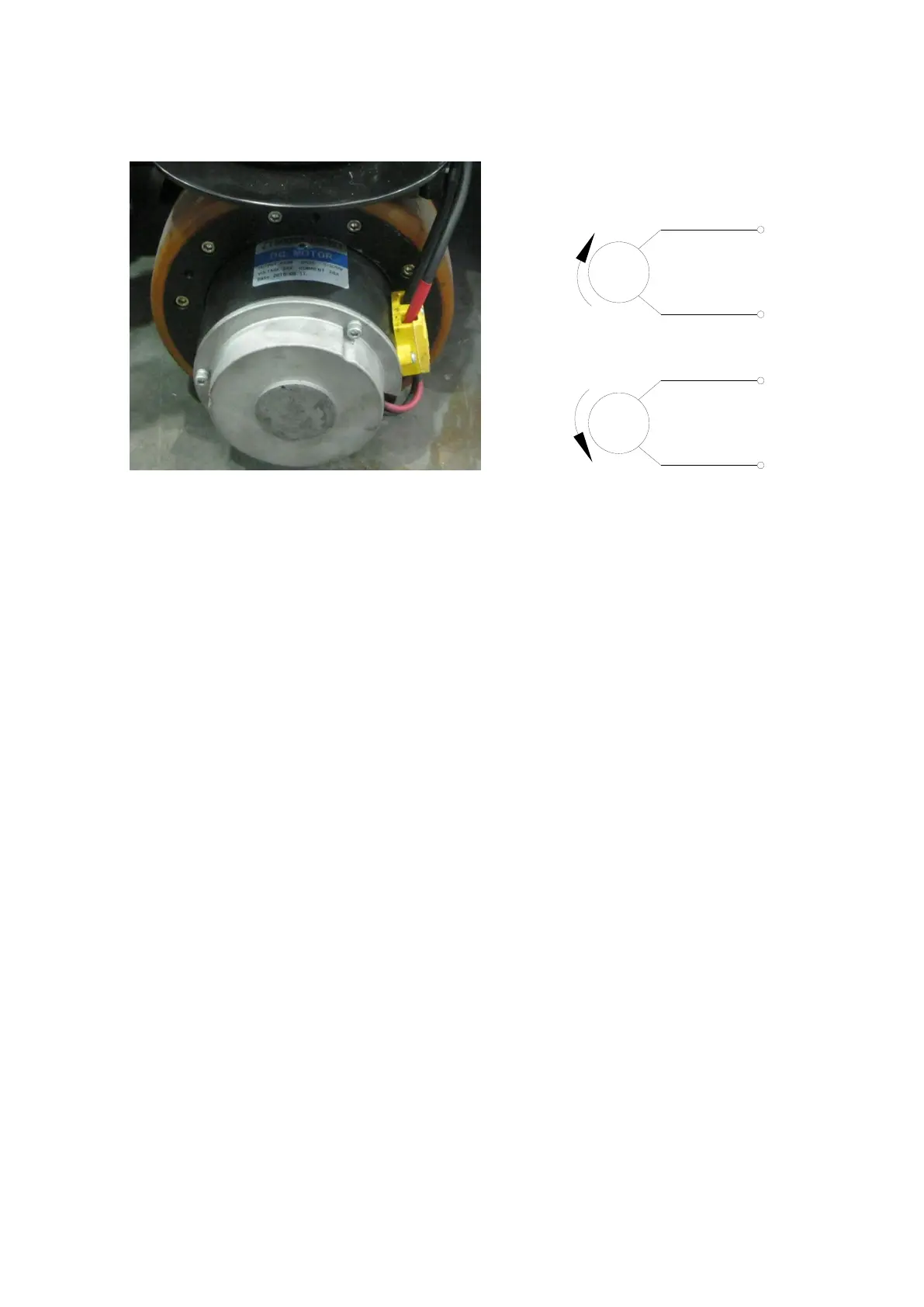

Wiring Diagram of Motor
