2.4.1 Display
Instrument [14]
It displays battery power.
10 LED display bars display battery discharging status. One LED means 10% battery power. As
the battery power reduces, 10 LED will light up one by one from right to left.
When the remaining capacity is less than 40%, need to stop charging.

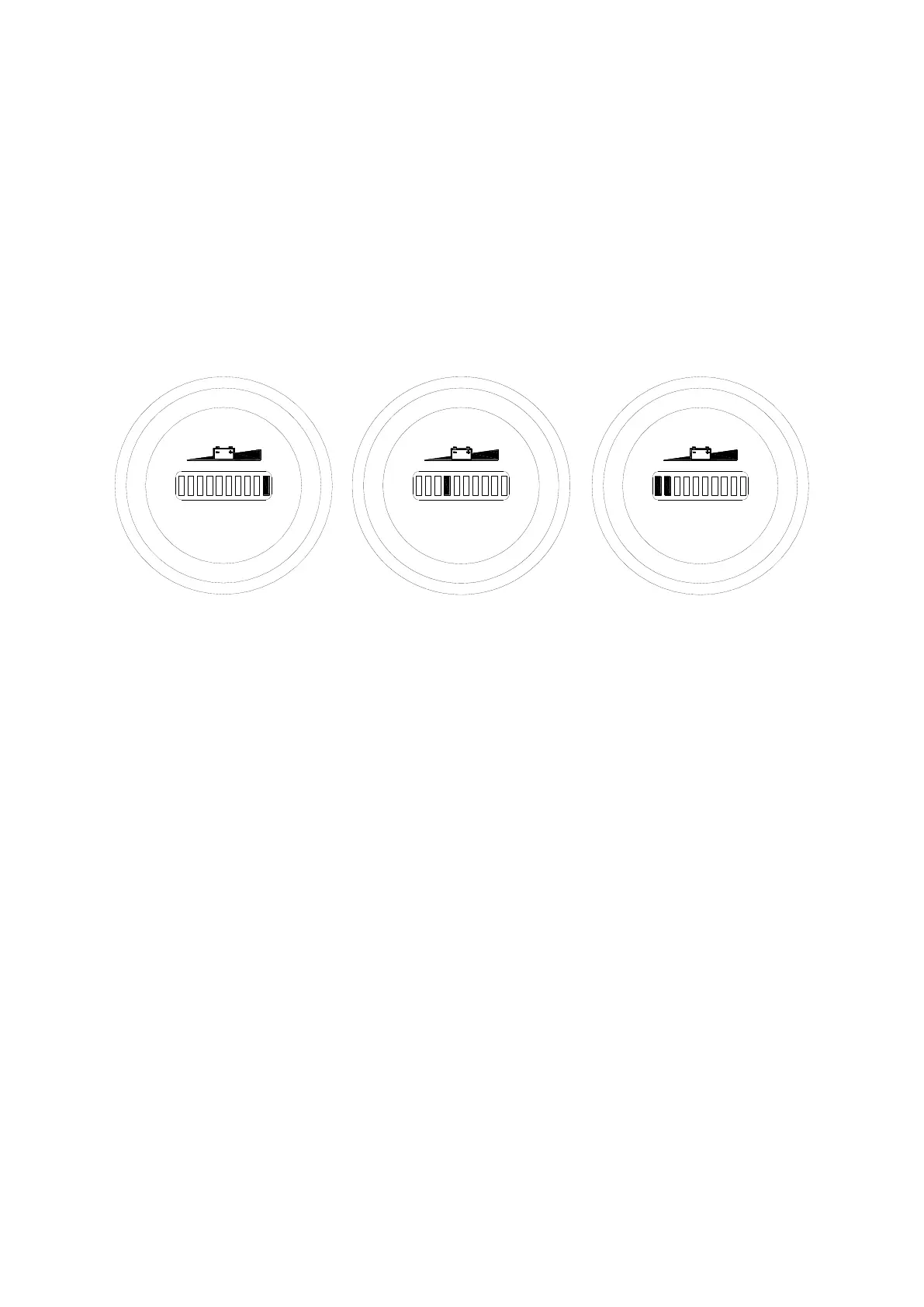

Fully charged Need charge Low charging status
One red LED flashing means the truck start to use reserve power (30～20% of battery power).
When it is lower than 20% of battery power(low charging status), two red LED flashes and power
is locked. Only after the battery power recovered to 20% or above can re-use the lifting function.
Charging light indicator [9]
It displays charger running state.
– Red light flashes-it is charging.
– Yellow light is on- charging fault.
– Green light is on- charging finishes.
Notes: Overnight charging recommend after use !
