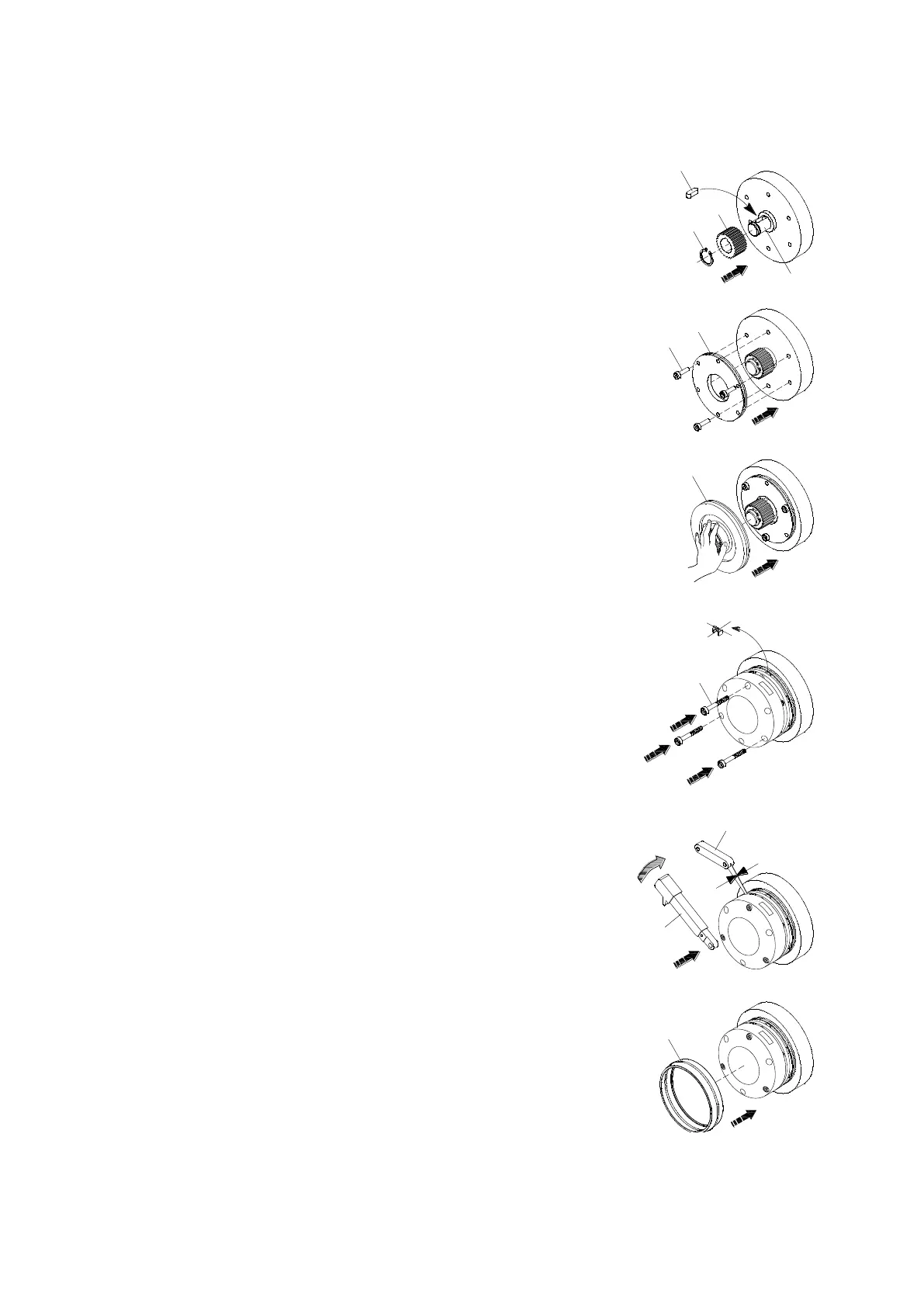

– Put the flat key (13) into the key groove of the motor shaft (9).
Press the shaft sleeve (4) to the motor shaft (9) and fasten it
with the inner spring.
– Install the friction disk (5) to the end face of the motor by
using three mounting bolts of the friction bolts (12).
– Cover the shaft sleeve with the friction disk (3).
– Install the stator module (2) to the friction disk (5) with three
mounting bolts of the brake (1).
Note: Remove the three rubber mats of the stator module
which is for stable transportation.
– Screw down the three mounting bolts (1) with a torque
wrench (15) and check the air gap (Z) of the brake with a
feeler gauge (16).
– Put on the dustproof cover(6).
– Connect the brake wiring.
