HANKISON HPET Series User Manual

13

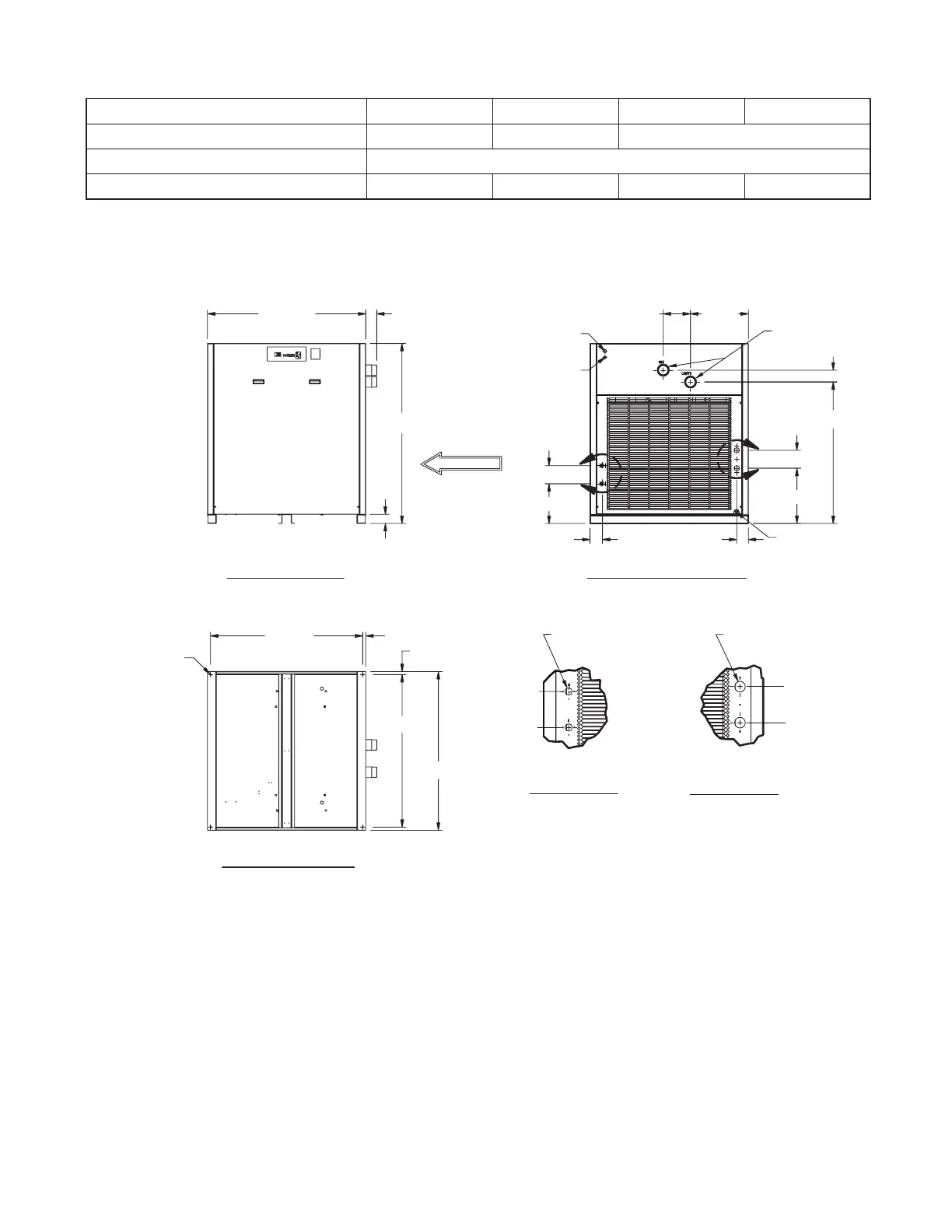

DIMENSIONS / WEIGHTS
MODEL 4 6 7.5 10
DIM “X” – COOLING WATER I/O CONNECTIONS 3/4-14 NPT (FEMALE) 1-14 NPT (FEMALE) 1.1/4-11.5 NPT (FEMALE)
DIM “Y” – AIR I/O CONNECTIONS 3"-8 NPT (MALE) / Rc 3"-11 BSPT (MALE)
WEIGHT, lbs (kg) 889 (404) 939 (427) 1204 (547) 1329 (604)
NOTE: Dimensions and Weights are for reference only. Request certified drawings for construction purposes.
FRONT VIEW
RIGHT SIDE VIEW
BOTTOM VIEW
DETAIL A
DETAIL B
CONDENSER AIR FLOW
A
B
3 (76)
1 [25]
1 [25]
ELECTRICAL ENTRY
1/4"-18 FPT
DRAIN CONNECTION
3/4”-14 NPT (FEMALE)
I/O WATER CONNECTIONS
(HPET 4 W/C MODEL ONLY`)
“X” (FEMALE)
I/O WATER CONNECTIONS
(HPET 6-10 W/C MODELS ONLY)
WATER OUTLET
WATER INLET
WATER INLET
WATER OUTLET
19 (482)
8.15/16 (227)
3.7/8 (98)
46.3/8 (1178)
5.29/32 (150)
18.1/8 (460)
3.13/16 (97)4.1/8 (104)
13.1/16 (332)
5.29/32 (150)
59 (1499)
52 (1321)
3.9/16 (91)
50 (1270)
50 (1270)
4 X Ø5/8 (16)
MOUNTING HOLE
“Y” I/O CONNECTIONS
52 (1321)
SECONDARY ACCESS
