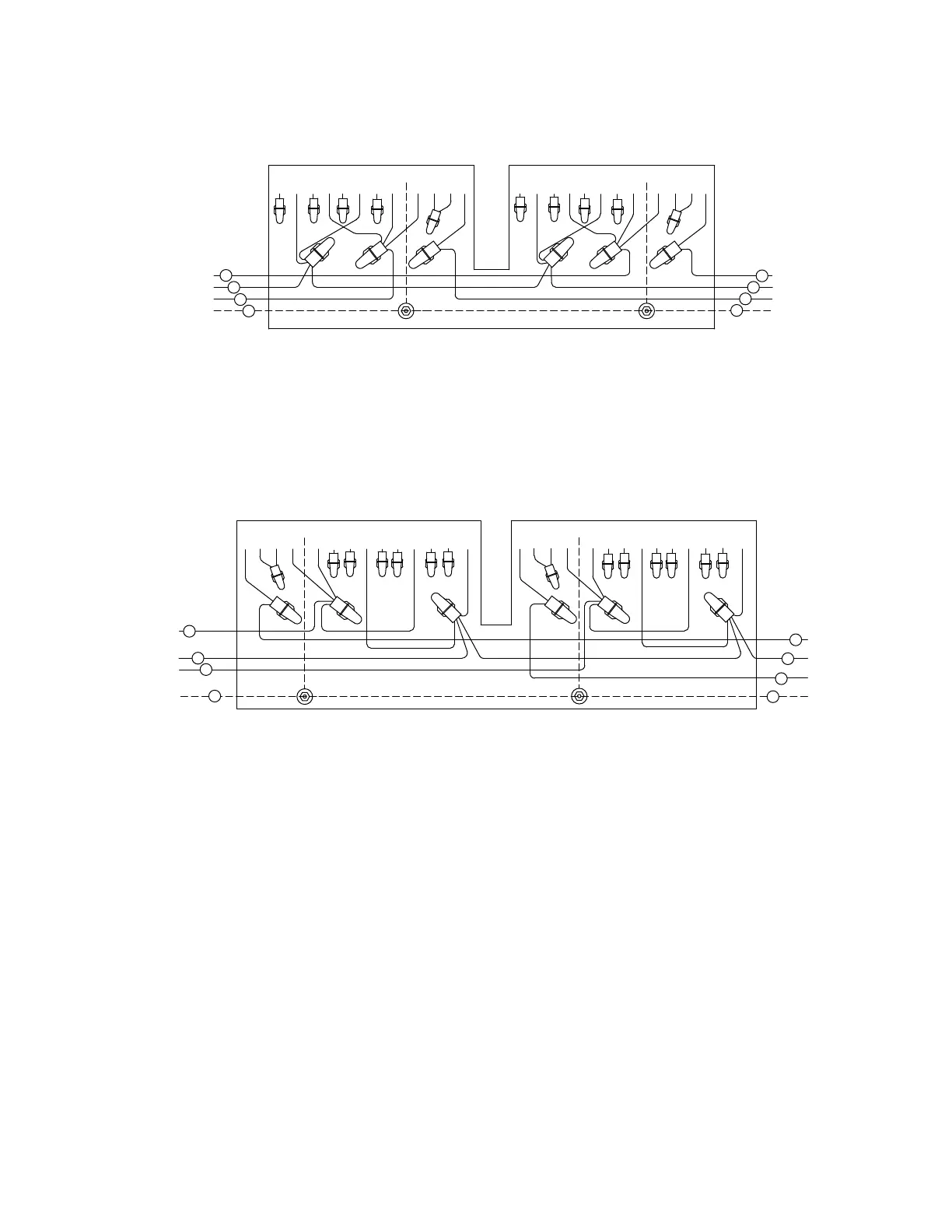

ELECTRICAL SCHEMATIC
230-460/3/60 Transformer Pack
X4
L3
PE
L2
L1
PE
L3
L2
L1
H8
H4
G
H8X4H4
G
RD
G/Y
WH
BL
WIRING ASSEMBLY DETAIL
RD
G/Y
WH
BL
TRANSFORMER 1 TRANSFORMER 2
230V-460V
HES800-1000, HPRP1000-1500
230V CUSTOMER
CONNECTION
460V TERMINAL
CONNECTION
X1H1H3 X2X3H2H6 H5H7 H6 H5H7 X1H1H3 X2X3H2
X1
L3
PE
L2
L1
PE
L3
L2
L1
H5
H1
G
H5 X1 H1
G
RD
G/Y
WH
BL
WIRING ASSEMBLY DETAIL
RD
G/Y
WH
BL
TRANSFORMER 2
TRANSFORMER 1
230V-460V
HES2500-3000, HPRP1750-3000
230V CUSTOMER
CONNECTION
460V TERMINAL
CONNECTION
H10H3X2 X3 X4 H2 H4 H9H7 H8H6 H6H3X2 X3 X4 H2 H4 H8 H9H7 H10
WIRING ASSEMBLY DETAIL
230V-460V
Models 1500-3000
WIRING ASSEMBLY DETAIL
230V-460V
Models 800-1250
