Control Valve Installation
1. As Figure 5-1 shows; insert a 32mm riser pipe with
bottom basket into the center of the mineral tank. If pipe
is higher than the top of the pressure tank, mark it,
remove from tank, and cut. Take care to keep foreign
material out of pressure tank.
The length of riser pipe should be below tank flange.
The distance from the top of the tank to the top of the
pipe should be between 3/16" and 1". The edges of the
pipe should not be sharp to avoid damage to the seal
inside the RevV4 valve.
2. If mineral tank was not purchased as part of a complete
system from Hankscraft Runxin be sure to plug the riser
pipe prior to filling with media. Media quantity is relative
to desired capacity and tank size. See Product Sizing Chart
on Page 13.
3. Install Valve Base O-ring around the neck of the valve.
4. Lubricate the center hub O-ring of the RevV4 valve.
5. Install the top basket with a twist and lock action to center
hub of the RevV4 valve.
6. Place RevV4 valve onto tank with the distributor pipe
inserted down the middle of the top basket. Rotate
clockwise to secure onto
the tank.
Do not overtighten! Overtightening may cause the valve
to crack and void the warranty.

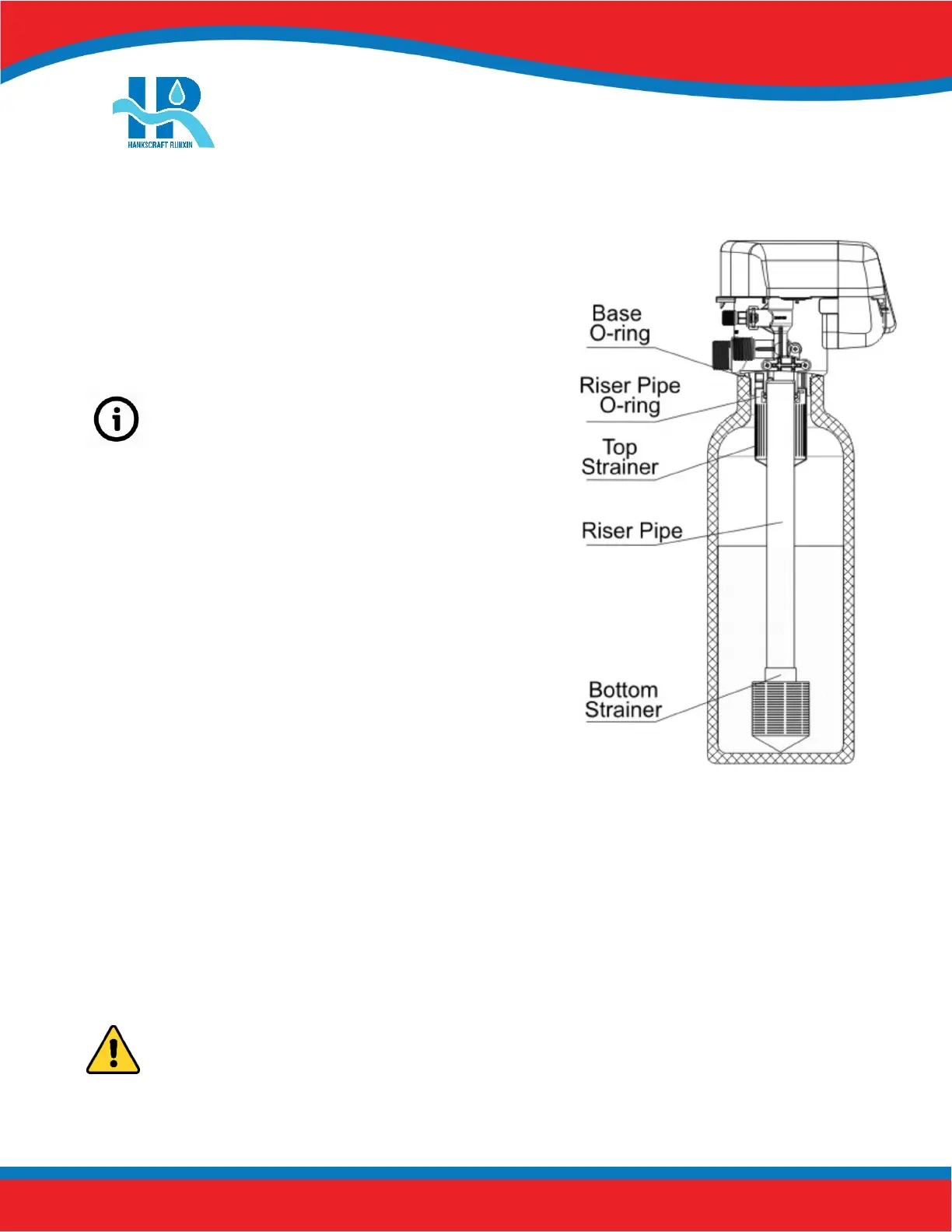

Figure 5-1
To Next Page
