Using One Flow Meter with Interlock
Function: Allows for continuous service and simultaneous non overlapping regeneration. This application is
for 2 or more RevV4’s in a system, all in service, with one flow meter for the entire system. Adjust the Time
Clock valve to the maximum days. This avoids a regeneration prior to the metered valve reaching capacity.
Connect the signal output connector of the metered valve to the remote handling connector of the Time
Clock valve. Refer to Figure 8-12.
9. System Installation
Valve Set-up and Installation - See Page 11-14.
Plumbing Connections

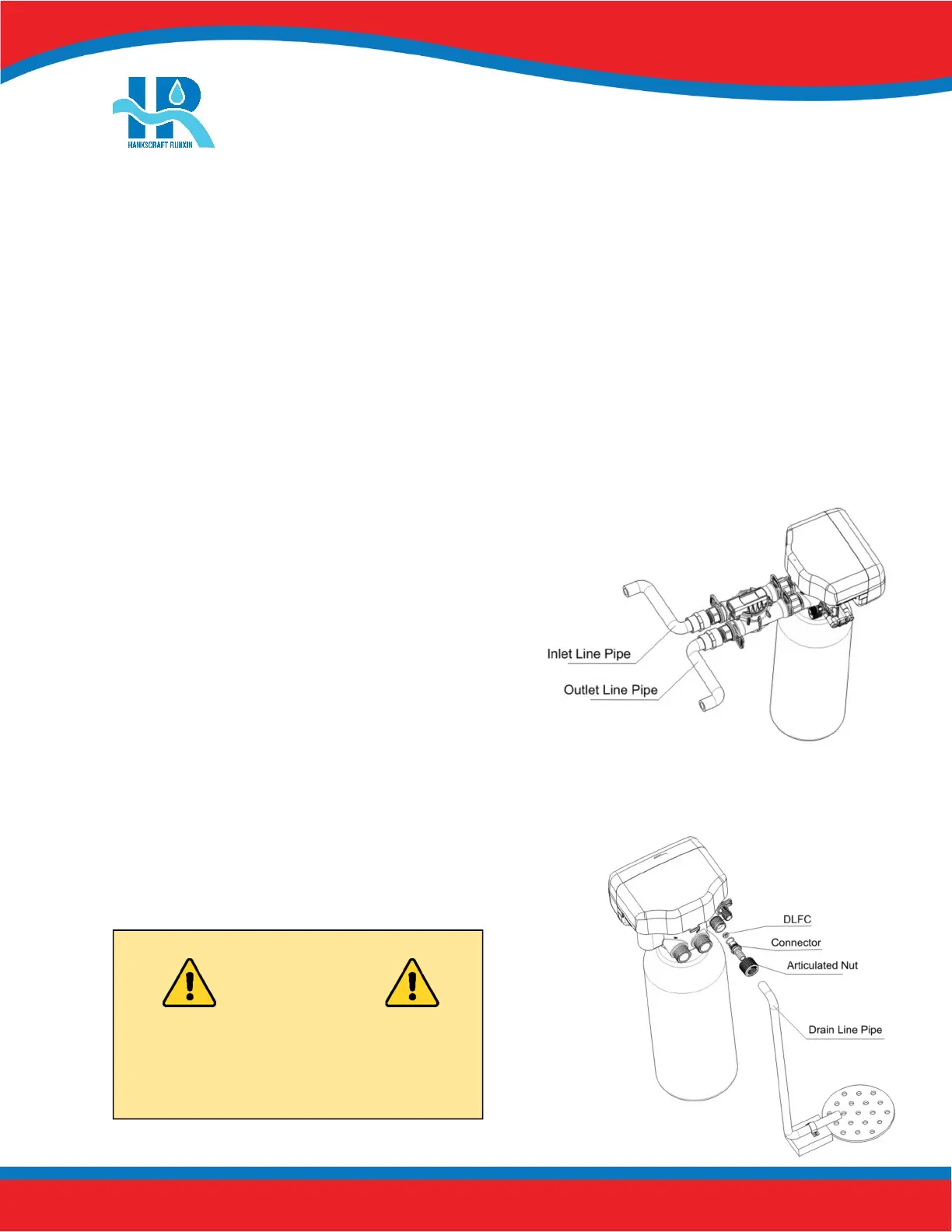

As Figure 9-1 shows; connect inlet pipe, via a 1" NPT female
connector, to the inlet connector of bypass. Repeat steps for
the outlet pipe.
Figure 9-1
Drain Line Installation
As Figure 9-2 shows; insert drain line with an air gap to the
floor drain. Valve drain hose not supplied.
Figure 9-2
CAUTION
An air gap is required between the drain line
and the drain (sewer). This avoids a syphon
effect and reverse contamination.
