RevV4 Valves & Systems Service Manual
33
Hankscraft Runxin, LLC 300 Wengel Drive 608.524.9465 hrh2o.com sales@hrh2o.com
Brine Line Connection

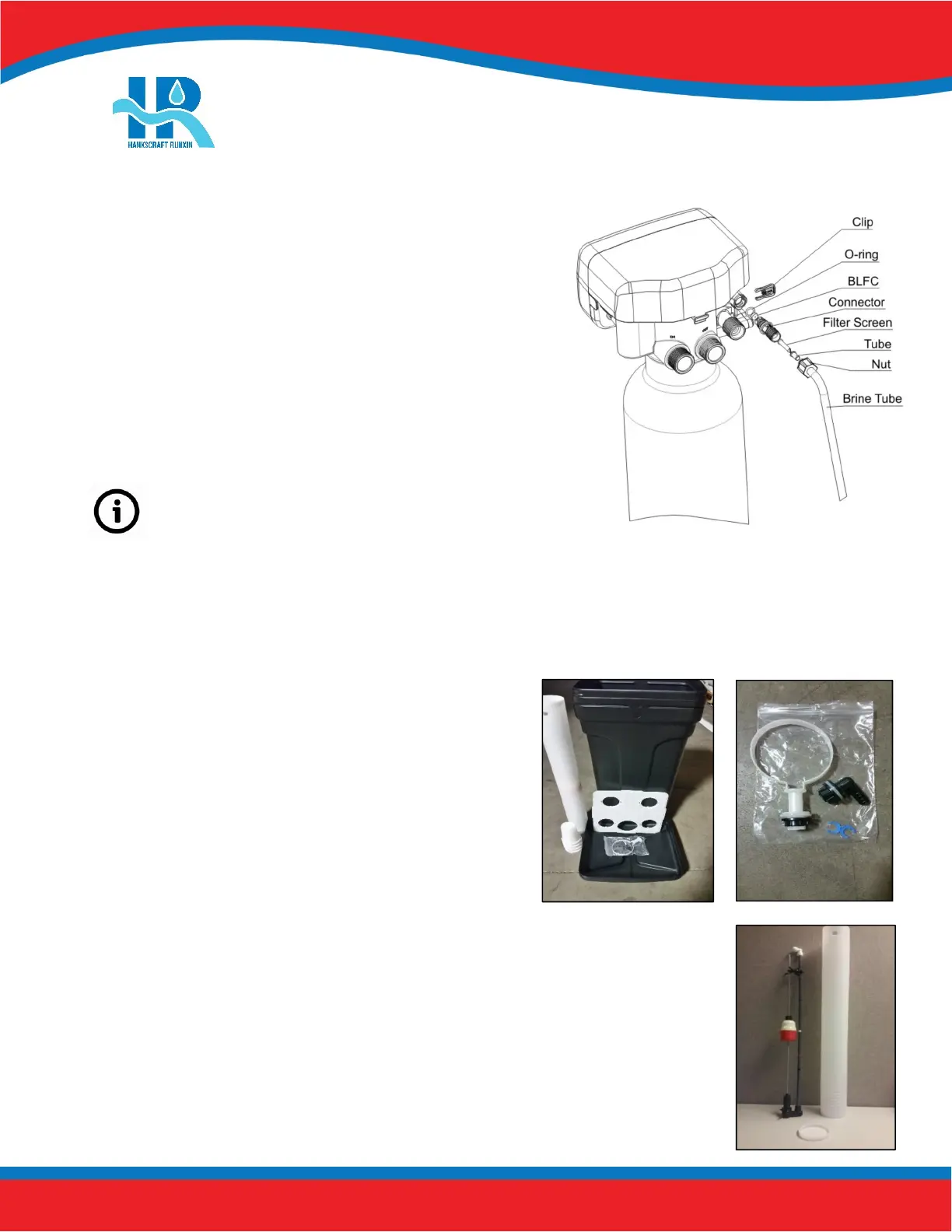

1. As Figure 9-3 shows; slide brine nut onto the 3/8"
brine tubing.
2. Install the filter screen into the ferrule and insert
the ferrule into the end of brine tube.
3. Insert tube into brine connector and tighten brine
nut to the brine connector.
Take care to not crimp or plug the brine line or drain line.
Figure 9-3
Brine Tank Installation
1. Unpack brine tank components
• Brine tank standoff with nut and washer
• Overflow elbow with nut and washer
• Optional quick connect clips
2. Open brine well and remove float. Ensure the
inside of the tank and brine well are free of debris.
To Next Page
