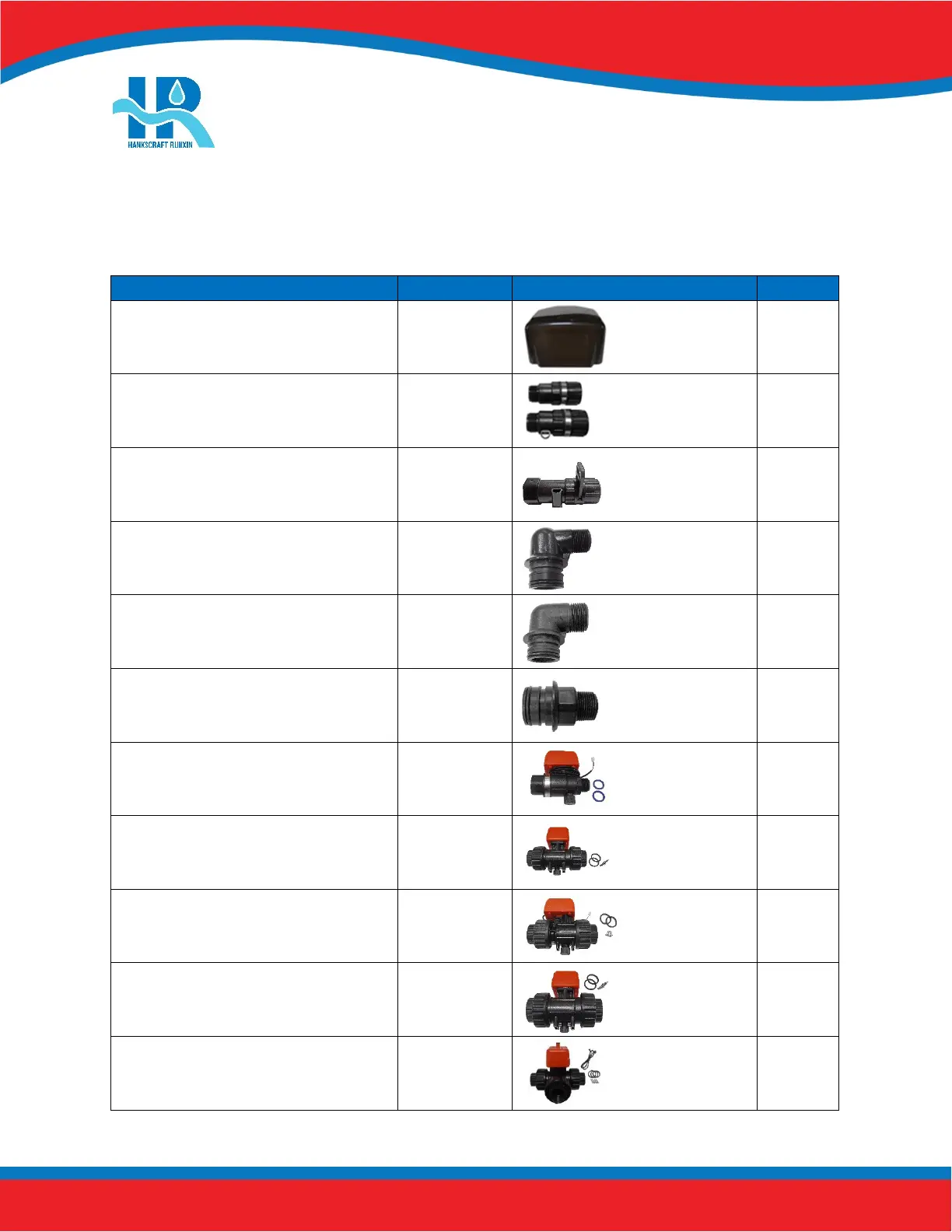

13. Accessories
Description Part Number Figure Quantity
Dust Cover 72605-CV 1
Animated Connector with Flow Meter AC/FM-F82 1 Pair
1" Inlet/Outlet Female to Female Adaptor REVV-208 1
¾" 90 ⁰ Inlet/Outlet Elbow REVV-209 1
1" 90 ⁰ Inlet/Outlet Elbow REVV-210 1
¾" Male Adaptor REVV-211 1
¾" Electronic 2-Way Ball Valve F93-B 1
1" Electronic 2-Way Ball Valve F93-C 1
1.5" Electronic 2-Way Ball Valve F93-D 1
2" Electronic 2-Way Ball Valve F93-E 1
1" Ceramic Tee 3-Way Ball Valve F94-C 1
