RevV4 Valves & Systems Service Manual
41
Hankscraft Runxin, LLC 300 Wengel Drive 608.524.9465 hrh2o.com sales@hrh2o.com

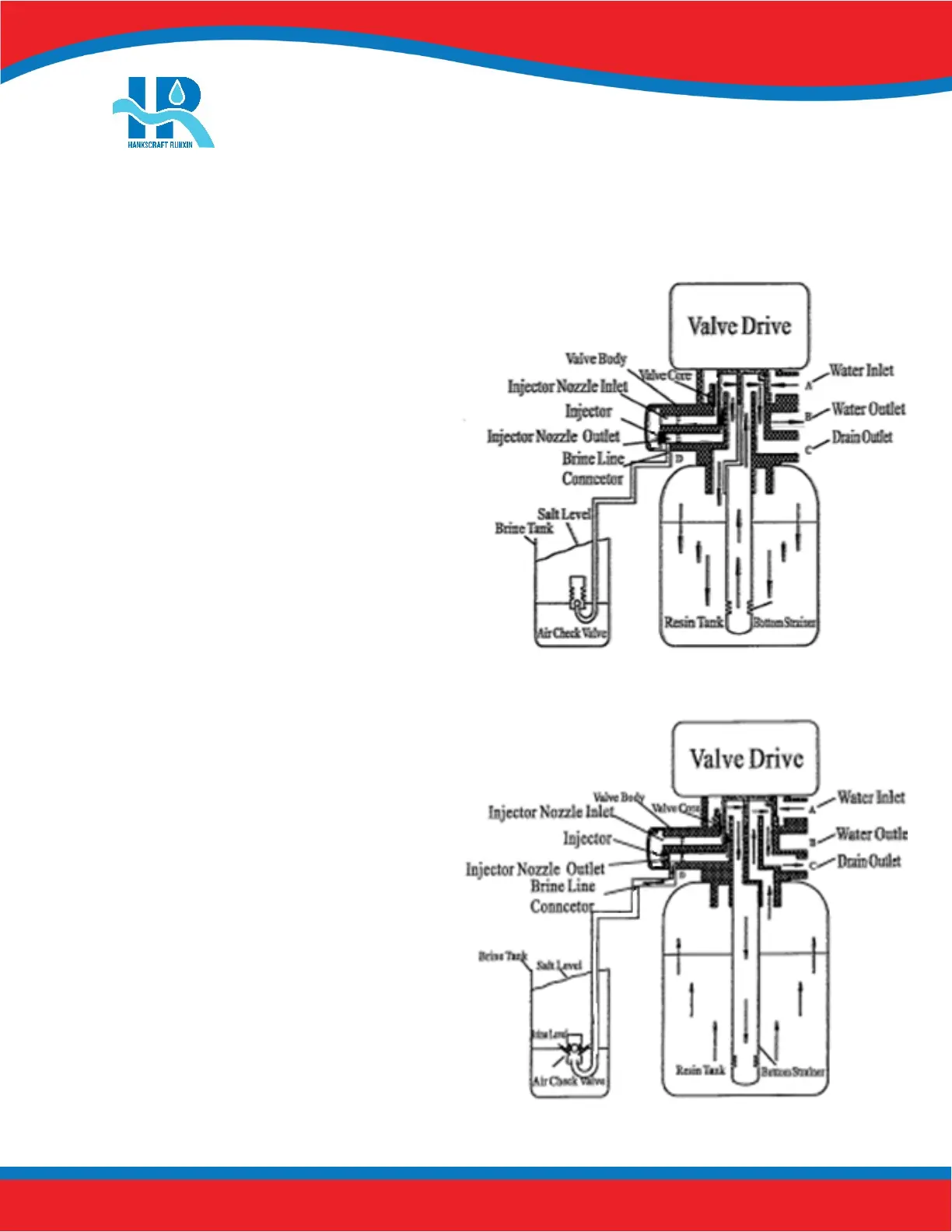

Water Flow Diagrams
Service Position
Raw water enters into the control valve from
water inlet A, from the top of valve core and
into the tank from top distributor. Then the
water moves down through the resin layers,
through bottom strainer and up through the
riser tube, through the valve core, and flows
out of water outlet B.
Backwash Position
Set to 0 for standard softeners and skipped.
Raw water enters into the control valve from
water inlet A, through valve body from the top
of valve core, then travels down through the
riser tube and up through the resin, into the
valve core, and finally flows out from drain
outlet C.
