Hankscraft Runxin RevV4 User Manual

RevV4 Valves & Systems Service Manual
42
Hankscraft Runxin, LLC 300 Wengel Drive 608.524.9465 hrh2o.com sales@hrh2o.com

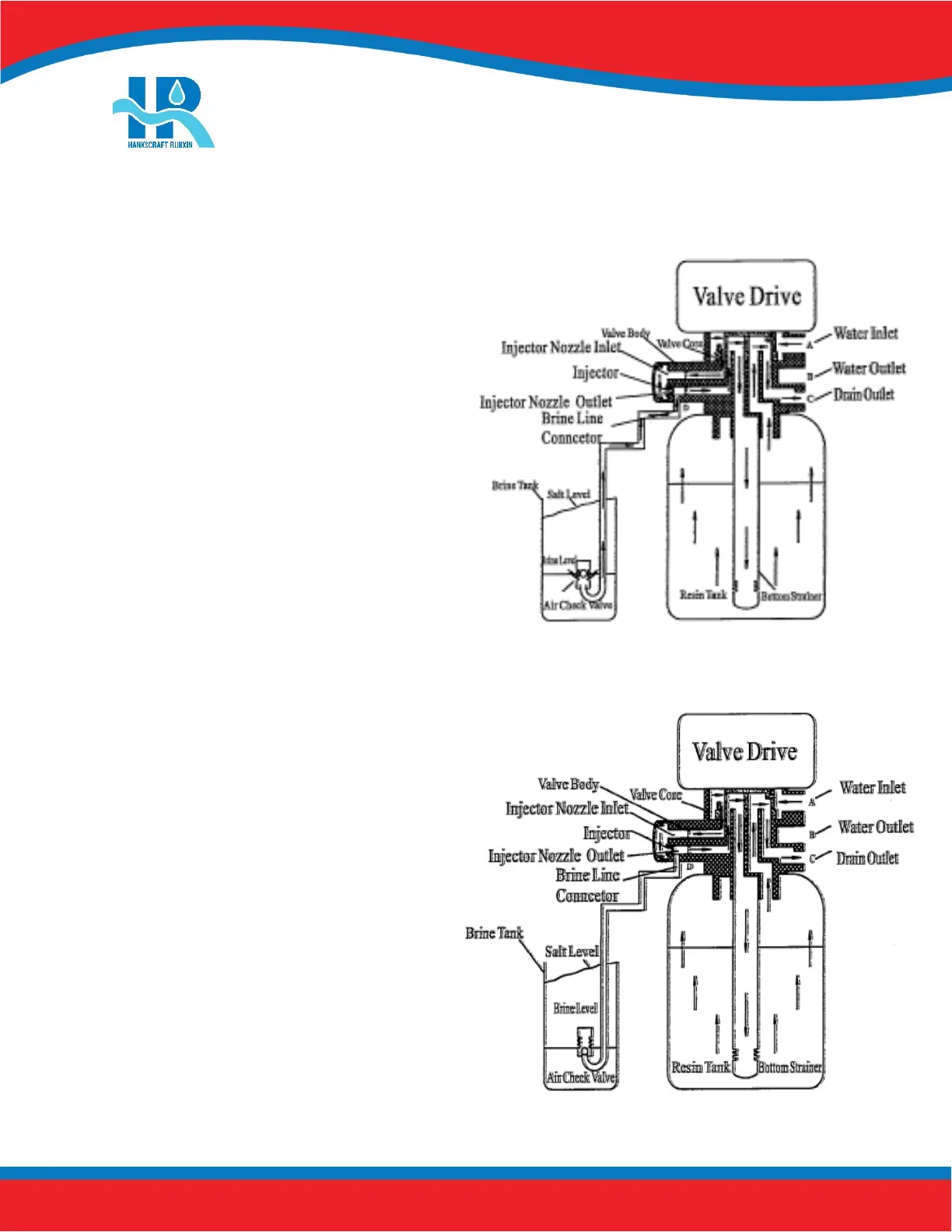

Brine Draw Position
Raw water enters into control valve from
water inlet A, through valve core into injector
inlet F, into the injector outlet E. This
produces negative pressure so the brine is
drawn into the valve. Water flow then goes
into the riser pipe, through the bottom
strainer into the tank, up through resin layer,
valve core, and then flows out drain outlet C.
Slow Rinse Position
After absorbing all salt, raw water enters into
control valve through water inlet A, through
valve core into the injector nozzle, passes
through the injector nozzle down to riser
pipe, through bottom strainer, into the valve
body, up through resin layer, into valve body,
valve core, and flows out of drain outlet C.

Hankscraft Runxin RevV4 Specifications

General

Brand	Hankscraft Runxin
Model	RevV4
Category	Control Unit
Language	English

Summary

2. Product Features and Applications

3. Product Dimensions and Specifications

4. Pre-Installation Checklist

5. Valve Installation

Unit Location

Plumbing and Mechanical Setup

Control Valve Installation

Step-by-step guide for installing the control valve onto the mineral tank.

6. Bypasses

7. Programming: Display and Instructions

Basic Programming

Adjust time values for each phase of operation.

Advanced Programming

Mode A-01: Meter Delay

Configures regeneration based on capacity and time delay.

Mode A-02: Meter Immediate

Configures immediate regeneration upon reaching zero capacity.

Mode A-03: Intelligent Meter Delay

Intelligent delay mode using capacity, hardness, and people count.

Mode A-04: Intelligent Meter Immediate

Intelligent immediate mode using capacity and hardness.

Mode A-05: Remaining Compare

Compares usage to historical data for regeneration timing.

Mode A-06: By Day (Timer)

Regeneration based on programmed service days and time.

Mode A-07: Filter Meter

Filter mode regeneration based on capacity and time.

8. PCB Functions and Connections

Signal Output

Signal Output Connector

Liquid Level Controller with Inlet Pump

Inlet Booster Pump

Interlock and Alternating Interlock

Remote Handling Connector

Interlock Options

9. System Installation

Valve Set-up and Installation

Plumbing Connections

Drain Line Installation

System Start-Up

Steps to follow for initial system start-up and verification.

Sanitation Procedure

10. Assembly Drawings and Parts List

11. Troubleshooting

Control Valve Troubleshooting

Lists common problems and their solutions for the control valve.

Electronics Troubleshooting

Addresses issues related to the control valve's electronic components and display.

12. Replacement Parts

15. Hankscraft Runxin, LLC Warranty Statement

16. System Configuration and Settings

Softener System Configuration

Valve Programming

17. Factory Default Settings
