RevV4 Valves & Systems Service Manual
44
Hankscraft Runxin, LLC 300 Wengel Drive 608.524.9465 hrh2o.com sales@hrh2o.com

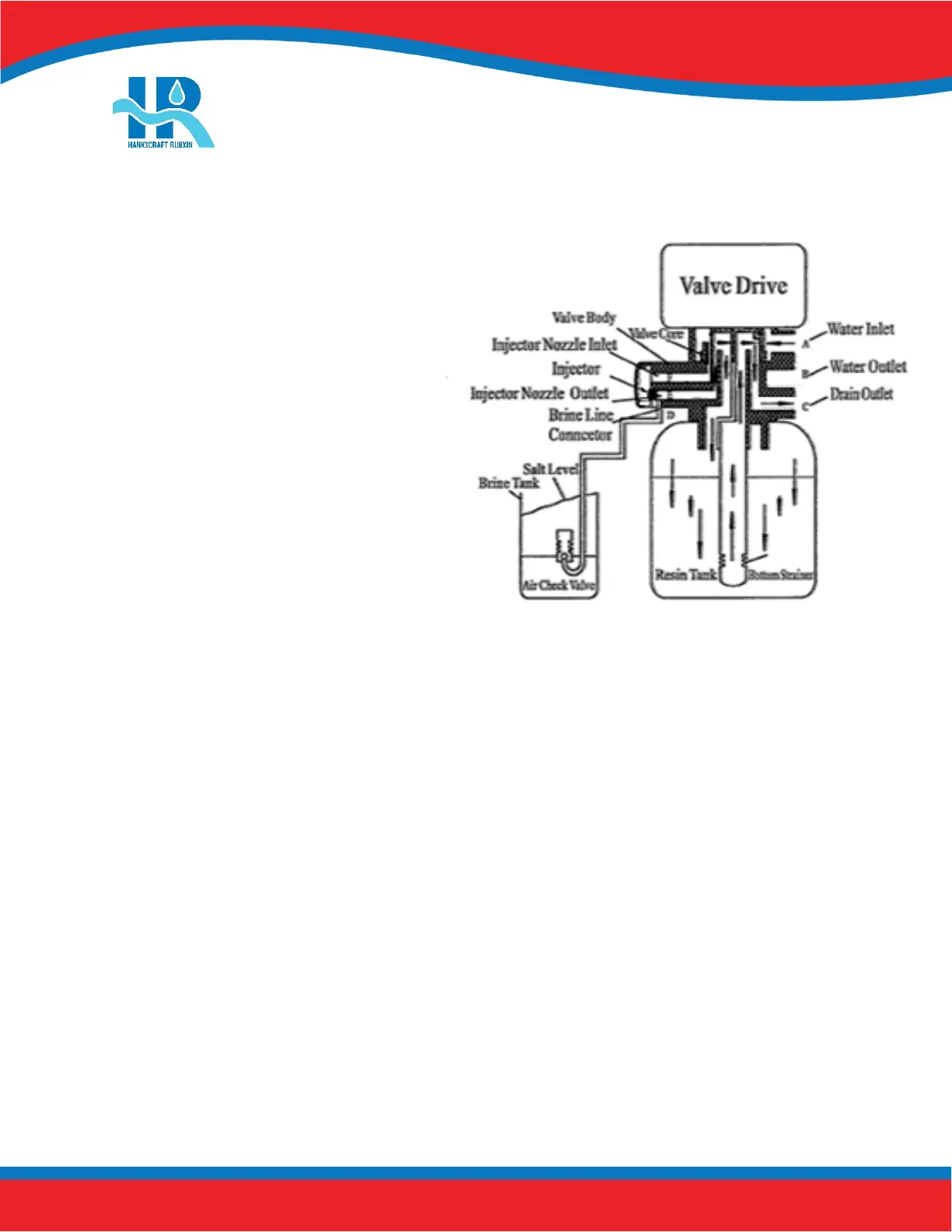

Fast Rinse Position
Raw water enters into the control valve from
water inlet A, through the top of the valve
core, into the tank from the top, down the
riser pipe through bottom strainer and up
through the resin layers, through valve core
and flows out to drain outlet C.
