6
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTION

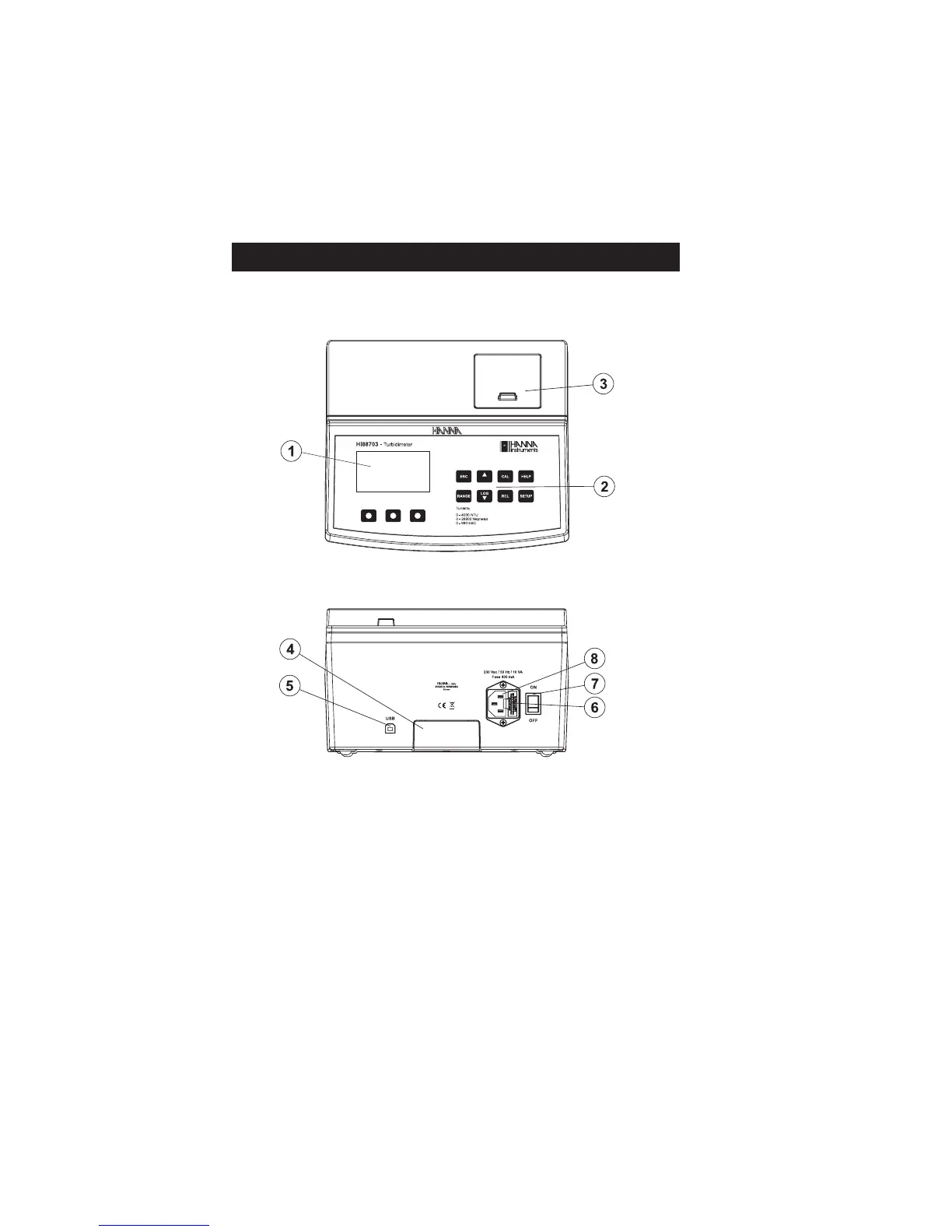

INSTRUMENT DESCRIPTION
1) Liquid Crystal Display (LCD). The LCD has backlight for better visibility in dark environments.
2) Keypad. Splash proof resistant.
3) Cuvet Lid. Close the cuvet lid prior to start a measurement.
4) Lamp lid and the related fixing screw
5) USB connector
6) Fuse holder
7) Mains switch
8) Mains connector
