2.3.5.2. ATTACHING STIRRER AND ELECTRODES
To attach the stirrer to the titrator, follow these steps:

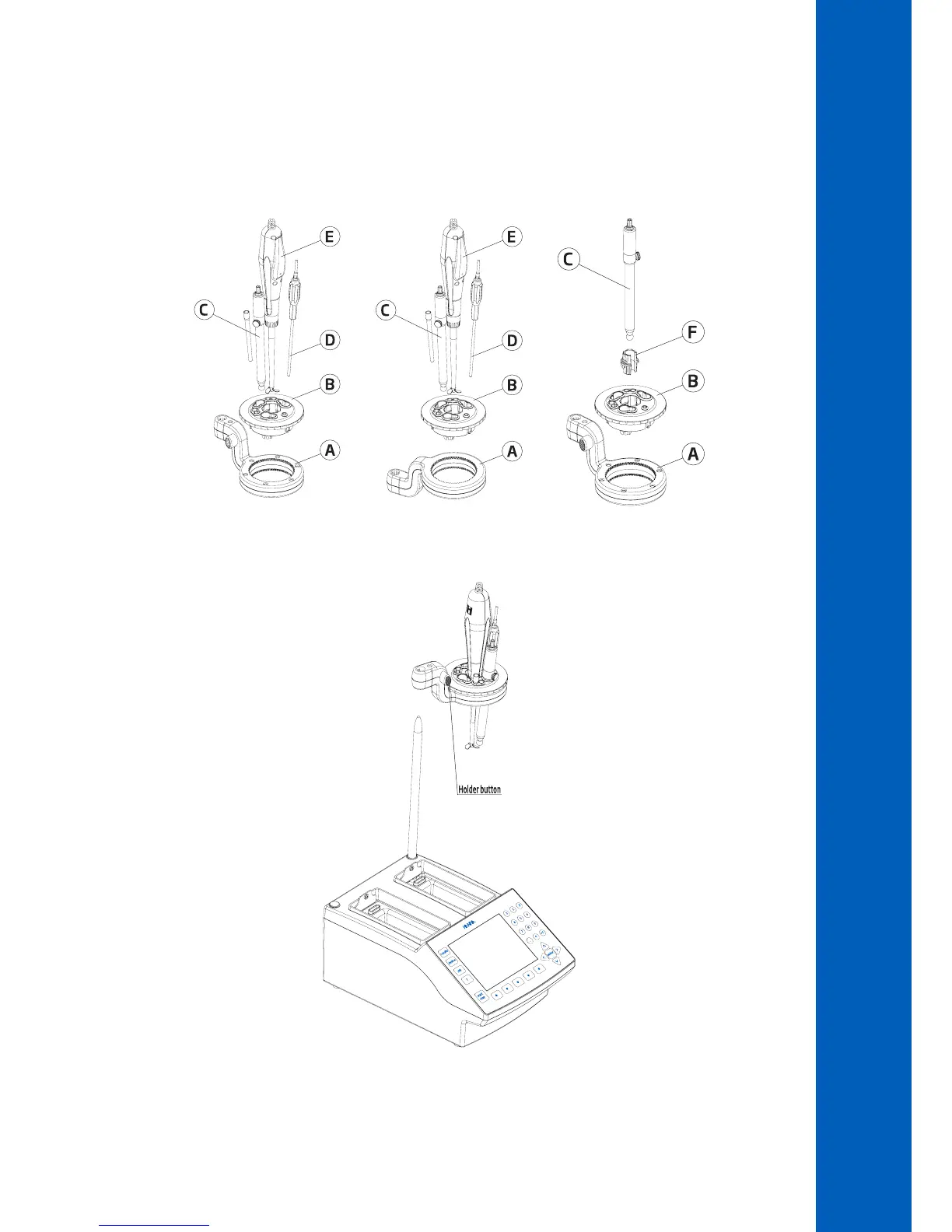

• Place the electrodes holder (B) in the stirrer support housing (A). Stirrer support housing can be inverted if necessary.
• Insert electrode (C), temperature sensor (D) and stirrer (E) into the dedicated holes in the electrode holder. Push them until
they are in stable position.
Note: For small sample sizes, use the electrode adapter (F) in the center of the holder.
• Slide the electrode holder into the support rod and set the desired height using the holder button.
