Hanna Instruments HI931 - Connecting the Pump

2-8
SETUP
2.3.5.3. CONNECTING THE PUMP
To connect the pump, follow these steps:
• Retrieve the pump cable from inside the bay. The pump 1 connector is located in the left bay and pump 2 in the right bay.

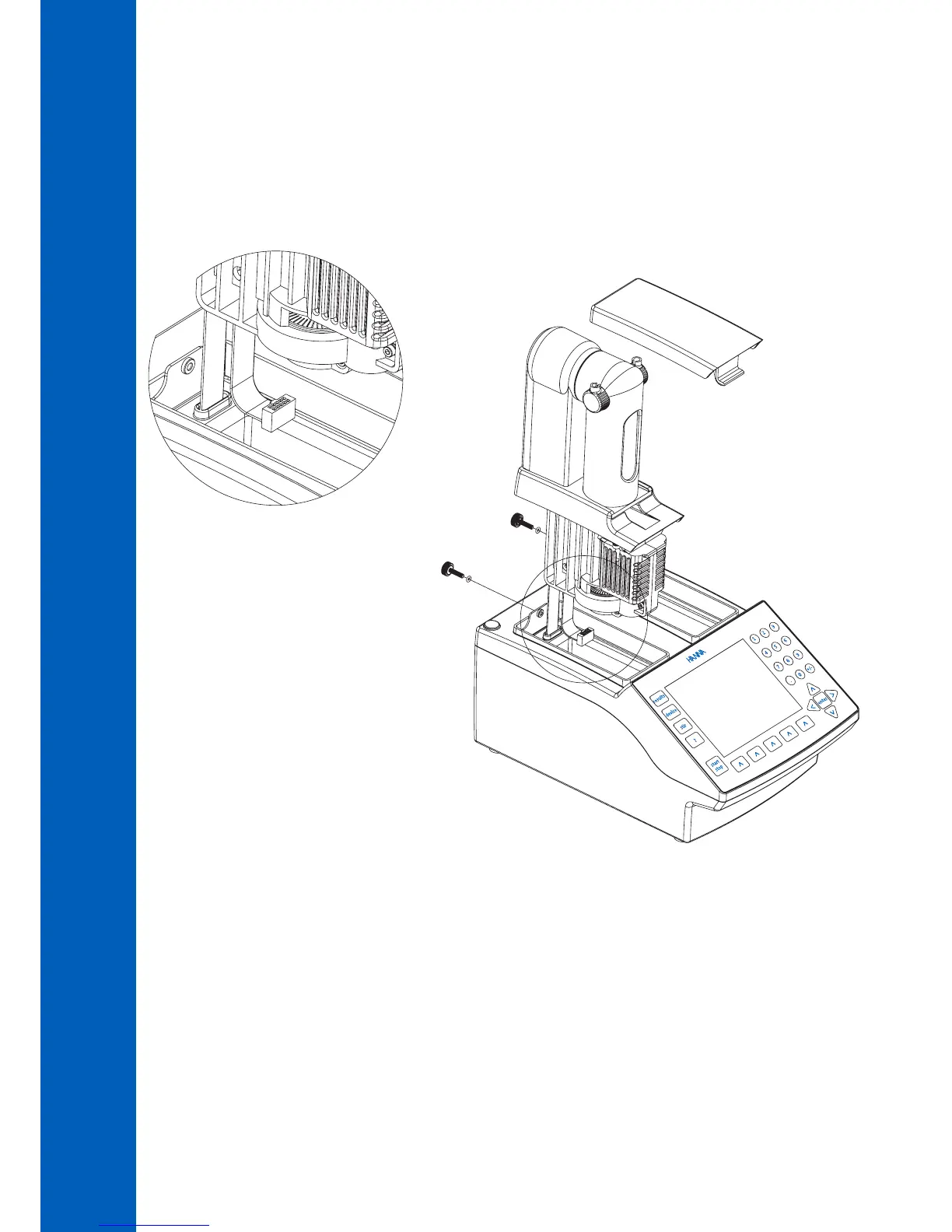

• Connect the cable to the pump as shown below. The pump connector is located on the bottom of the pump.
• Lower the pump into the titrator, then slide it towards the front of the titrator case until it is firmly latched.
• Secure the pump with the locking screw.
This procedure can be repeated to connect a second pump.
2.3.5.4. ATTACHING BURETTE BLANK SUPPORT
To attach the burette blank support, follow these steps:
• Insert burette blank support into the bay. Lower the burette blank support into the titrator, then slide it towards the front of
the titrator case until it is firmly latched.
• Secure the burette blank support with the locking screw.
