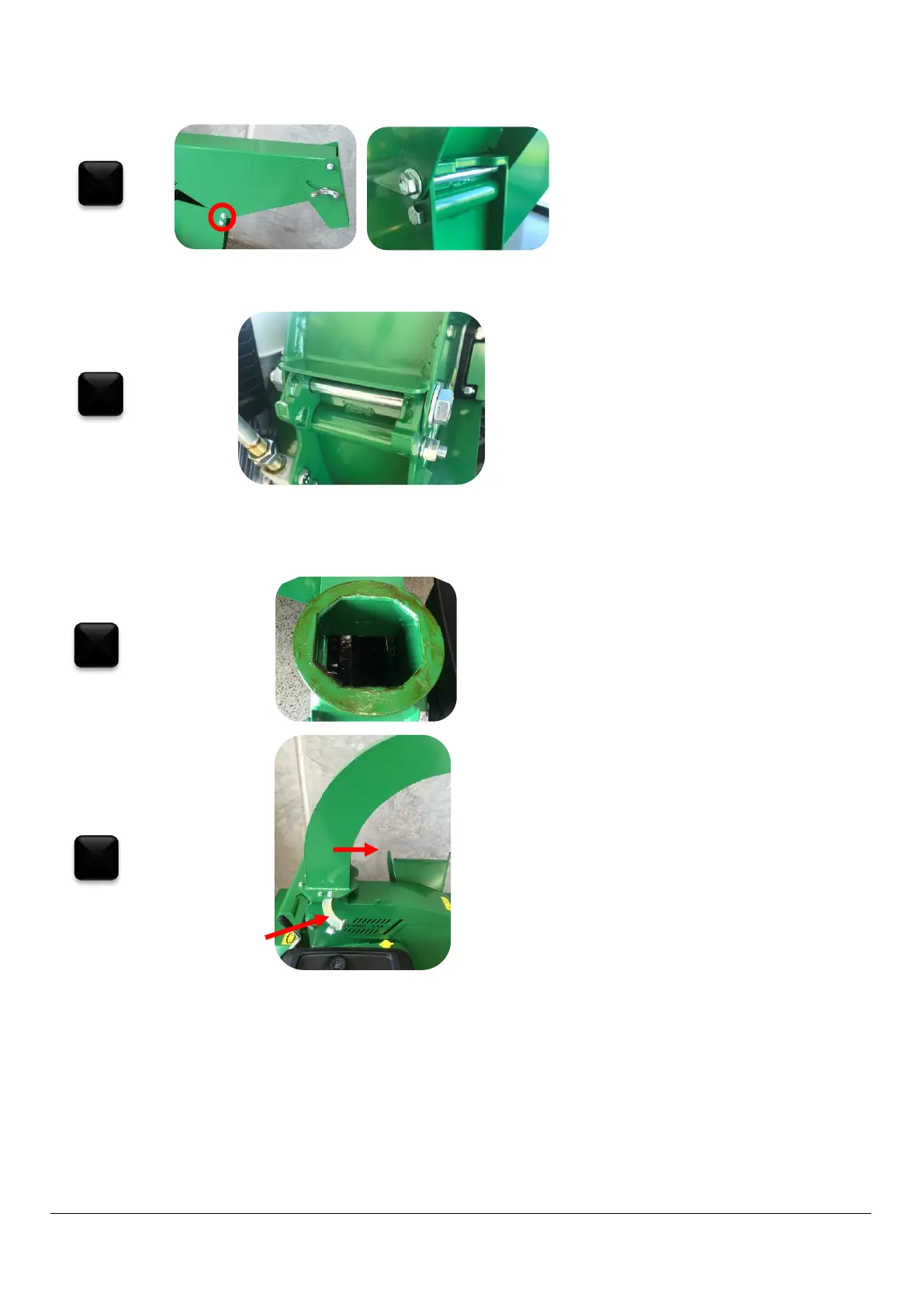

Fit the fixed outlet chute
Slide the outlet chute over the black
cutting rotor onto the chipper body;
the open side of the chute is facing
the engagement handle. Fix the
outlet chute to the chipper body by
tightening the pivot bolt using a 16
mm and 17 mm spanner.
Secure the m16 bolt, washers and nut
through the hole in the base of the
outlet chute to hold the outlet chute
shut. Ensure the spring washer is
situated between the nut and the
heavy washer. Tighten the bolt and
nut using two 24mm spanners
Fit the swivel outlet chute
Lightly grease the flange on the chipper
body.
Slide the outlet chute onto the greased
flange of the chipper body, ensuring
that the locking hinge is open.
1
2
1
2
Locking
hinge
