Engine LED panel
The engine LED panel has a self-contained engine safety shutdown system as well as a number of warning indicators.
Hour meter / tachometer
The AFC LCD display will toggle between the current engine RPM and machine hours every 5 seconds. Alternatively, the operator
can toggle between the two by pushing the ‘Set’ button.
Hydraulic Winch
Specifications
Model: Comeup HV-3
Rope type: Rope type: 50m DynIce 75 or equivalent (minimum break load 4.2 ton)
Line pull: 1400 kg max
Line speed – 20m/min
Winch operation:
The winch is operated via a control panel near the base of the winch unit. The switch on the right controls whether the winch is
being extended or retracted. The switch on the left toggles between remote control and manual control (via the chipper body).
Note: You may only operate the winch while the feed roller is in the neutral position.

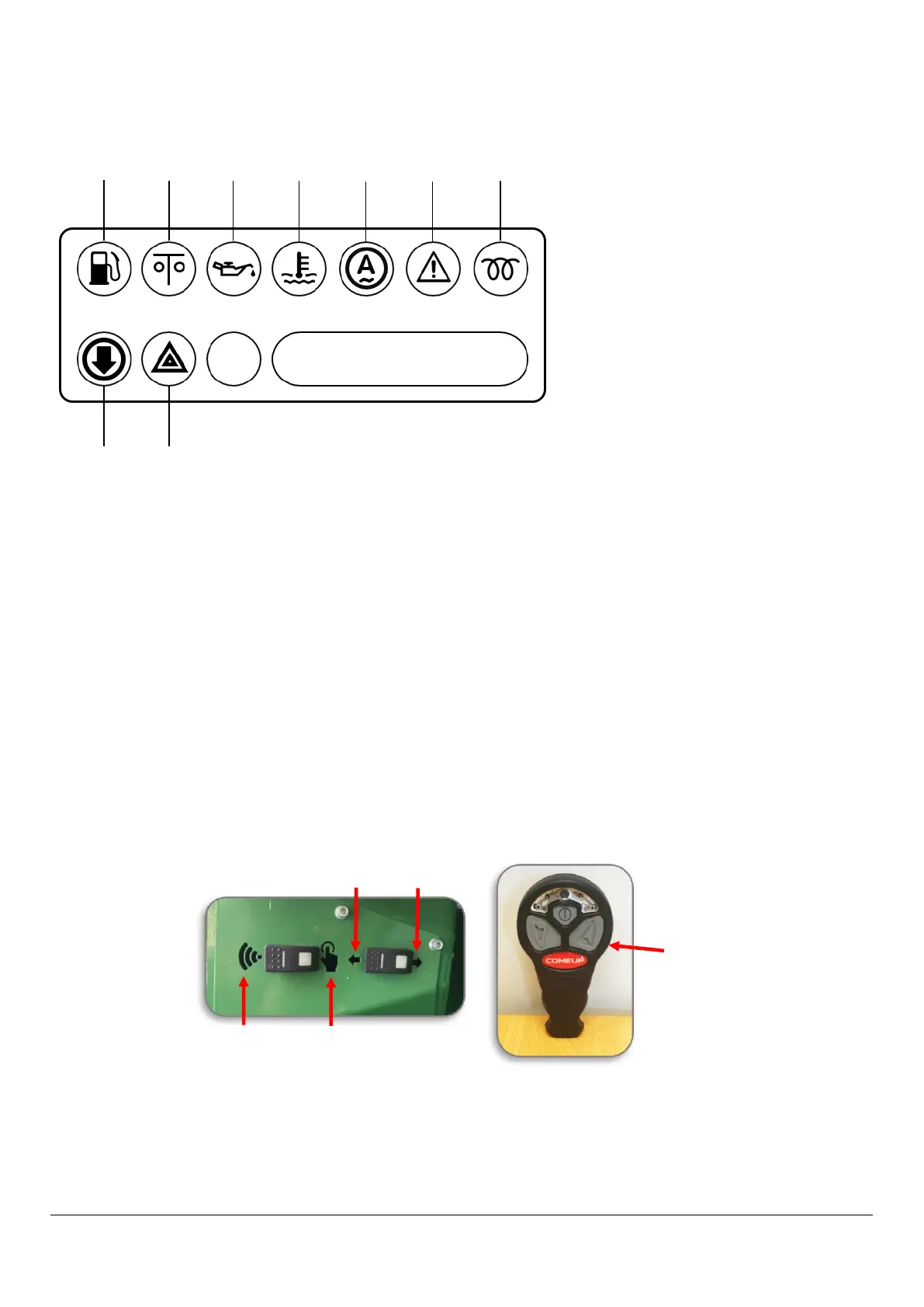

1 – Low fuel indicator
2 – Engine shutdown system activated
3 – Low oil pressure
4 – High coolant temperature
5 – Low alternator output
6 – Auxiliary shutdown
7 – Glow plug active
8 – Air filter restriction
9 – Auxiliary warning lamp
To Next Page
