16

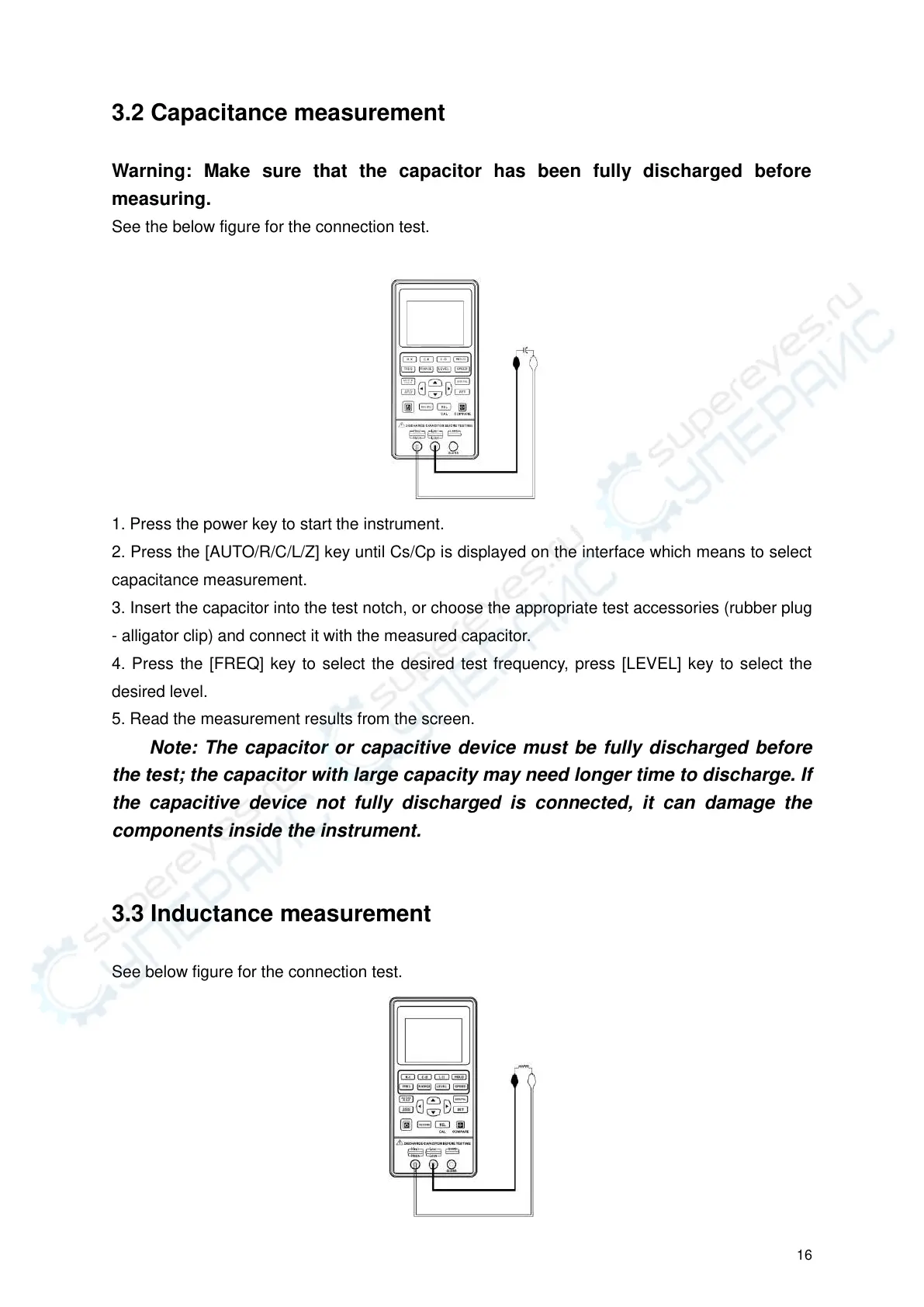

3.2 Capacitance measurement
Warning: Make sure that the capacitor has been fully discharged before
measuring.
See the below figure for the connection test.
1. Press the power key to start the instrument.
2. Press the [AUTO/R/C/L/Z] key until Cs/Cp is displayed on the interface which means to select
capacitance measurement.
3. Insert the capacitor into the test notch, or choose the appropriate test accessories (rubber plug
- alligator clip) and connect it with the measured capacitor.
4. Press the [FREQ] key to select the desired test frequency, press [LEVEL] key to select the
desired level.
5. Read the measurement results from the screen.
Note: The capacitor or capacitive device must be fully discharged before
the test; the capacitor with large capacity may need longer time to discharge. If
the capacitive device not fully discharged is connected, it can damage the
components inside the instrument.
3.3 Inductance measurement
See below figure for the connection test.
