6

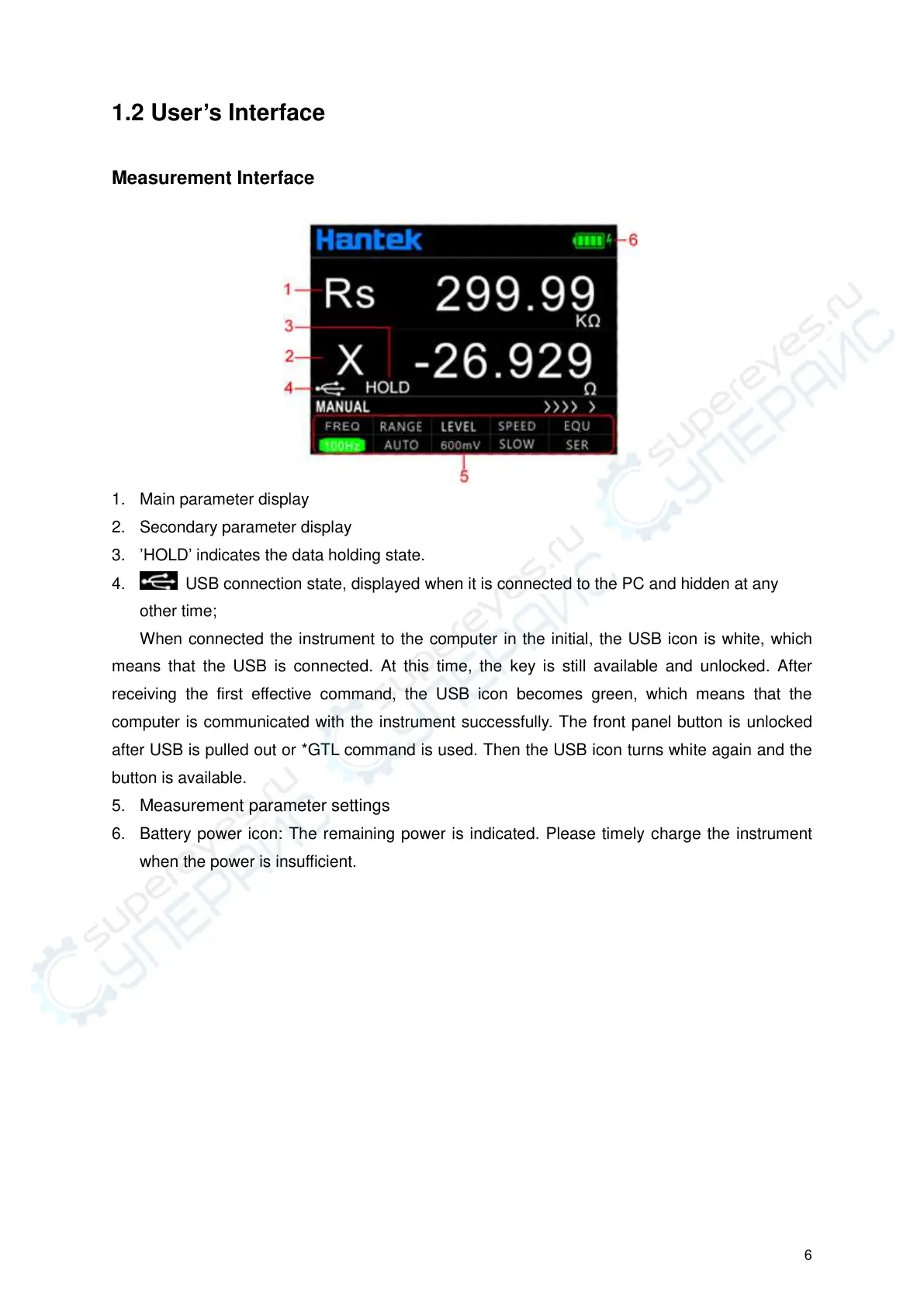

1.2 User’s Interface
Measurement Interface
1. Main parameter display
2. Secondary parameter display
3. ’HOLD’ indicates the data holding state.
4. USB connection state, displayed when it is connected to the PC and hidden at any
other time;
When connected the instrument to the computer in the initial, the USB icon is white, which
means that the USB is connected. At this time, the key is still available and unlocked. After
receiving the first effective command, the USB icon becomes green, which means that the
computer is communicated with the instrument successfully. The front panel button is unlocked
after USB is pulled out or *GTL command is used. Then the USB icon turns white again and the
button is available.
5. Measurement parameter settings
6. Battery power icon: The remaining power is indicated. Please timely charge the instrument
when the power is insufficient.
