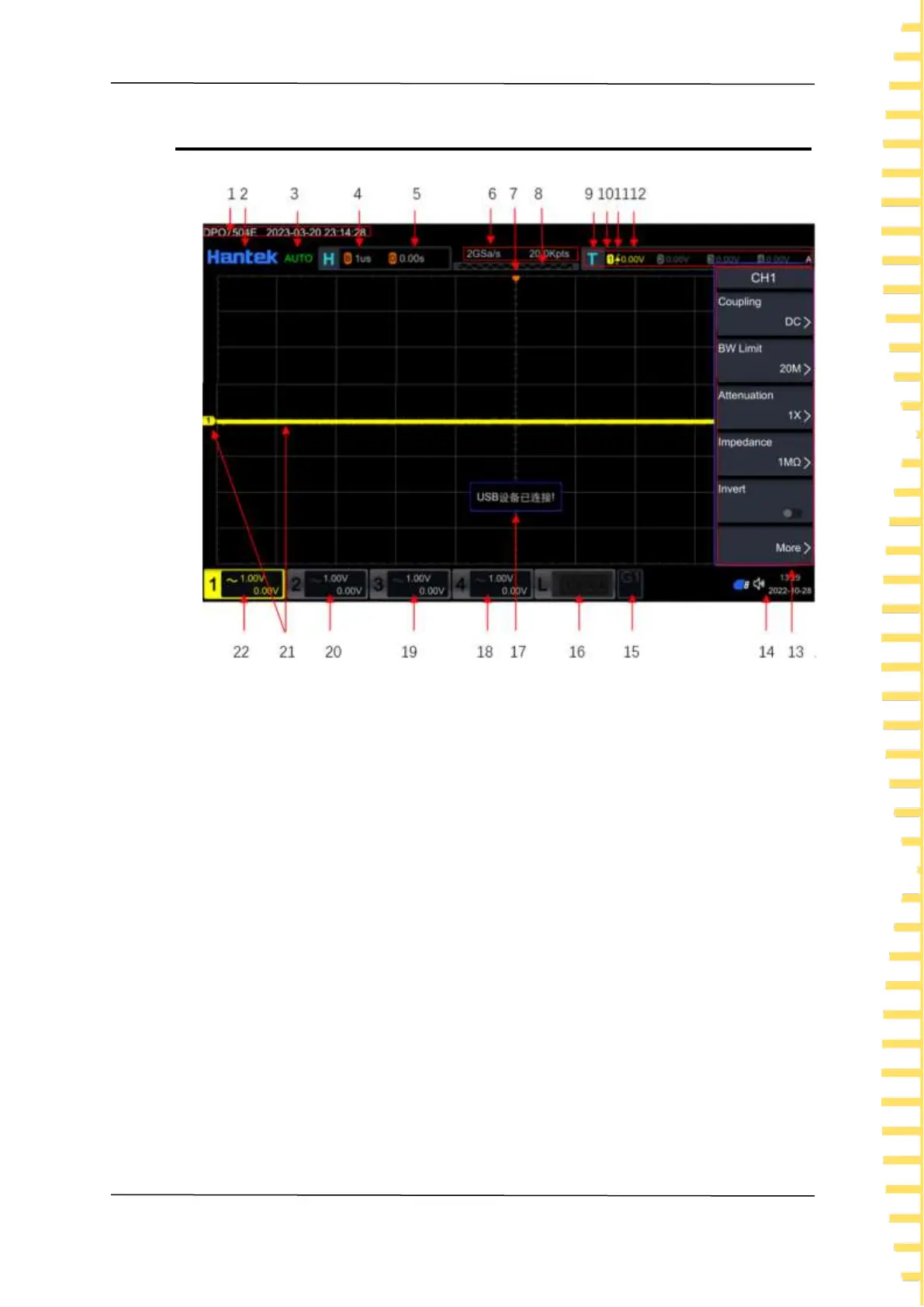

4.3 User Interface
1、 Model and time:
Display the specific model and time of the machine.
2、 Hantek logo, function navigation:
Click on the icon using the touch screen function to open the function navigation.
3、 Running status:
The operating status of the oscilloscope includes: RUN, STOP, TD, WAIT, and
AUTO.
4、 Horizontal time base:
Represents the length of time represented by each grid on the horizontal axis of
the screen. The horizontal knob can be used to modify this parameter.
5、 Horizontal displacement:
Adjust the parameters through the horizontal knob to display the specific horizontal
position value.
6、 Sampling rate/storage depth:
