6 Touch Screen Controls
This series of oscilloscopes provides a 10.1 inch super capacitive touch screen, which
supports multi-touch and gesture operation with high sensitivity. The functions
supported by the touch screen include touch, drag, pinch, and rectangle drawing.
Tip:
The menus displayed on the oscilloscope screen and the enabled label buttons
on the screen can both use the touch screen function.

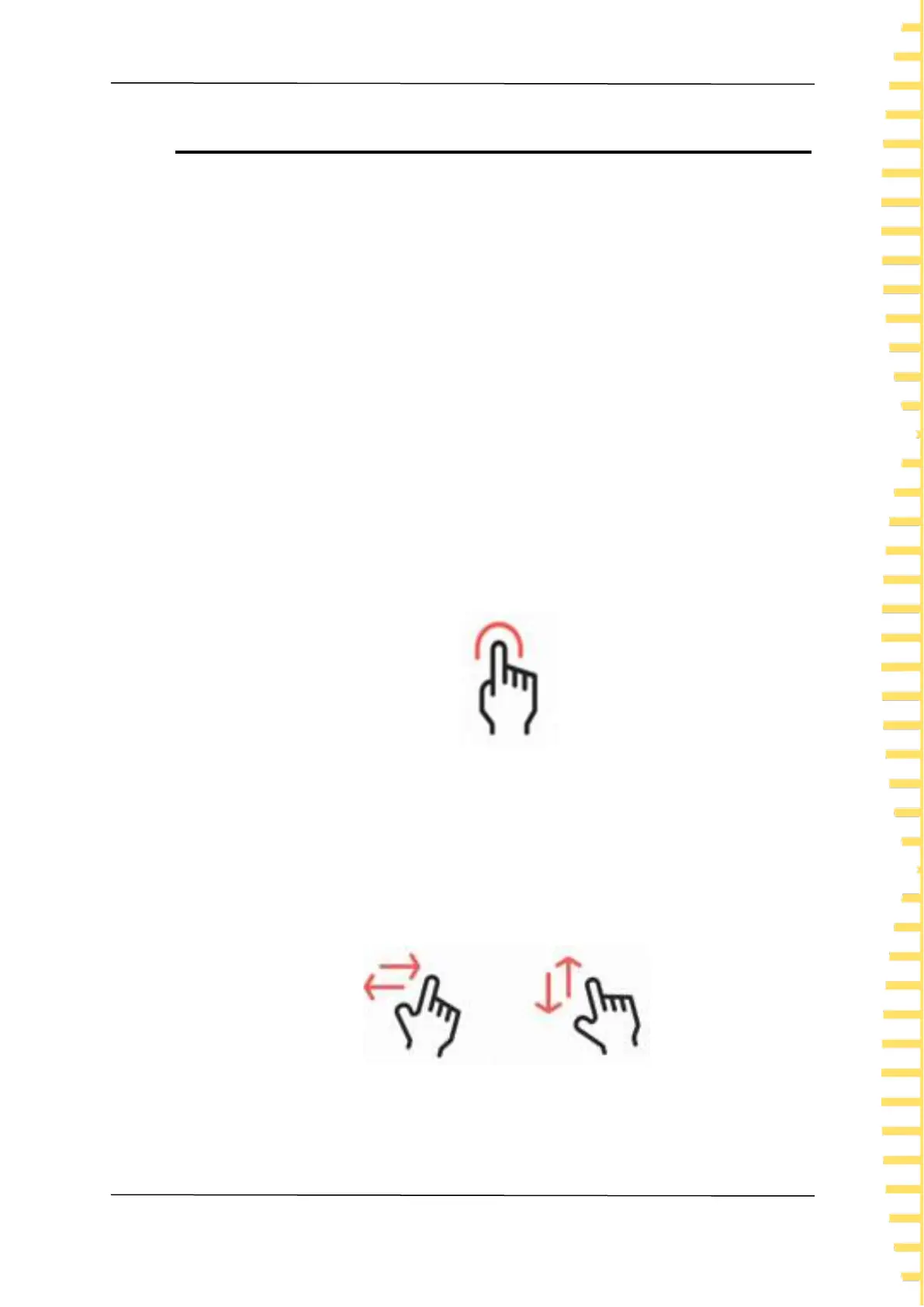

1、 Tap:
Tap a menu or function on the screen with one finger, and the functions that can be
achieved by touching include:
⚫ Touch the menu displayed on the screen to operate the menu.
⚫ Touch the pop-up numeric keyboard to set parameters.
⚫ Touch the virtual keyboard to set the tag name and file name.
⚫ Touch the close button in the upper right corner of the pop-up menu to close the
pop-up box.
⚫ Touch other windows displayed on the screen to operate them.
2、 Drag:
After holding down the target, drag to the desired position. The functions that can be
achieved by dragging include:
⚫ Drag the waveform to change its displacement or offset.
⚫ Drag the window to change its position.
⚫ Drag the cursor to change its position.
3、 Pinch & Stretch:
Bring two fingers together or apart. Pinching gestures can amplify or reduce the
waveform. Enlarge the waveform and slide the close fingers apart; Reduce the
