select "OK" and press "Enter" button to confirm.
4. Set offset
Press F4 button to enter the second page. Press F2 to select Offset, then use the up,
down, left and right direction keys to adjust the frequency, press F2 button to open the
digital keyboard again, use the up, down, left, right direction keys and "Enter" key to
set frequency parameter, select "OK" and press "Enter" button to confirm.
5. Set duty cycle
enter the second page. Press F3 to select Duty, then use the up, down, left and right
direction keys to adjust the frequency, press F3 button to open the digital keyboard
again, use the up, down, left, right direction keys and "Enter" key to set frequency
parameter, select "OK" and press "Enter" button to confirm.
6. Generate an arbitrary waveform
It is necessary to edit the arbitrary waveform in connection with the software and
download it into the machine. There are 4 arbitrary wave positions, and each position
can permanently store an arbitrary wave.
7. After setting the waveform parameters, press the button to turn on or off the
signal output. The output waveform of the signal generator can be observed through
an oscilloscope.

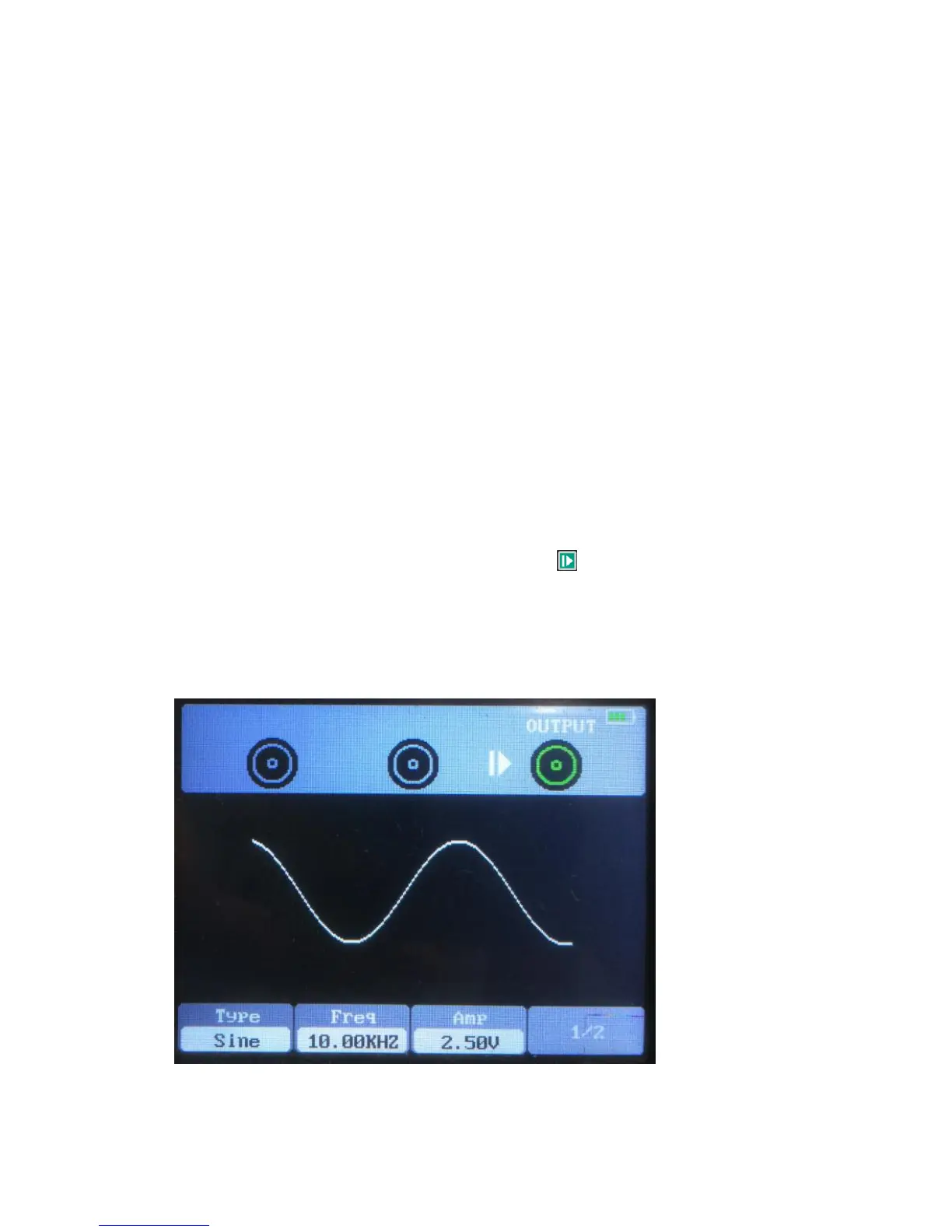

For example, set a sine waveform with 2Vpp@10KHz to output as follows:
