Generator
This chapter introduces the function of waveform generator.

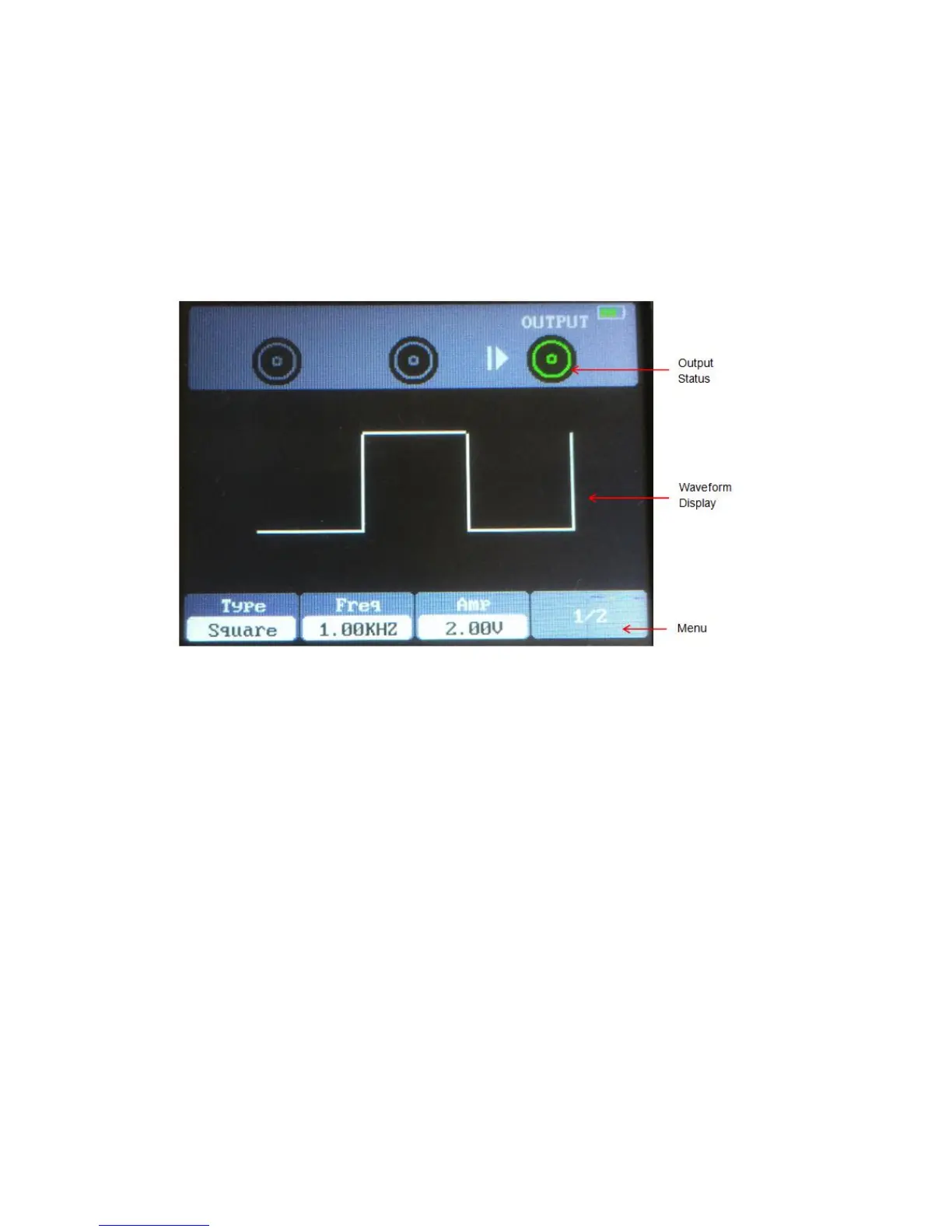

Interface
Operation description
Press the power button to turn on, then press the "AWG" button to enter the waveform
generator function interface.
1. Set type
Press F1 button to select the desired signal waveform, the optional waveform type
includes square, triangle, sine, trapezoidal and four arbitrary.
2. Set frequency
Press F2 button to select Frequency, then use the up, down, left and right direction
keys to adjust the frequency, press F2 button to open the digital keyboard again, use
the up, down, left, right direction keys and "Enter" key to set frequency parameter,
select "OK" and press "Enter" button to confirm.
3. Set amplitude
Press F3 button to select Amplitude, then use the up, down, left and right direction
keys to adjust the frequency, press F3 button to open the digital keyboard again, use
the up, down, left, right direction keys and "Enter" key to set frequency parameter,
To Next Page
