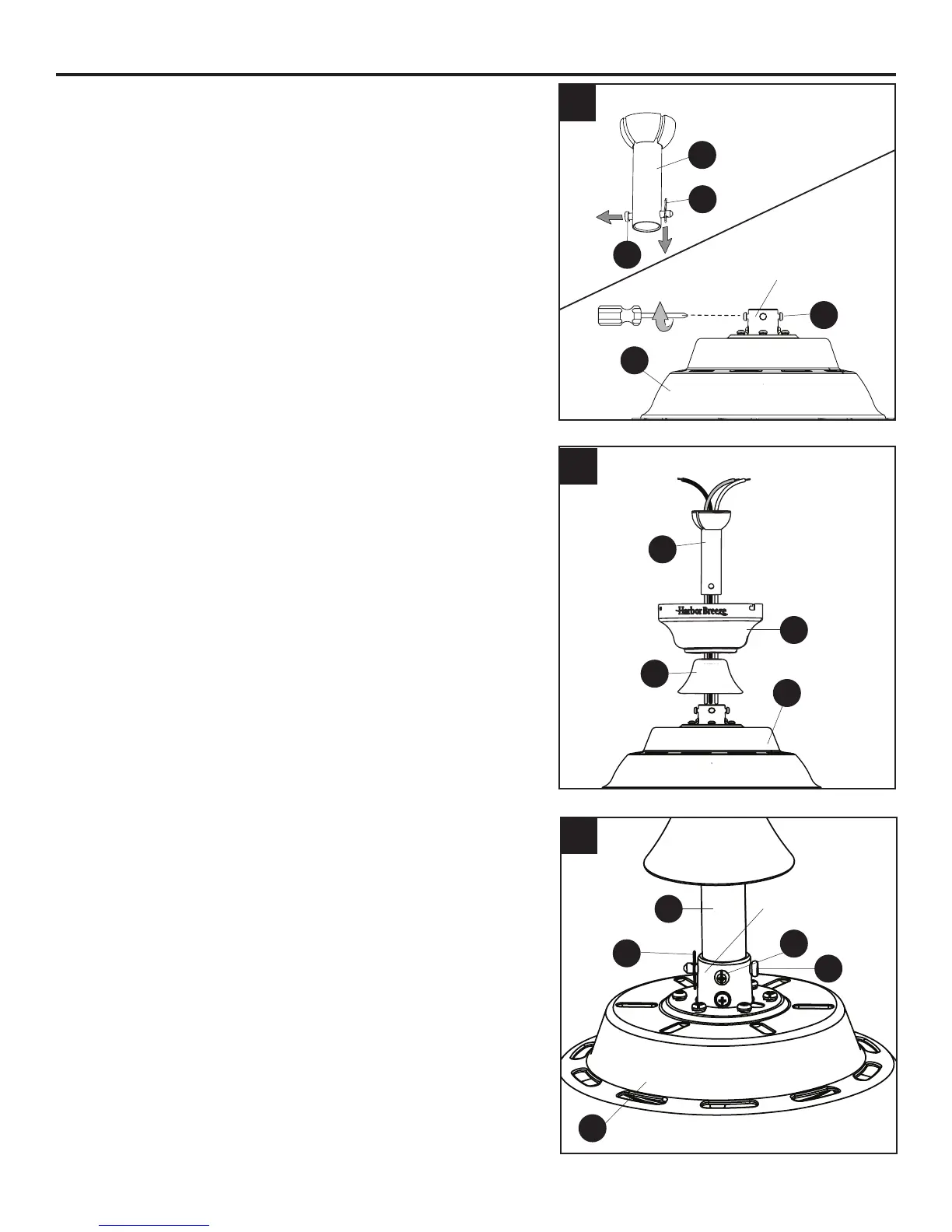

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C) from
the downrod (A). Then, partially loosen the set screws
(Q) in the yoke at the top of the motor assembly (G).
2. Insert the downrod (A) through the canopy (E) and yoke
cover (O). Feed the wires from the motor assembly (G)
through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (Q).
A
G
B
C
Q
2
E
A
O
G
3
A
C
Q
B
G
Yoke
1
Yoke
