MOUNTING THE CONTROL PENDANT IN OPERATING POSITION
- NOTE -
T-51 and T-65 lathes shipped in containers have the control pendant mounted at
the right end of the machine during shipment.
Door lock “J”, Figure 1.19, is located on the top of the machine.
1. Manually release the guard door lock:
A) Remove cap screw “K”, Figure 1.20, from the door lock.
B) Using the key attached to the door lock or a large flat blade screwdriver, rotate manual
release “L”, Figure 1.21, clockwise to allow the guard door to be opened.
2. Open the guard door.
M-507C 1-15

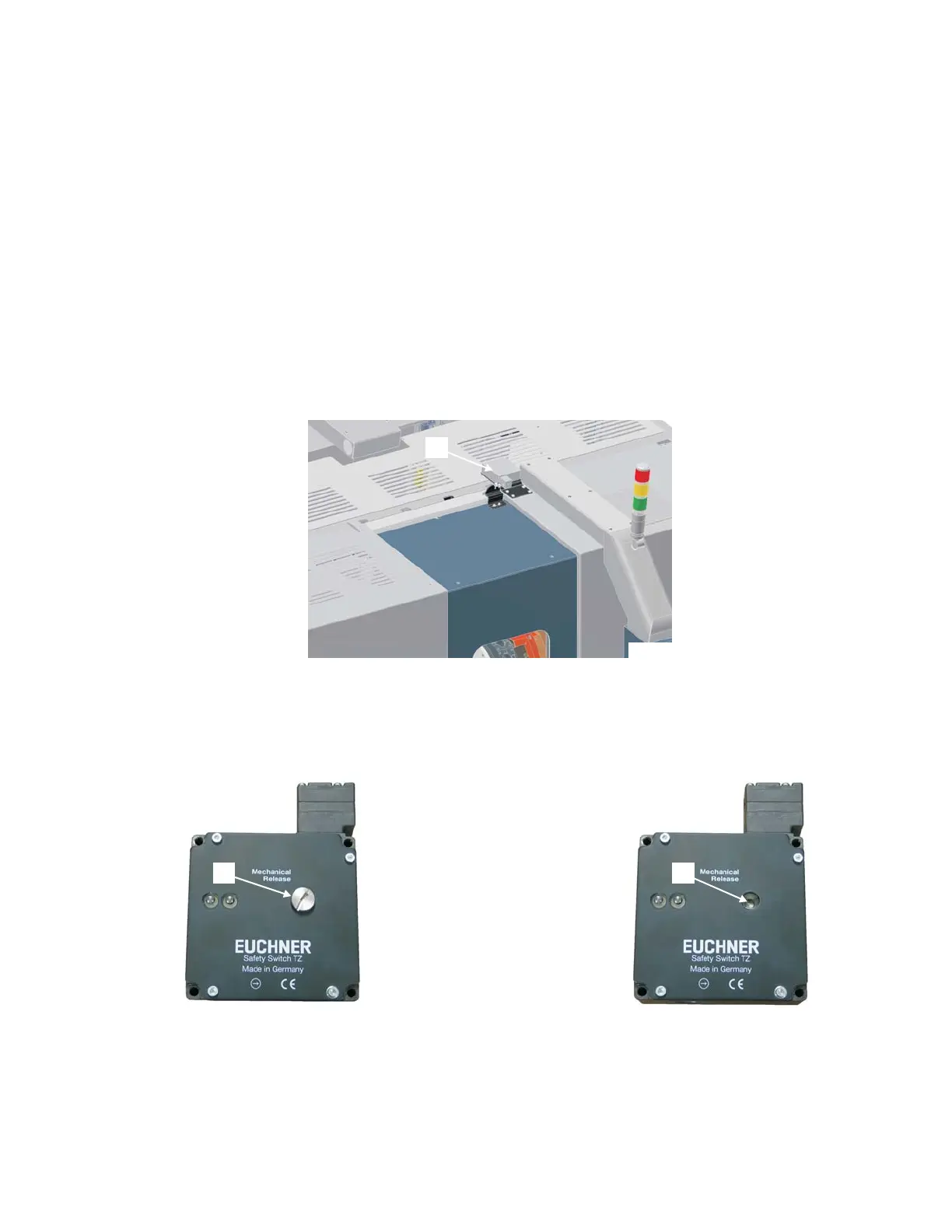

Figure 1.19 - Door Lock Location
TP7995
J
Figure 1.20 - Cap Screw
on the Door Lock
TP8031
K
Figure 1.21 - Door Lock
Mechanical Release
TP8032
L
