LUBRICATION PROCEDURE
- NOTE -
The Y axis is an optional feature.
1. Power up the machine.
2. If necessary, jog the turret to a safe position to perform a reference return for the X and Z axes.
3. Press the Rapid Reference mode push button.
4. Press the X Axis Select push button.
5. Press the upper X/Y push button to move the X axis the reference position.
6. Press the Z Axis Select push button.
7. Press the right Z/E push button to move the Z axis the reference position.
8. Press the Jog mode push button.
9. Press the E Axis Select push button.
10. Press the Z/E push buttons to move the E axis (tailstock or sub-spindle) toward the main
spindle to gain access to cover "H", Figure 2.6.
11. Open the main guard door.
12. Power down the machine.
13. Remove cover "H", Figure 2.6, to gain access to E axis grease manifold "I", Figure 2.7.
14. Release latch "J", Figure 2.8, and open the doors to gain access the X, Y and Z axis grease
manifolds. Refer to Figure 2.9.
15. Wipe each grease fitting clean.
2-6 M-507C

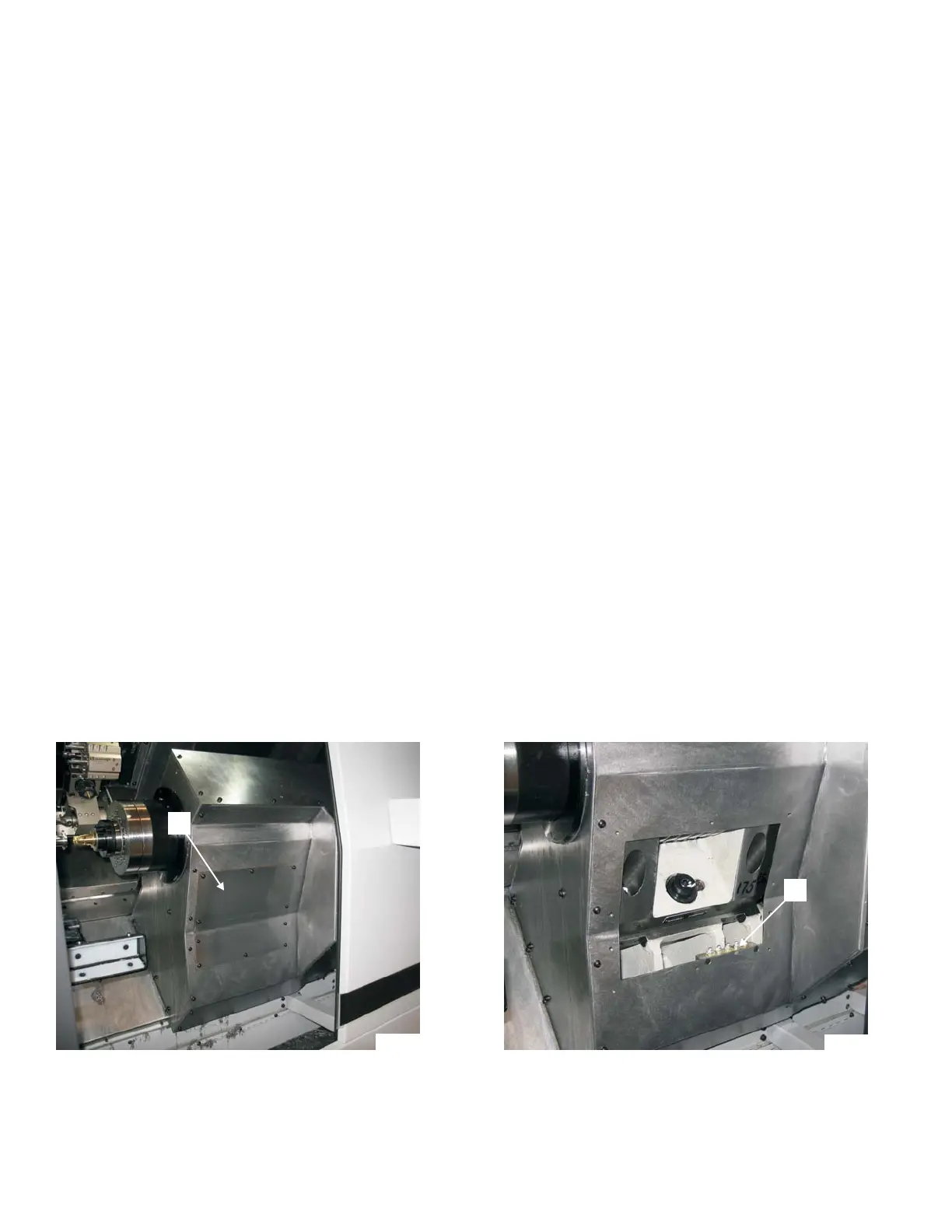

Figure 2.6 - Access Cover for
E Axis Grease Manifold
H
TP7945
Figure 2.7 - E Axis Grease Manifold
I
TP7946
