COOLANT CHILLER INSTALLATION
- NOTE -
The coolant chiller is a standard feature on Super-Precision
®
machines.
The coolant chiller is a stand-alone unit that reduces and stabilizes the temperature of the coolant.
Refer to the chiller installation and maintenance manual for additional information. Keep the chiller
unit documentation with the machine maintenance manual (M-506).
1. Roll the chiller unit near the right rear corner of
the machine.
2. Cut the cable tie to release temperature probe
wire "A", Figure 1.49, from the chiller unit.
3. Route the temperature probe wire to the right
rear corner of the machine.
4. Insert the temperature probe into fitting "C",
Figure 1.50, and tighten the fitting to secure the
probe.
5. Open control box door "D", Figure 1.51.
6. Connect conduit "F" (cable 500CBL) to the
chiller unit control box.
1-28 M-507C

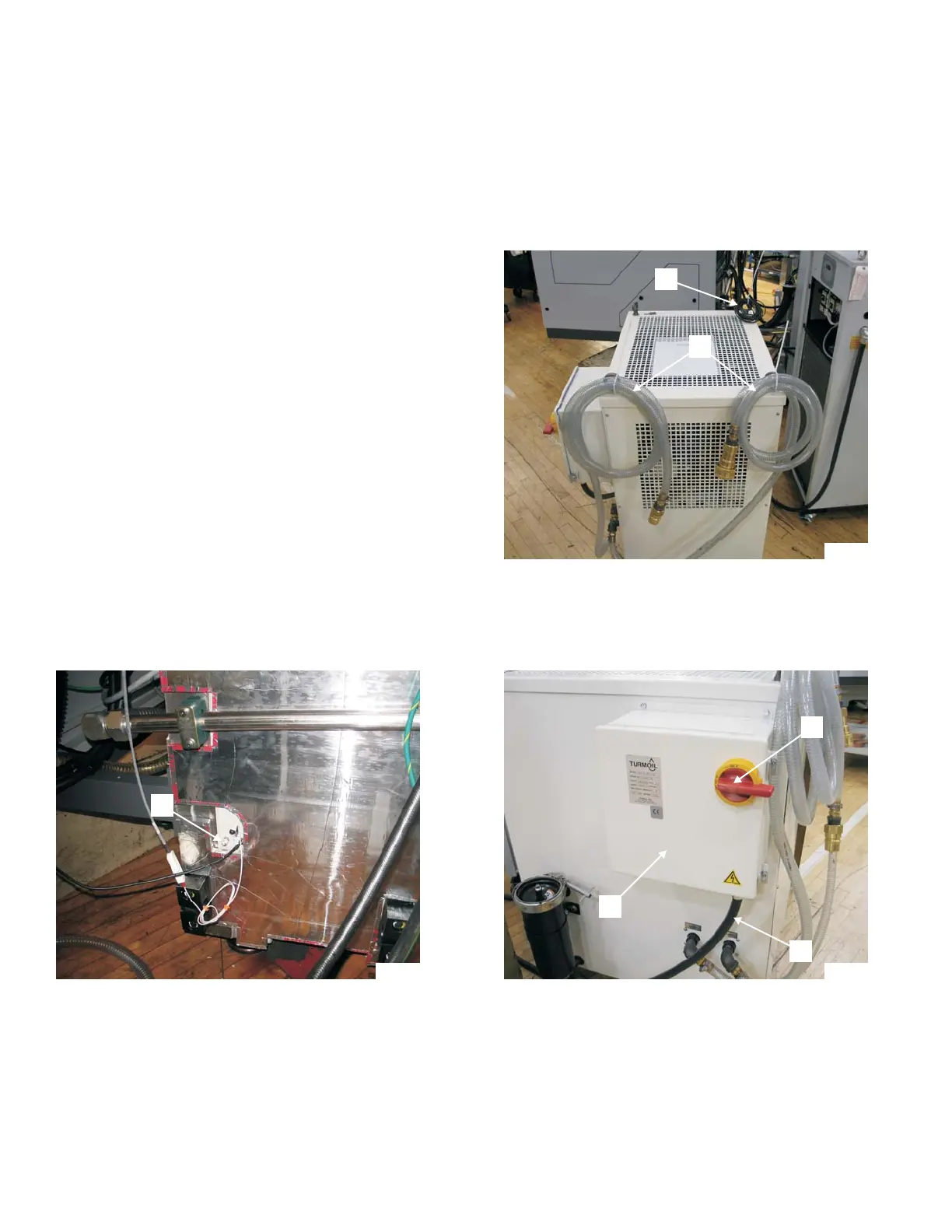

Figure 1.49 - Coolant Chiller Hoses
and Temperature Probe
TP8084
A
B
Figure 1.50 - Temperature Probe
Fitting at Rear of Machine
TP8085
C
Figure 1.51 - Coolant Chiller Control Box
TP8083
D
E
F
